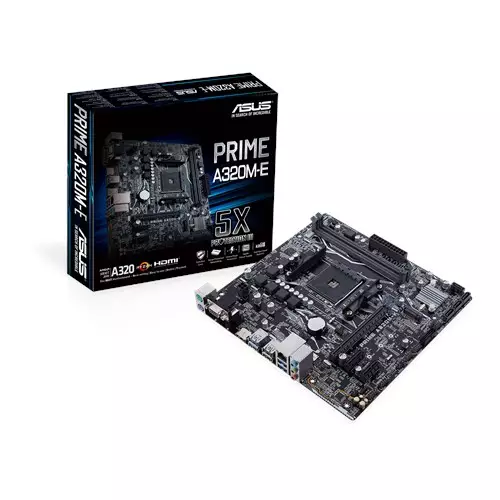

Asus PRIME A320M-E AMD AM4 MicroATX Motherboard

Asus PRIME A320M-E AMD AM4 MicroATX Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506688
Brand : Asus
Model : Asus PRIME A320M-E
Warranty : 3 Years
  • Chipset: AMD A320
  • Supported CPU: Ryzen 2nd Generation
  • LAN: Realtek RTL8111H
  • Audio: Realtek ALC887 8-Channel

SPECIFICATIONS

Processor

Supported CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors

Mainboard

Chipset AMD A320
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Memory

Memory 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

Storage

Supported Storage AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

Graphics

Graphics Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics

Networking & Connectivity

LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio & Microphone

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC

Ports

Slots AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors|
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors|
AMD Athlon™ with Radeon™ Vega Graphics Processors|
AMD A320 chipset
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector
USB AMD A320 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A)
AMD A320 chipset :
4 x USB 2.0 port(s) (4 at mid-board)

Physical Specification

Form Factor mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Warranty Information

Warranty 02 years

DESCRIPTION

Asus PRIME A320M-E AMD

●︎ 5X Protection III: Multiple hardware safeguards for all-round protection

●︎ LED illumination: Lighting control for audio trace paths

●︎ Native M.2: Lightning-fast storage speeds

●︎ Onboard USB 3.1: Latest connectivity for ultrafast 10Gbps transfers

●︎ One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

**2 years warranty.


ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus PRIME A320M-E AMD AM4 MicroATX Motherboard Price in Bangladesh 2026 ?

The Asus Asus PRIME A320M-E Price in BD is 11,500৳ . This Asus PRIME A320M-E AMD AM4 MicroATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Asus PRIME A320M-E by 11,500৳ and its regular price is 16,900৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
