Processor | |
Supported CPU | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
Mainboard | |
Chipset | Intel® H81 |
Memory | |
Memory | 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
Storage | |
Supported Storage | Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 |
Graphics | |
Graphics | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
Audio & Microphone | |
Audio | Realtek ALC887/897 8-Channel High Definition Audio CODEC *2 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
Networking & Connectivity | |
LAN | Realtek® 8111G, 1 x Gigabit LAN Controller(s) |
Ports | |
Slots | 1 x PCIe x16 2 x PCIe 2.0 x1 |
Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |

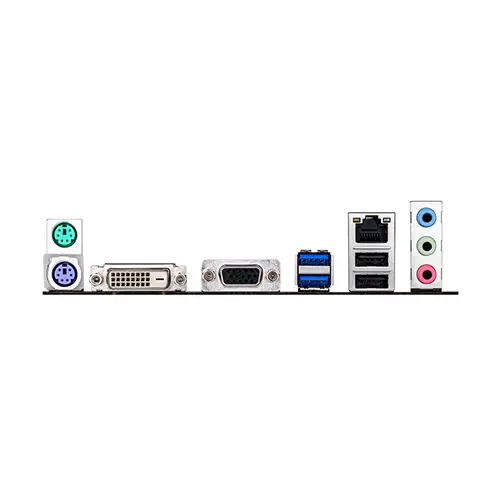

External I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) |
USB | Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
Technical Info | |
BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
Special Features | |
Special Features | ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot |
Physical Specification | |
Form Factor | uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) |
Dimension | 22.6 cm x 17.5 cm |
Warranty Information | |
Warranty | 3 Years |

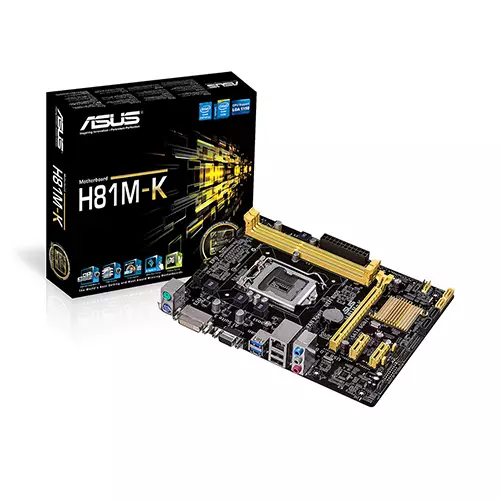

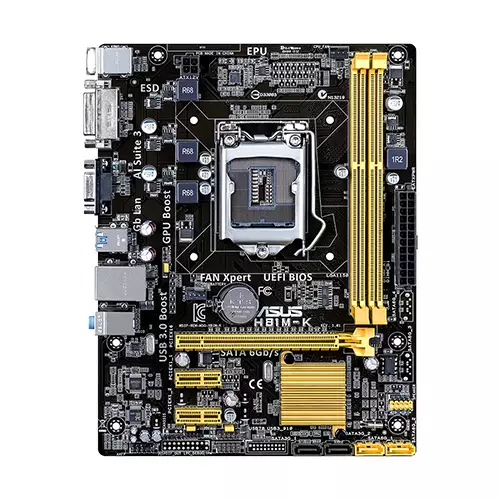

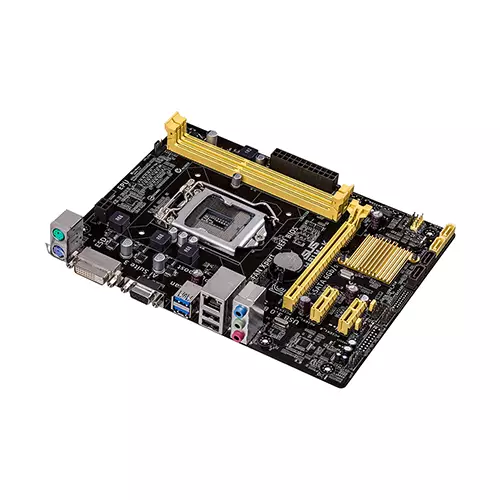

ASUS H81M-K MICRO-ATX H81 4TH GEN INTEL CHIPSET MOTHERBOARD in Bangladesh
The Intel H81 chipset is a single-chipset architecture that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron CPUs on the Asus H81M-K 4th Gen Motherboard. This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 packaging, with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express lanes.It comes with up to two USB 3.0 connections, which can transport data up to ten times quicker than USB 2.0. The Intel® H81 chipset also supports iGPU, allowing customers to take advantage of the newest Intel integrated graphics capability. In Windows 8, ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol). The transmission speed of a USB device can be enhanced by up to 170 percent with USB 3.0 Boost technology, adding to the already fast USB 3.0 performance. Without any user involvement, ASUS software automatically boosts data rates for supported USB 3.0 peripherals. The Asus H81M-K is covered by a three-year guarantee.
Features
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
- AI Suite 3-One-stop access to innovative ASUS features
- GPU Boost-Go to the limit with iGPU level up!
- EPU - All-round energy efficiency and detailed CPU wattage settings
New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.
Q-Slot
Effortless PCI Express component removal
Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you don’t have to struggle with installing or removing even the biggest graphics cards.
ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
