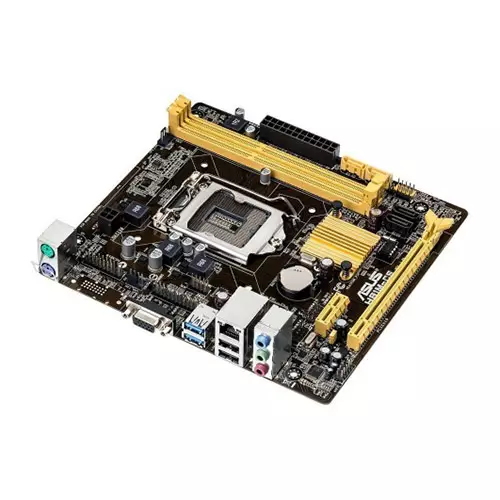

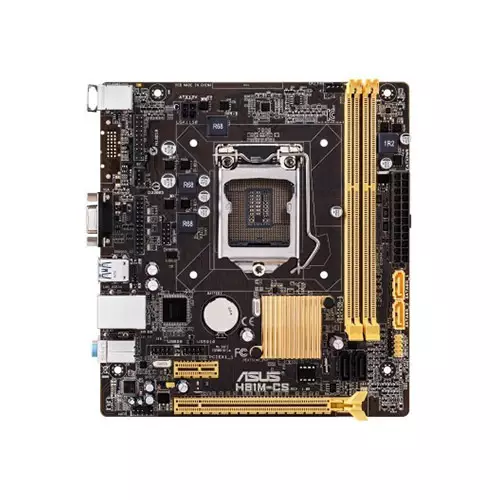

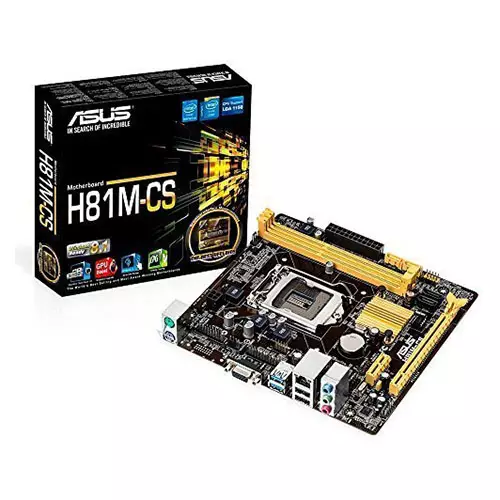

ASUS H81M-CS 4th Gen Intel Motherboard
ASUS H81M-CS 4th Gen Intel Motherboard
ASUS H81M-CS 4th Gen Intel Motherboard - 1
ASUS H81M-CS 4th Gen Intel Motherboard - 2

ASUS H81M-CS 4th Gen Intel Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062880
Brand : Asus
Model : H81M-CS
Warranty : 3 Years
  • Chipset:Intel H81
  • Integrated Graphics
  • LAN:Realtek 8111GR
  • 4th Gen Intel Processors

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Mainboard

Chipset Intel H81
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory

Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Storage

Supported Storage Intel H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology *1

Graphics

Graphics Integrated Graphics Processor
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)

Networking & Connectivity

LAN Realtek 8111GR, 1 x Gigabit LAN Controller(s)

Audio & Microphone

Audio Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Ports

Slots 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Internal I/O Ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Chassis Intrusion connector(s)
USB Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Physical Specification

Form Factor uATX Form Factor
7.5 inch x 7.0 inch ( 19 cm x 17.7 cm )
Dimension 25.6 x 23 x 6.2 cm

Warranty Information

Warranty 03 Years

DESCRIPTION

ASUS H81M-CS 4th Gen Intel Motherboard Overview

Exclusive EZ Mode adds useful info to become even easier.Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.


GPU Boost

Go to the limit with iGPU level up!.GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use.


Q-DIMM

Easy memory removal.Even if you work with a smaller case, plugging in memory is easy with one-sided clips that are right at the edge of the board and always accessible. Just push down on the clip and push or pull RAM modules in or out – couldn’t be simpler


ASUS Boot Setting

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS H81M-CS 4th Gen Intel Motherboard Price in Bangladesh 2026 ?

The Asus H81M-CS Price in BD is 5,100৳ . This ASUS H81M-CS 4th Gen Intel Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus H81M-CS by 5,100৳ and its regular price is 5,800৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
