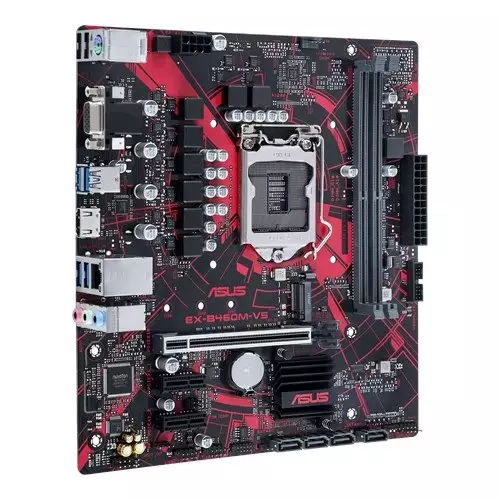

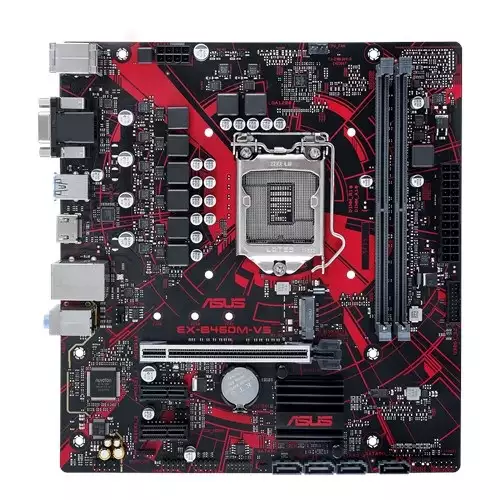

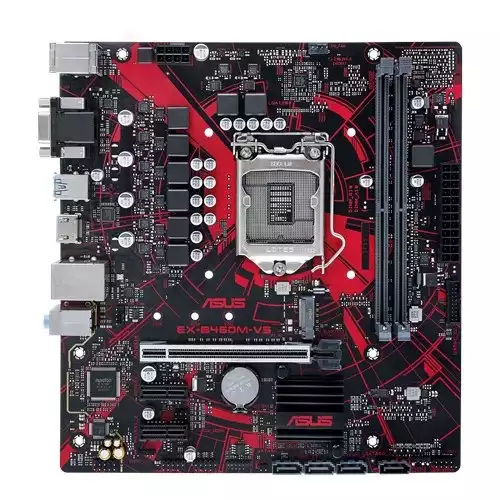

ASUS Expedition EX-B460M-V5 Intel 10th Gen M-ATX Motherboard
- Chipset: Intel B460
- Supported CPU: 10th Gen Intel
- LAN: Realtek RTL8111H
- Audio: Realtek ALC887 7.1-Channel
SPECIFICATIONS
Processor
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Supports CPU up to 125 W
Mainboard
Memory
Supported Memory: 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
10th Gen Intel Corei9/ i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 natively
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Mamory: 64 GB
Storage
Graphics
Multi-VGA output support: HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Networking & Connectivity
ASUS LANGuard
Audio & Microphone
Ports
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Others
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS SafeSlot Core+ - Prevent graphics card damage
- ASUS DIGI+ VRM: Premium components provide better power efficiency
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
Physical Specification
8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Warranty Information
DESCRIPTION
Asus Expedition EX-B460M-V5 Motherboard
ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion, and overvoltages — for immense longevity. We even test them to the limits, with 144 hours of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you! ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and feature to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability. An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé, data centers, and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied. Exclusive USBGuard technology detects voltage changes in real-time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.
