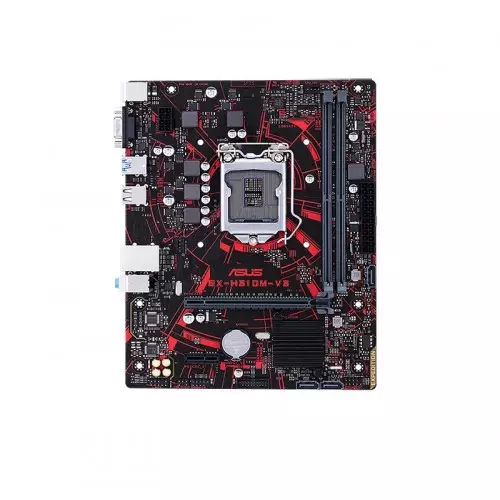

Asus EX-H310M-V3 Micro-ATX Motherboard

Asus EX-H310M-V3 Micro-ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506924
SKU : V3MICROSDJB
Brand : Asus
Model : EX-H310M-V3
Warranty : 3 Years
  • Chipset: Intel® H310
  • Supported CPU: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors ; Sup...
  • LAN: Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode) ; 1 x PCIe 2.0 x1

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors ;
Supports Intel® 14 nm CPU;
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel® H310

Memory

Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory;
Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 1 x PCIe 3.0/2.0 x16 (x16 mode) ;
1 x PCIe 2.0 x1

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support ;
VGA output support : D-Sub port;
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz;
Maximum shared memory of 1024 MB (for iGPU exclusively);
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™;

Networking & Connectivity

LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio & Microphone

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC

Ports

Slots 1 x PCIe 3.0/2.0 x16 (x16 mode) ;
1 x PCIe 2.0 x1
Internal I/O Ports 1 x AAFP connector;
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) ;
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s);
3 x SATA 6Gb/s connector(s);
1 x CPU Fan connector(s) ;
1 x Chassis Fan connector(s);
1 x 24-pin EATX Power connector(s);
1 x 8-pin ATX 12V Power connector(s);
1 x Internal speaker connector(s);
1 x System panel(s) ;
1 x COM Debug header;
1 x Clear CMOS jumper(s);
USB Intel® H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board);
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)

Others

Other Features ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
- ASUS ESD Guards - Enhanced ESD protection
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Top notch audio sensation delivers according to the audio configuration
- Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Physical Specification

Form Factor uATX Form Factor ;
8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )

Warranty Information

Warranty 3 years

DESCRIPTION

EX-H310M-V3

●︎ Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses

●︎ Non-stop durability: Unbeatable features including luminous anti-moisture coating, USBGuard, SafeSlot Core, Stainless-steel back I/O and 5X Protection III

●︎ Non-stop gaming: ASUS Beyond VR ready and Epic audio

●︎ Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more

**3 years warranty.

ASUS Expedition: Ready for non-stop battle

ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!


[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus EX-H310M-V3 Micro-ATX Motherboard Price in Bangladesh 2026 ?

The Asus EX-H310M-V3 Price in BD is 8,300৳ . This Asus EX-H310M-V3 Micro-ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus EX-H310M-V3 by 8,300৳ and its regular price is 8,300৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
