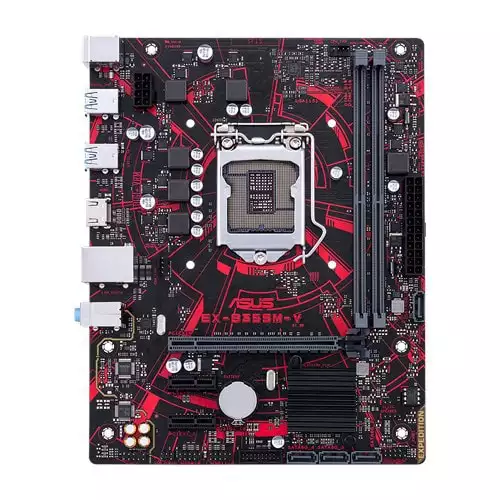

ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard
ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard
ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard - 1
ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard - 2

ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061164
Brand : Asus
Model : EX-B365M-V
Warranty : 3 Years
  • Chipset: Intel® B365
  • Supported CPU: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Suppo...
  • LAN: Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Slots: 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1

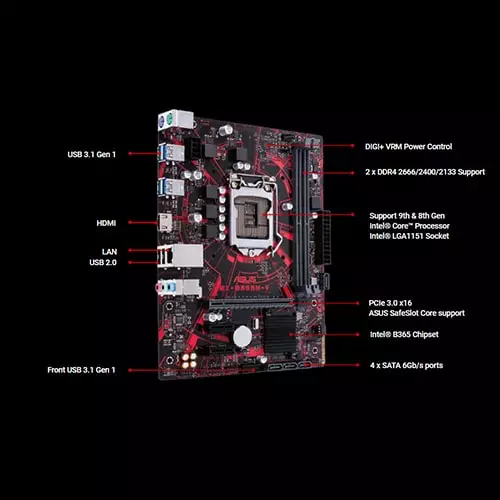

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel® B365
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS

Memory

Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Storage

Supported Storage 4 x SATA 6Gb/s port(s),

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support

Networking & Connectivity

LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio & Microphone

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC

Ports

Slots 1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)

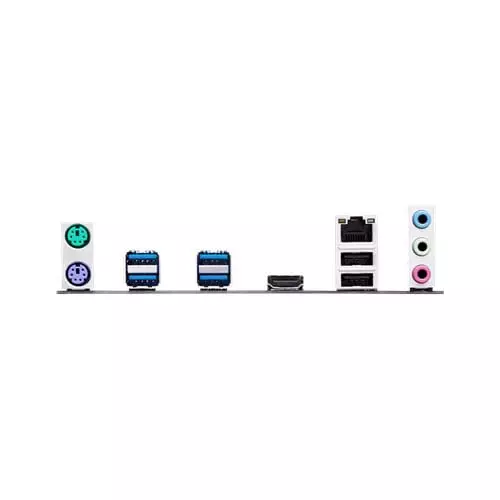

USB Intel® B365 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 2 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
HDMI VGA output support : HDMI port

Others

Other Features ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
- ASUS ESD Guards - Enhanced ESD protection
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Physical Specification

Form Factor mATX Form Factor
8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )

Warranty Information

Warranty 03 years warranty

DESCRIPTION

ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard price in Bangladesh



The ASUS EX-B365M-V5 LGA 1151 mATX Intel Motherboard, available at Techland BD in Bangladesh, is a reliable and high-performance motherboard built to support 8th and 9th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, making it an ideal choice for budget gaming PCs, office desktops, and home systems. Featuring the efficient Intel® B365 chipset, this motherboard ensures stable performance with support for Intel® 14nm CPUs and Intel® Turbo Boost Technology 2.0. It comes equipped with a robust 128Mb UEFI AMI BIOS, offering multilingual support and advanced configuration options, making it user-friendly for both beginners and system builders. The motherboard includes 2 DDR4 DIMM slots supporting up to 32GB of memory, with speeds of 2666/2400/2133 MHz for smooth multitasking and enhanced system responsiveness. For storage needs, the board features four SATA 6Gb/s ports, allowing users to connect SSDs and HDDs easily. Integrated Intel® HD Graphics support provides crisp visuals, ideal for everyday computing and light gaming. Connectivity remains strong with Realtek® RTL8111H Gigabit LAN, ensuring fast and stable networking performance. The audio experience is powered by Realtek® ALC887 8-channel HD audio, offering clear and immersive sound quality. Expansion is made possible through one PCIe 3.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for additional components. The ASUS EX-B365M-V5 also provides abundant USB options, including six USB 3.1 Gen 1 ports and six USB 2.0 ports, ensuring compatibility with a wide range of peripherals. HDMI support allows easy connectivity to modern displays. Equipped with ASUS 5X Protection III, this motherboard ensures superior durability through features like SafeSlot Core, overvoltage protection, DIGI+ VRM, stainless-steel back I/O, and enhanced ESD guards. Additional reliability is offered through anti-moisture coating, USBGuard protection, and premium Japanese audio capacitors designed for better sound and longevity. Its mATX form factor makes it perfect for compact builds without compromising performance. The ASUS EX-B365M-V5 is a durable, feature-rich, and cost-effective motherboard option in Bangladesh, trusted by gamers, professionals, and PC builders for long-lasting stability and efficiency when purchased from Techland BD.
