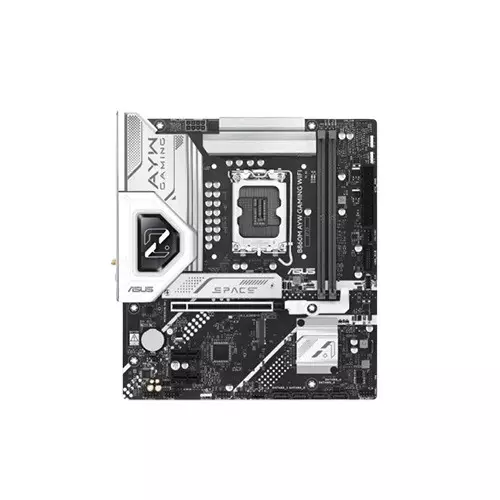

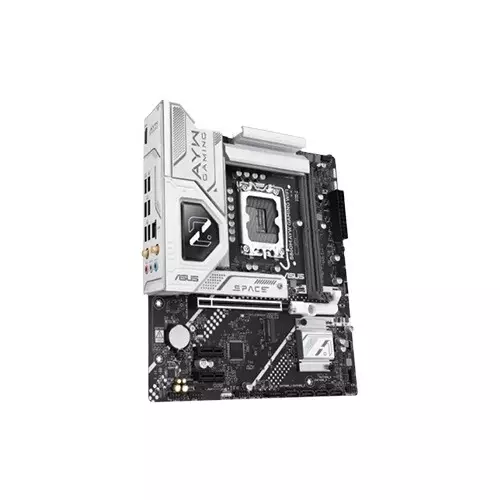

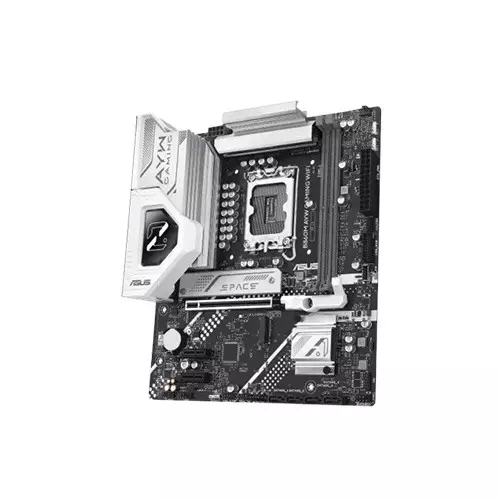

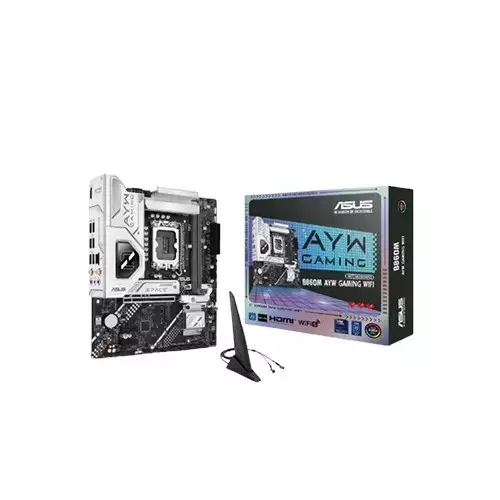

ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 2x DDR5, Max 128GB, Support up to 8800+MT/s (OC)
- Graphics Output: 1 x HDMI, Supports 4K@60Hz as specified in HDMI 2.1
- Features: 2x M.2 Slot, 1 x 2.5Gb LAN, Wi-Fi 6, Bluetooth 5.3
EMI Start From*
SPECIFICATIONS
Processor
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Mainboard
Memory
(CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Storage
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Graphics
1 x HDMITM port
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.
Networking & Connectivity
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3
ASUS LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1
Surround Sound audio output.

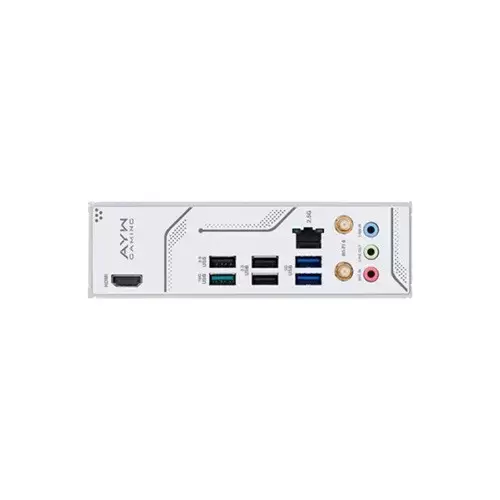

Ports
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)**
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Special Features
- DIGI+VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsinks design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Others
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Physical Specification
Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel B860 Chipset
2 x PCIe 4.0 x1 slots
M.2 Socket
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Technical Info
Warranty Information
DESCRIPTION
ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Motherboard in Bangladesh
ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard provides next-gen performance, powerful connectivity, and advanced cooling capabilities in a compact mATX form factor. This board has the Intel B860 chipset, and it supports Intel Core Ultra Processors (Series 2) through the LGA1851 socket, so it’s great for gamers and PC builders who want fast performance and future-ready tech.
Dual DDR5 DIMM slots and speeds of over 8800+MT/s (OC) allow for up to 128GB RAM to ensure lightning-fast multitasking and intense gaming sessions. PCIe 5.0 M.2 Slot, 2x PCIe 4.0 x1 Slots, 2x M.2 + 4x SATA 6Gb/s Storage Motherboard for High-Speed Data Access and Versatile Expansion.
Connectivity is seamless with Wi-Fi 6 and Bluetooth 5.3, Realtek 2.5Gb Ethernet, and a host of USB ports, including a USB Type-C 5Gbps front connector, perfect for modern builds. It also offers immersive sound experiences with high-fidelity 7.1-channel surround sound audio supported by Realtek codecs. ASUS improves the experience with 5X Protection III, Q-Design features, M.2 heatsinks, and bundled tools such as Armoury Crate, Aura Sync, and Fan Xpert 2+ for complete control of system performance and lighting. Building a powerful rig or upgrading? The ASUS B860M AYW GAMING WIFI is for both, with premium features in a compact package. Now available at Tech Land BD, get this powerful motherboard at the best price in Bangladesh.
Does this motherboard support PCIe 5.0 for faster storage?
Yes, it supports PCIe 5.0 x4 mode on the M.2_1 slot for ultra-fast NVMe SSDs.
Is Wi-Fi built-in or does it require an external adapter?
It comes with built-in Wi-Fi 6 and Bluetooth 5.3, no extra hardware needed.
Can I use DDR4 RAM on this motherboard?
No, it only supports DDR5 memory modules.
