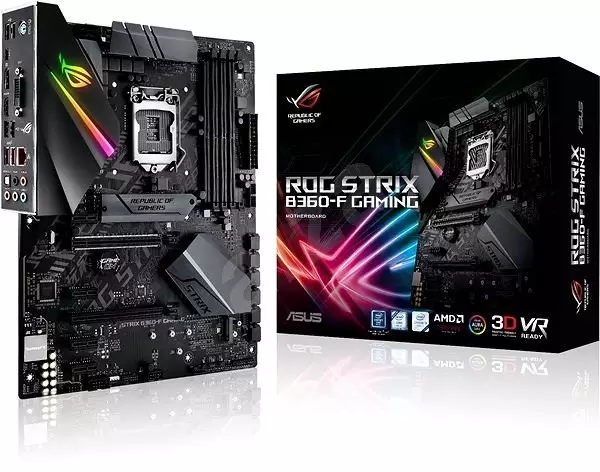

Asus ROG Strix B360-F DDR4 GAMING Motherboard

Asus ROG Strix B360-F DDR4 GAMING Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506817
Brand : Asus
Model : Asus B360-F
Warranty : 3 Years
  • Brand: Asus
  • Name: Asus ROG Strix B360-F DDR4 GAMING Motherboard
  • Model: Asus B360-F

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 1151 for 8th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Mainboard

Chipset Intel® B360
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 Print Screen, , F4 AURA ON/OFF and F9 Search

Memory

Memory Supports Intel® Extreme Memory Profile (XMP)

Storage

Supported Storage 64GB

Graphics

Graphics Integrated Graphics Processor- Intel® HD Graphics support

Networking & Connectivity

LAN 1 x LAN (RJ45) port(s)

Audio & Microphone

Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *6
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Ports

Slots PCI :
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B360 Chipset
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
4 x PCIe 3.0/2.0 x1 *3
M.2 Socket 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Internal I/O Ports 2 x Chassis Fan connector(s)/
1 x AIO_PUMP connector /
1 x 24-pin EATX Power connector(s)/
1 x 8-pin ATX 12V Power connector(s)/
1 x System panel(s) /
1 x 5-pin EXT_FAN(Extension Fan) connector/
1 x Thermal sensor connector(s)/
1 x Clear CMOS jumper(s)/
1 x 14-1 pin TPM connector/
1 x COM port header/
2 x 3D Mount screw port(s)
USB 1 x USB 3.1 Gen 2 (black)USB Type-CTM,
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 2.0

Others

Other Features 1 x M.2 Socket 3

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 years

DESCRIPTION

Asus Rog Strix B360-F GAMING

●︎ LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.

●︎ Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.

●︎ Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

●︎ 3D-printing-friendly design: Dedicated 3D mounts make quick work of fitting 3D-printed parts.

●︎ Onboard M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.

●︎ Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.

●︎ Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.

●︎ Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.

●︎ Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play.

**3 years warranty.

Cyber Outlook



ROG Strix H370F Gaming

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.


PERFORMANCE


Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.



The Intel® B360 is a single-chipset design that supports 8th Generation

Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the B360 chipset provides a maximum of four USB 3.1 Gen 2 ports, two USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel B360 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.



[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG Strix B360-F DDR4 GAMING Motherboard Price in Bangladesh 2026 ?

The Asus Asus B360-F Price in BD is 30,200৳ . This Asus ROG Strix B360-F DDR4 GAMING Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Asus B360-F by 30,200৳ and its regular price is 34,522৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
