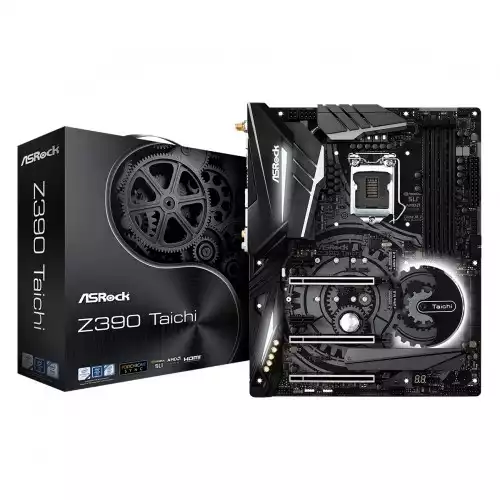

Asrock Z390 Taichi 9th Gen ATX Motherboard
Asrock Z390 Taichi 9th Gen ATX Motherboard

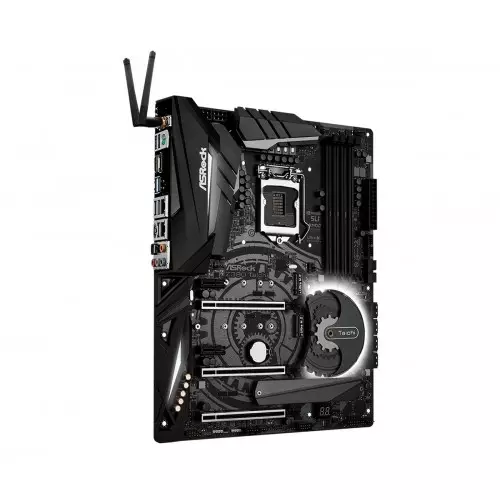

Asrock Z390 Taichi 9th Gen ATX Motherboard - 1

Asrock Z390 Taichi 9th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506821
Brand : ASRock
Model : Asrock Z390 Taichi
Warranty : 3 Years
  • Supports DDR4 4200+(OC)
  • 3 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • NVIDIA Quad SLI,AMD 3-Way CrossFireX
  • Graphics Output Options: HDMI, DisplayPort

SPECIFICATIONS

Processor

Supported CPU - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- IR Digital PWM
- 12 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports ASRock Hyper BCLK Engine II

Mainboard

Chipset Intel® Z390
BIOS - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT Core/Cache, DRAM, VTT DDR, PCH 1.0V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

Memory

Memory 64GB(max);

- Supports DDR4 4200+(OC)/ 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel® Extreme Memory Profile (XMP) 2.0

Storage

Supported Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Graphics

Graphics Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Networking & Connectivity

LAN - Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Audio & Microphone

Audio 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

Ports

Slots PCI:
- 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))*
- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™
-15μ Gold Contact in VGA PCIe Slot (PCIE2)

M.2 Socket:
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Internal I/O Ports - 1 x TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM1562 Retimer)
- 1 x Performance Mode / Easy OC Header
- 1 x Dr. Debug with LED
USB - 3 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)
HDMI 1 x HDMI Port

Physical Specification

Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Warranty Information

Warranty 03 years

DESCRIPTION

ASUS Z390 Taichi

●︎ Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)

●︎ IR Digital PWM, 12 Power Phase design

●︎ Supports DDR4 4200+(OC)

●︎ 3 PCIe 3.0 x16, 2 PCIe 3.0 x1

●︎ NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™

●︎ Graphics Output Options: HDMI, DisplayPort

●︎ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)

●︎ Supports Purity Sound™ 4 & DTS Connect

●︎ 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)

●︎ 5 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A)

●︎ 8 USB 3.1 Gen1 (4 Front, 4 Rear)

●︎ Dual Intel® Gigabit LAN

●︎ Intel® 802.11ac WiFi + BT 4.2

●︎ Polychrome RGB SYNC

●︎ Hyper BCLK Engine II

**3 years warranty.

Fully Supports 9th Gen Intel® Core Processors

The motherboard is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.
