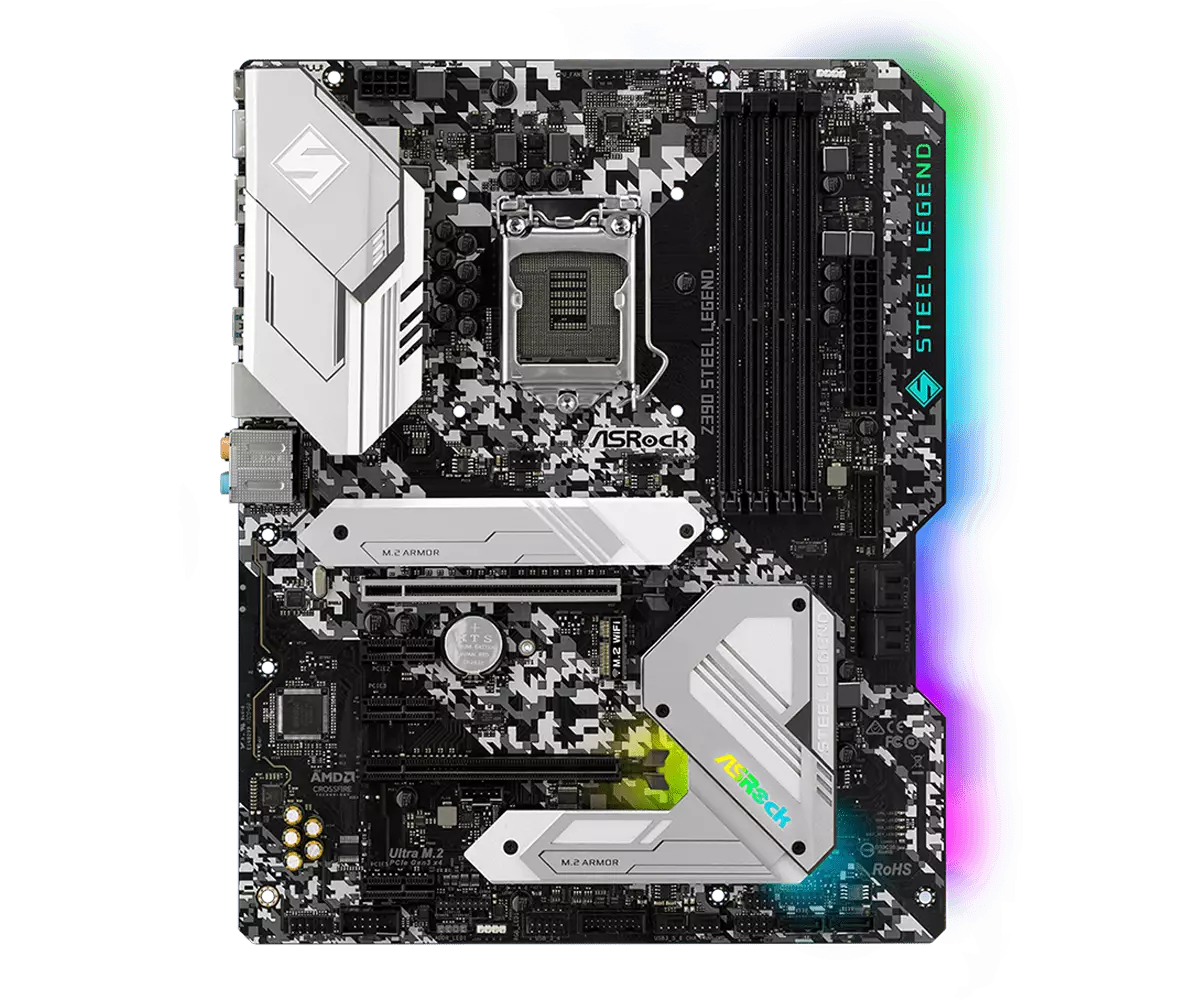

ASRock Z390 Steel Legend 9th Gen ATX Motherboard

ASRock Z390 Steel Legend 9th Gen ATX Motherboard
ASRock Z390 Steel Legend 9th Gen ATX Motherboard
ASRock Z390 Steel Legend 9th Gen ATX Motherboard
Out Of Stock
ASRock Z390 Steel Legend 9th Gen ATX Motherboard
ASRock Z390 Steel Legend 9th Gen ATX Motherboard
ASRock Z390 Steel Legend 9th Gen ATX Motherboard
ASRock Z390 Steel Legend 9th Gen ATX Motherboard
Stock Status
Out Of Stock
Product ID
9786
Product SKU
AR-Z390-SL-I-MB
Brand
ASRock
Product modelZ390 Steel Legend
Warranty 3 years
Total Reviews
Short Description
  • Supports 9th and 8th Gen Intel
  • Supports DDR4 4266MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • AMD Quad CrossFireX and CrossFireX
    • Stock availability is subject to change. Please confirm availability before shopping by calling us.
    • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
    • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
    • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
    Processor
    Supported CPU - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking
    Mainboard
    Chipset - Intel® Z390
    Memory
    Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
    Graphics
    Graphics Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
    Audio & Microphone
    Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 110dB SNR DAC with Differential Amplifier - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks
    Networking & Connectivity
    LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
    Ports
    Slots - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
    Internal I/O Ports - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

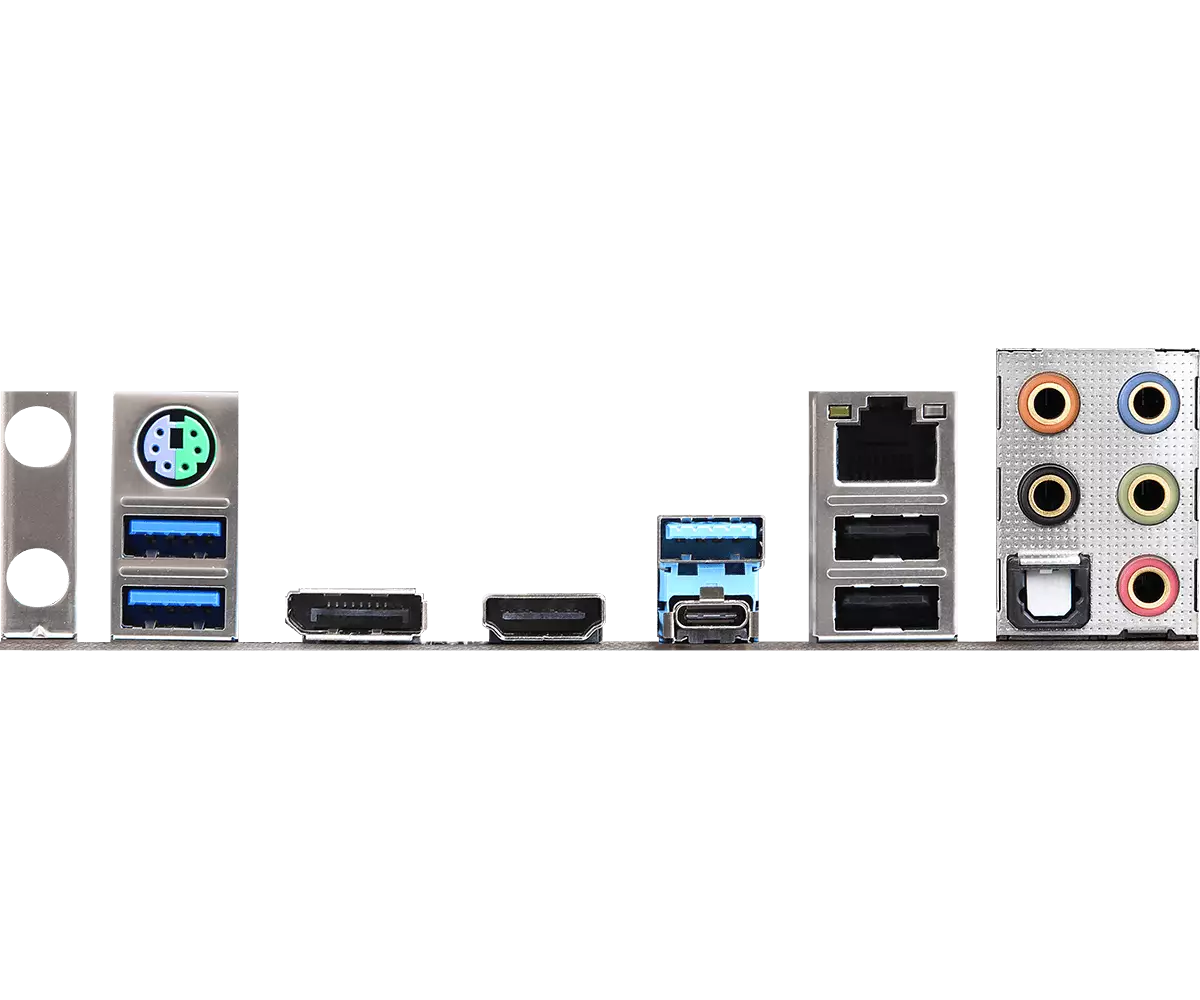

    USB - 1 x Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Intel® Z390) (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
    Technical Info
    BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment
    Physical Specification
    Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    Others
    Other Features ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Shaped PCB Design - Matte Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop

    Z390 Steel Legend

    Features:

    ●︎ Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)

    ●︎ Supports DDR4 4266MHz+ (OC)

    ●︎ 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi

    ●︎ AMD Quad CrossFireX™ and CrossFireX™

    ●︎ Graphics Output: DisplayPort, HDMI

    ●︎ 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nichicon Fine Gold Series Audio Caps

    ●︎ 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

    ●︎ 2 USB 3.2 Gen2 (Rear Type A+C)

    ●︎ 6 USB 3.2 Gen1 (4 Front, 2 Rear)

    ●︎ Intel® Gigabit LAN

    ●︎ Polychrome RGB SYNC

    **02 years warranty.

    ASRock Z390 Steel Legend Motherboard

    The ASRock Steel Legend Motherboard is built on the INTEL Z390 chipset, This ASRock Z390 Motherboard supporting 8th and 9th Gen generation Intel processors with an 1151 socket. ASRock Steel Legend motherboard has four memory slots for up to 128GB of dual-channel DDR4 RAM, ASRock X570 Motherboard can be overclocked to up to 4666 MHz. For storage, it's equipped with eight SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards and three PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet and Realtek ALC1220 7.1-channel HD audio. Users can install an optional M.2 E-key module for Wi-Fi and Bluetooth connectivity.

    ASRock Steel Legend Motherboard represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the ASRock Steel Legend Motherboard series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. ASRock Z390 Motherboard that fulfills every task – with style! Click here for more motherboard..


    Dual USB 3.2 Gen2 (Type-A + Type-C)

    This ASRock Z390 Motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next-generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

    2 FULL COVERAGE M.2 ARMOR

    Dual massive full coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always working at its best.

    PREMIUM 60A POWER CHOKE

    ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.


    PCI-E STEEL SLOT

    The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.


    A-Tuning

    A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.


    M.2 (KEY E) For WiFi

    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.




    [product_table id="34" limit="10" type="filter" filter_category="6079"]

    Review

    Get specific details about this product from customers who own it.

    What is the ASRock Z390 Steel Legend 9th Gen ATX Motherboard Price in Bangladesh 2024?

    The ASRock Z390 Steel Legend Price in BD is 0৳ in Today's 2024-03-28 Market. This ASRock Z390 Steel Legend 9th Gen ATX Motherboard Manufacturing by ASRock Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock Z390 Steel Legend by 0৳ Which is also Out Of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
