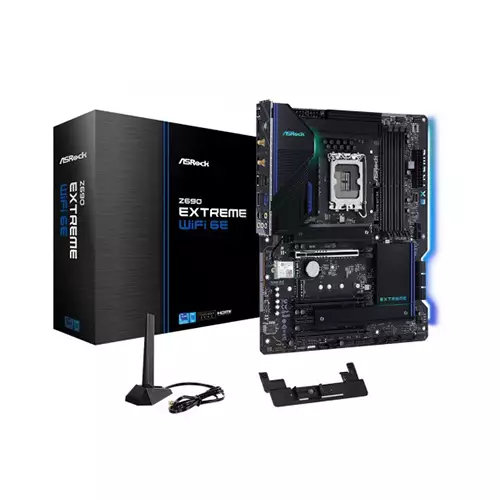

ASRock Z690 Extreme WiFi 6E 12th Gen ATX Motherborad
ASRock Z690 Extreme WiFi 6E 12th Gen ATX Motherborad

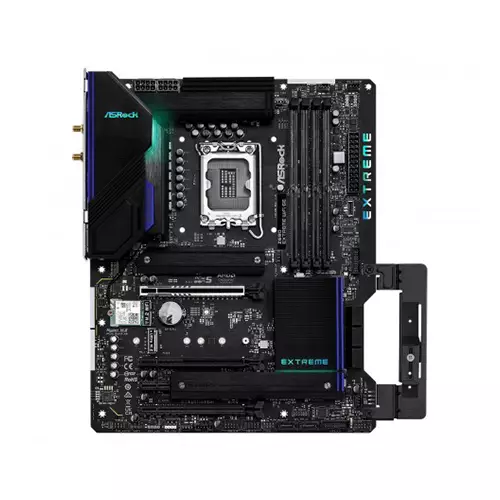

ASRock Z690 Extreme WiFi 6E 12th Gen ATX Motherborad - 1
ASRock Z690 Extreme WiFi 6E 12th Gen ATX Motherborad - 2

ASRock Z690 Extreme WiFi 6E 12th Gen ATX Motherborad

0 Reviews
Stock : Discontinued
PID : P00025064190
Brand : ASRock
Model : Z690 Extreme WiFi 6E
Warranty : 3 Years
  • Supports 12th Gen Intel Processors
  • 13 Phase SPS Dr.MOS Power Design
  • Supports DDR4 5000MHz (OC)
  • Graphics Output: HDMI, DisplayPort

SPECIFICATIONS

Processor

Supported CPU - Supports 12th Gen Intel Core Processors (LGA1700)

- Digi Power design

- 13 Power Phase design

- Supports Intel Hybrid Technology

- Supports Intel Turbo Boost Max 3.0 Technology

Mainboard

Chipset Intel Z690
BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Memory

Memory Type: DDR4

Slots: 4 x DDR4 DIMM Slots

Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)


Supports ECC UDIMM memory modules (operate in non-ECC mode)

Supports Intel Extreme Memory Profile (XMP) 2.0

- 15μ Gold Contact in DIMM Slots

Maximum Memory: 128GB

Storage

Supported Storage - 8 x SATA3 6.0 Gb/s Connectors

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/ 2242/ 2260/ 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode

Graphics

Graphics - Intel Xe Graphics Architecture (Gen 12)

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @60Hz / 5K (5120x3200) @120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports UEFI PXE

Wireless LAN

- Supports IEEE 802.11a/b/g/n/ax

- Supports Dual-Band 2x2 160MHz with extended 6GHz band support

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth + High speed class II

- Supports MU-MIMO

Audio & Microphone

Audio - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Ports

Slots PCI

- 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4))

- 1 x PCIe Gen3x1 Slot

- Supports AMD CrossFire

M.2 Socket

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Internal I/O Ports - 2 x Antenna Ports

- 1 x PS/2 Mouse/Keyboard Port

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- 1 x BIOS Flashback Button
USB - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
HDMI 1 x HDMI Port

Physical Specification

Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- Solid Capacitor design

- 2oz Copper PCB

Warranty Information

Warranty 3 years

DESCRIPTION

ASRock Z690 Extreme WiFi 6E Motherborad

The ASRock Z690 Extreme WiFi 6E motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. ASRock Z690 Extreme WiFi 6E motherboard comes with 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 USB 3.2 Gen2x2 Front Type-C, 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Rear, 4 Front), Dragon 2.5G LAN, Intel Gigabit LAN 802.11ax (WiFi 6E) & Bluetooth. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. Here, the USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. In this ASRock Z690 Extreme WiFi 6E motherboard, the USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. In this 12th Gen ASRock Z690 Extreme WiFi 6E motherboard, the intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet. The Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. In this ASRock Z690 Extreme WiFi 6E motherboard, the WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic.
