- PCIe 4.0 High-Speed M.2 Solution
- 6 Layer PCB
- Post Status Checker
- LIGHTING WAY - POLYCHROME RGB
SPECIFICATIONS
Processor
Digi Power design
12 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel K-Series unlocked CPUs
Mainboard
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCIO, VCCIO1 2,VCCST, VCCSA Voltage Multi-adjustment
Memory
Slots 4 x DDR4 DIMM Slots
Supported Memory - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Mamory Max. capacity of system memory: 128GB
Storage
1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
Networking & Connectivity
Audio & Microphone
1 x Front Panel Audio Connector
Rear Panel I/O
HD Audio Jacks: Line in / Front Speaker / Microphone
Ports
2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE4))
10th Gen Intel Core Processors
2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE4))
2 x PCI Express 3.0 x1 Slots
Supports AMD Quad CrossFireX and CrossFireX
M.2 Socket - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

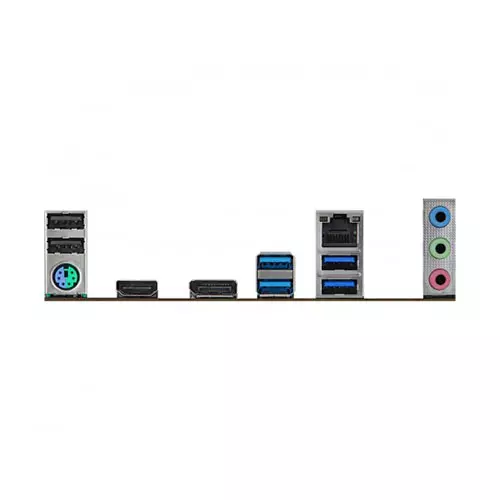

Rear Panel I/O:
2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
Physical Specification
Solid Capacitor design
Warranty Information
DESCRIPTION

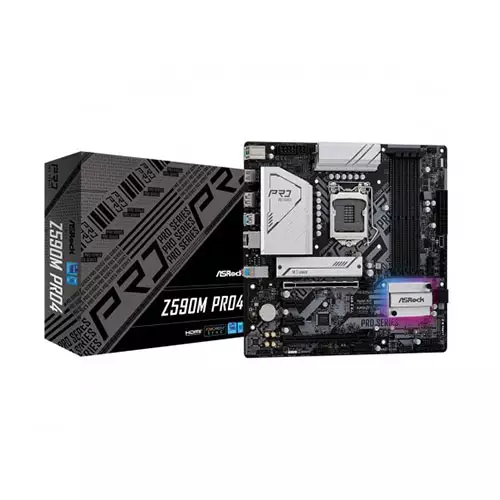

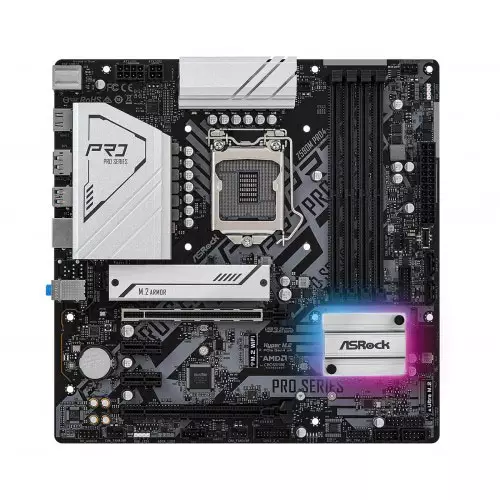

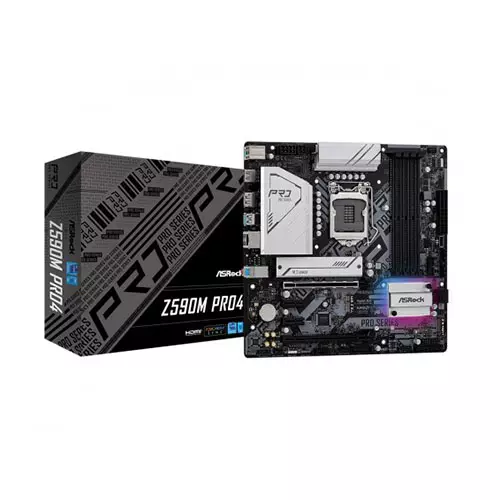

ASRock Z590M Pro4 Motherboard
Premium 50A Power Choke
ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, Compared to traditional chokes, thus providing enhanced and improved Vcore voltage to the motherboard.
PCIe 4.0 High Speed M.2 Solution
This ASRock Z590M Pro4 Motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD and also capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
6 Layer PCB
In this ASRock Z590M Pro4 Motherboard, the 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking. Thus, it's also able to support the latest DDR4 memory modules with most extreme memory performance.
Reinforced Steel Slot [PCIe 4.0 Version]
In this ASRock Z590M Pro4 Motherboard, the reinforced steel slot comes with the next-generation PCI Express 4.0 standard. The various benefits include, like- Extra anchor points, Stronger latch, Ensure signal stability, Make sure heavy graphics cards to be well-installed.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock Z590M Pro4 Motherboard delivers stunning performance and superior aesthetics to rule your own colorful lighting way. They offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
Post Status Checker
This ASRock Z590M Pro4 Motherboard comes with an easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem.
Water Pump Header & Full Spike Protection
This is supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. You can also adjust the voltage of water pump to get higher cooling performance with lower noise. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by unexpected voltage spikes. Some sensitive digital components on the ASRock Z590M Pro4 Motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately.
