ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard
ASRock B760M PG Lightning DDR5 14th/13th/12th Gen Micro ATX Motherboard
ASROCK B760 PRO RS DDR5 12TH & 13TH GEN ATX MOTHERBOARD
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock Z590M Phantom Gaming 4 10th and 11th Gen Motherboard
- Chipset Intel Z590
- Supports 10th & 11th Gen
- Dual Channel DDR4 Memory
- Gigabit LAN 10/100/1000 Mb/s
SPECIFICATIONS
Processor
Digi Power design
8 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel K-Series unlocked CPUs
Mainboard
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCIO, VCCIO,VCCST, VCCSA Voltage Multi-adjustment
Memory
Slots 4 x DDR4 DIMM Slots
Supported Memory - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Mamory Max. capacity of system memory: 128GB
Storage
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Graphics
Digi Power design
8 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel K-Series unlocked CPUs
Networking & Connectivity
Giga PHY Intel I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Audio & Microphone
Supports Surge Protection
Nahimic Audio
Ports
1 x PCI Express 4.0 x16 Slot (PCIE1
10th Gen Intel Core Processors
1 x PCI Express 3.0 x16 Slot (PCIE1)
1 x PCI Express 3.0 x4 Slot
1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
M.2 Socket - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

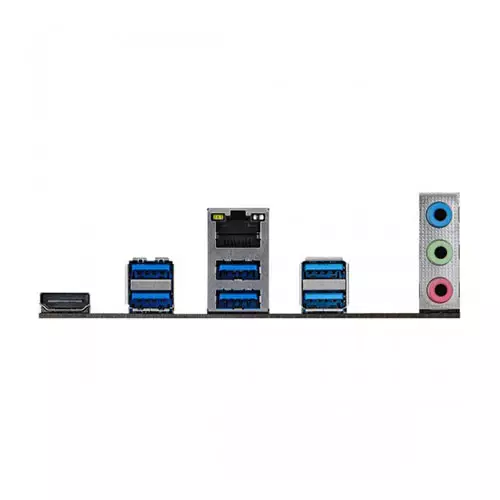

4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Physical Specification
Solid Capacitor design
Warranty Information
DESCRIPTION

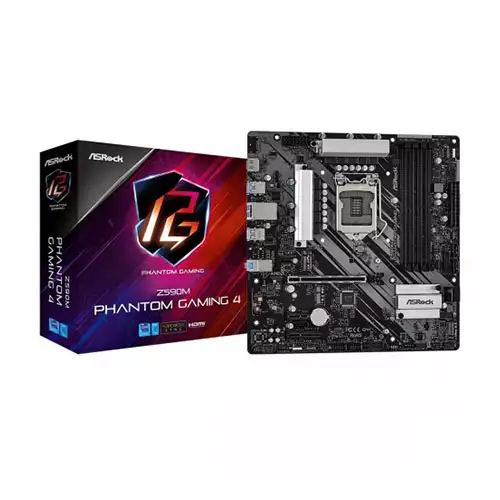

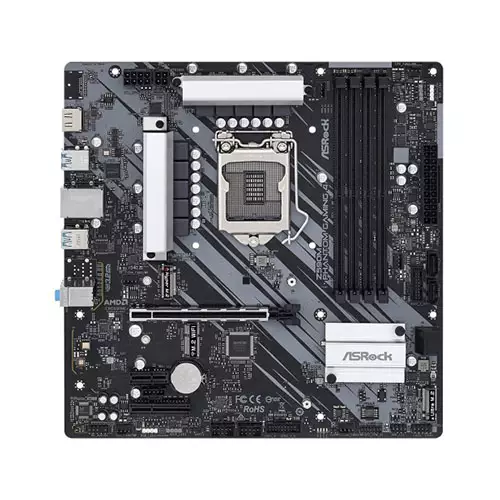

ASRock Z590M Phantom Gaming 4 Motherboard
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming-oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Power Phase Design
It features sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance at the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Base Frequency Boost (BFB) Technology
Whoever said that only K series CPUs and the Z-family platform are capable of performing with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
2 x USB3.2 Gen2
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the ASRock Z590M Phantom Gaming 4 10th and 11th Gen Motherboard Price in Bangladesh 2026 ?
