Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
Digi Power design
14 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel K-Series unlocked CPUs
Supports ASRock Hyper BCLK Engine III

Intel Z590

128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, DRAM(VCCM, VPPM, VTT), VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO_0, VCCIO_1_2, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM Slots
Supported Memory - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
Maximum Mamory Max. capacity of system memory: 128GB

6 x SATA3 6.0 Gb/s Connectors
2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Three graphics output options: 1 x HDMI and 2 x Intel Thunderbolt 4
- Supports Triple Monitor
- Supports Intel Thunderbolt 4 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 and Intel Thunderbolt 4 Ports

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
Supports Killer LAN Software
Supports Killer DoubleShot Pro
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE.

Wireless LAN:

Killer AX1675x 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.2 + High-speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
WIMA Audio Capacitors (For Front Outputs)
- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
- Pure Power-In
- Direct Drive Technology
PCB Isolate Shielding
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
15μ Gold Audio Connector
Nahimic Audio

PCI 11th Gen Intel Core Processors
3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE2); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE2) / Gen3x4 (PCIE4))*
10th Gen Intel Core Processors
3 x PCI Express x16 Slots (PCIE1/ PCIE2/ PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE2); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE2) / Gen3x4 (PCIE4))
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED

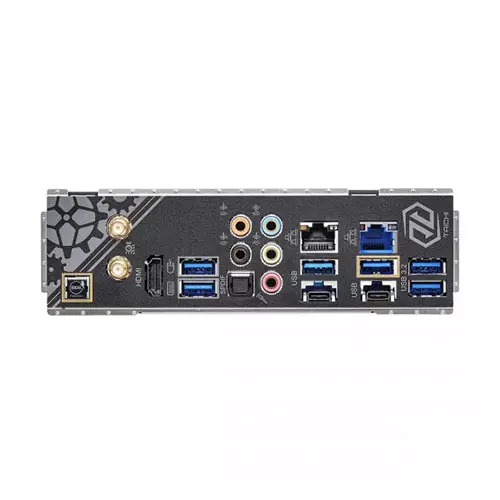

HDMI 1 x HDMI Port

2 x USB 4.0 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

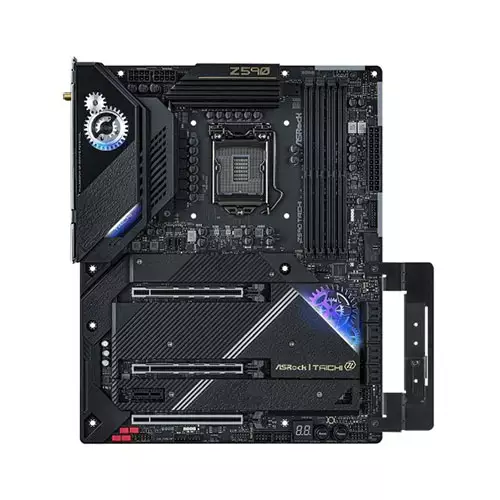

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB
2oz Copper PCB

03 Years
