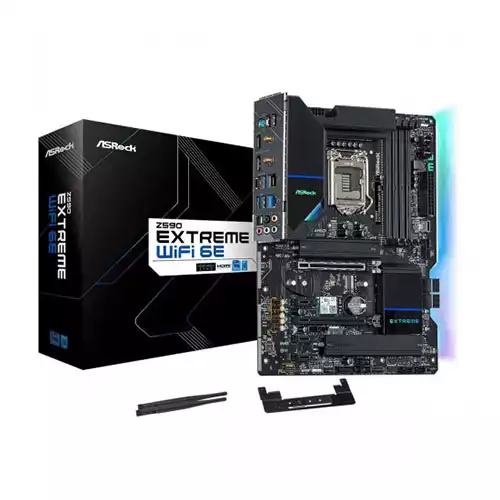

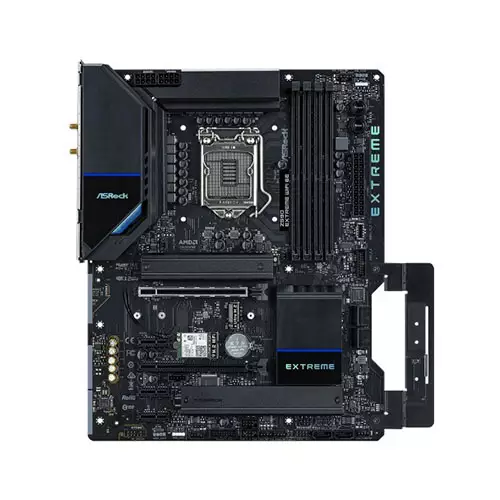

ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard
ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard
ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard - 1
ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard - 2

ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062727
Brand : ASRock
Model : Z590 Extreme Wi-Fi 6E
Warranty : 3 Years
  • Supports 10th & 11th Gen
  • Chipset Intel Z590
  • Dual Channel DDR4 Memory
  • 7.1 CH HD Audio

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
Digi Power design
14 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel K-Series unlocked CPUs

Mainboard

Chipset Intel Z590
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment

Memory

Memory Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM Slots
Supported Memory - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
Maximum Mamory Max. capacity of system memory: 128GB

Storage

Supported Storage 6 x SATA3 6.0 Gb/s Connectors
1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Graphics

Graphics 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

Networking & Connectivity

LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
Supports PXE
1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Audio & Microphone

Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
Pure Power-In
- Direct Drive Technology
PCB Isolate Shielding
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
15μ Gold Audio Connector
Nahimic Audio

Ports

Slots PCI 11th Gen Intel Core Processors
2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
10th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))
3 x PCI Express 3.0 x1 Slots
Supports AMD Quad CrossFireX and CrossFireX
1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module
15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Internal I/O Ports - 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
- 1 x Power Button with LED
- 1 x Reset Button with LED
External I/O Ports HDMI 1 x HDMI Port
Display Port (s) 1 x DisplayPort 1.4
USB 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)

Physical Specification

Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB

Warranty Information

Warranty 03 Years

DESCRIPTION

ASRock Z590 Extreme Wi-Fi 6E Motherboard

The simplicity and minimalist tones make Extreme Wi-Fi 6E  stands out from other motherboards, embracing the feelings and thoughts of all DIYers. Offering way more than what normal enthusiasts or gamers bargained for. Z590 Extreme Wi-Fi 6E supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors, 14 Phase Dr.MOS Power Design, DDR4 4800MHz (OC), 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio, Graphics Output Options: HDMI,, 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. For using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming so that each sound is properly positioned in 360° on a radar for a full immersion during the game. This ASRock Z590 Extreme Wi-Fi 6E Motherboard comes with Dual Graphics Outputs - HDMI + DisplayPort combo, you have more graphics output options now. And also this ASRock Z590 Extreme Wi-Fi 6E Motherboard also supports with the most recent HDMI 4K 60Hz graphics output specification. This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard Price in Bangladesh 2026 ?

The ASRock Z590 Extreme Wi-Fi 6E Price in BD is 44,440৳ . This ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard Manufacturing by ASRock Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock Z590 Extreme Wi-Fi 6E by 44,440৳ and its regular price is 55,550৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
