ASRock Z490 Pro4 10th Gen Motherboard

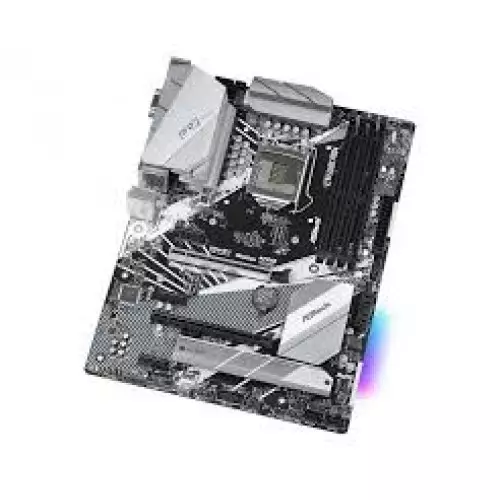

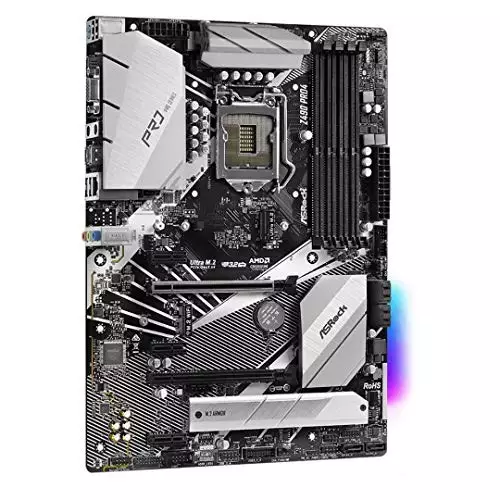

ASRock Z490 Pro4 10th Gen Motherboard ASRock Z490 Pro4 10th Gen Motherboard - 1 ASRock Z490 Pro4 10th Gen Motherboard - 2

ASRock Z490 Pro4 10th Gen Motherboard

Stock : Discontinued
PID : P00025061786
Brand : ASRock
Model : Z490 Pro4
Warranty : 3 Years
★ ★ ★ ★ ★
0 Reviews
  • Chipset Intel Z490
  • Supports 10th Gen
  • Dual Channel DDR4
  • Premium Blu-ray Audio

    • ASROCK Z490 Pro4 MOTHERBOARD

    CPU

    • - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
    • - Digi Power design
    • - 10 Power Phase design
    • - Supports Intel® Turbo Boost Max 3.0 Technology
    • - Supports Intel® K-Series unlocked CPUs
    • - Supports ASRock BCLK Full-range Overclocking
    Chipset
    •  Intel® Z490
    Memory

    • - Dual Channel DDR4 Memory Technology
    • - 4 x DDR4 DIMM Slots
    • - Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    • - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    • - Max. capacity of system memory: 128GB**
    • - Supports Intel® Extreme Memory Profile (XMP) 2.0
    • - 15μ Gold Contact in DIMM Slots
    Graphics

    • - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
    • - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    • - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
    • - Dual graphics output: support HDMI and D-Sub ports by independent display controllers
    • - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    • - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    • - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    • - Supports HDCP 2.3 with HDMI 1.4 Port
    • - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

    • *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    • **VP9 10bit and VC-1 are for decode only.
    • VP8 and VP9 encode are not supported by Windows® OS.
    Audio

    • - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    • - Premium Blu-ray Audio support
    • - Supports Surge Protection
    • - PCB Isolate Shielding
    • - Individual PCB Layers for R/L Audio Channel
    • - Nahimic Audio
    LAN

    • - Gigabit LAN 10/100/1000 Mb/s
    • - Giga PHY Intel® I219V
    • - Supports Wake-On-LAN
    • - Supports Lightning/ESD Protection
    • - Supports Energy Efficient Ethernet 802.3az
    • - Supports PXE
    Slots

    • - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)*
    • - 3 x PCI Express 3.0 x1 Slots
    • - Supports AMD Quad CrossFireX™ and CrossFireX™
    • - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

    • *Supports NVMe SSD as boot disks
    Software and UEFI

    • Software
    • - ASRock Motherboard Utility (A-Tuning)
    • - ASRock Polychrome SYNC
    • - ASRock XFast LAN
    • UEFI
    • - ASRock EZ Mode
    • - ASRock Full HD UEFI
    • - ASRock My Favorites in UEFI
    • - ASRock Instant Flash
    • - ASRock Internet Flash
    • - ASRock Easy RAID Installer
    Storage Interface

    • - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    • - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    • - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    • *If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
    • If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
    • If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.

    • **Supports Intel® Optane™ Technology
    • Supports NVMe SSD as boot disks
    • Supports ASRock U.2 Kit
    Support CD
    • - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
    Connectors

    • - 1 x COM Port Header
    • - 1 x SPI TPM Header
    • - 1 x Power LED and Speaker Header
    • - 2 x RGB LED Headers*
    • - 2 x Addressable LED Headers**
    • - 1 x CPU Fan Connector (4-pin)***
    • - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    • - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    • - 1 x 24 pin ATX Power Connector
    • - 1 x 8 pin 12V Power Connector
    • - 1 x 4 pin 12V Power Connector
    • - 1 x Front Panel Audio Connector
    • - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
    • - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    • - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

    • *Support in total up to 12V/3A, 36W LED Strip

    • **Support in total up to 5V/3A, 15W LED Strip

    • ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    • ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    • *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power
    Rare Panel I/O

    • - 2 x Antenna Mounting Points
    • - 1 x PS/2 Mouse/Keyboard Port
    • - 1 x D-Sub Port
    • - 1 x HDMI Port
    • - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    • - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    • - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    • - 2 x USB 2.0 Ports (Supports ESD Protection)
    • - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • - HD Audio Jacks: Line in / Front Speaker / Microphone
    Accessories


    • - Quick Installation Guide, Support CD, I/O Shield
    • - 2 x SATA Data Cables
    • - 3 x Screws for M.2 Sockets
    • - 1 x Standoff for M.2 Socket
    H/W Monitoring

    • - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO
    BIOS

    • - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    • - ACPI 6.0 Compliant wake up events
    • - SMBIOS 2.7 Support
    • - CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
    Unique Features

    • ASRock USB 3.2 Gen2
    • - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    • - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    • ASRock Super Alloy
    • - Premium 50A Power Choke
    • - Sapphire Black PCB
    • - High Density Glass Fabric PCB
    • ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    • ASRock Steel Slots
    • ASRock Full Coverage M.2 Heatsink
    • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    • ASRock Live Update & APP Shop
    Operating System
    • Support for Windows 10 64-bit

    Form Factor


    • - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
    • - Solid Capacitor design
    ASRock Z490 Pro4 Motherboard Comes with 03 years Warranty.

    ASROCK Z490 Pro4 Motherboard

    • Supports 10th Gen Intel® Core™ processors (Socket 1200)
    • 10 Power Phase Design
    • Supports DDR4 4400MHz+ (OC)
    • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2(Key E) For WiFi
    • AMD Quad CrossFireX™ and CrossFireX™
    • Graphics Output Options: HDMI, D-Sub
    • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
    • 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • 2 USB 3.2 Gen2 (Rear Type-A+C), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
    • Intel® Gigabit LAN

    Base Frequency Boost (BFB) Technology

    Whoever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non-K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. While ASRock BFB breathes life into non-K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

    RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

    ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

    Dual USB 3.2 Gen2 (Type-A + Type-C)

    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next-generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

    M.2 (KEY E) For WiFi

    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.



    [product_table id="34" limit="10" type="filter" filter_category="6079"]

    What is the ASRock Z490 Pro4 10th Gen Motherboard Price in Bangladesh 2026 ?

    The ASRock Z490 Pro4 Price in BD is 22,500৳ . This ASRock Z490 Pro4 10th Gen Motherboard Manufacturing by ASRock Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock Z490 Pro4 by 22,500৳ and its regular price is 23,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
