Save : ৳ 1,000

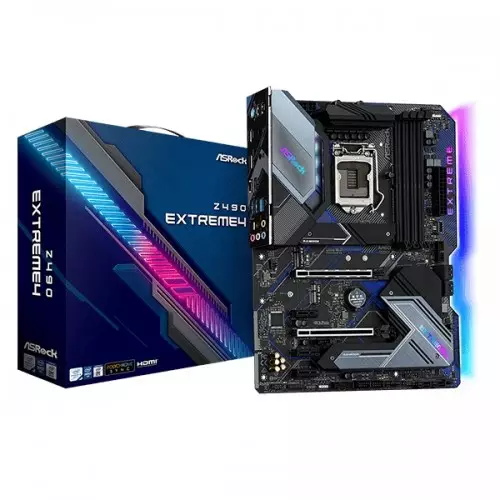

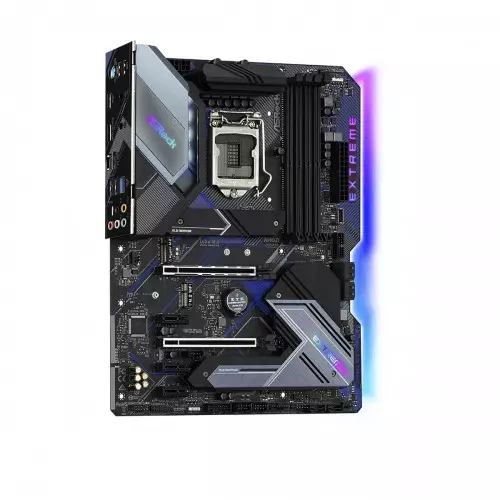

ASRock Z490 Extreme4 10th Gen Intel Motherboard
ASRock Z490 Extreme4 10th Gen Intel Motherboard-cover-thumbnail ASRock Z490 Extreme4 10th Gen Intel Motherboard-gallery-1

ASRock Z490 Extreme4 10th Gen Intel Motherboard

Stock : Discontinued
PID : P00025061785
Brand : ASRock
Model : Z490 Extreme4
Warranty : 3 Years
★ ★ ★ ★ ★
0 Reviews
  • Supports 10th Gen
  • 11 Power Phase design
  • Chipset : Intel Z490
  • Dual Channel DDR4 Memory

    • ASROCK Z490 Extreme4 MOTHERBOARD

    CPU

    •  Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
    • Digi Power design
    • 11 Power Phase design
    • Supports Intel Turbo Boost Max 3.0 Technology
    • Supports Intel K-Series unlocked CPUs
    • Supports ASRock BCLK Full-range Overclocking
    • Supports ASRock Hyper BCLK Engine III
    Chipset
    • Intel Z490
    Memory

    • Dual Channel DDR4 Memory Technology
    • 4 x DDR4 DIMM Slots
    • Supports DDR4 4266+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    • Supports ECC UDIMM memory modules (operate in non-ECC mode)
    • Max. capacity of system memory: 128GB**
    • Supports Intel Extreme Memory Profile (XMP) 2.0
    • 15μ Gold Contact in DIMM Slots
    Graphics

    • Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
    • Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    • Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
    • Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    • Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    • Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
    • Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
    Audio

    • 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    • Premium Blu-ray Audio support
    • Supports Surge Protection
    • 110dB SNR DAC with Differential Amplifier
    • PCB Isolate Shielding
    • Individual PCB Layers for R/L Audio Channel
    • Gold Audio Jacks
    • Nahimic Audio
    LAN

    • - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • - Dragon RTL8125BG
    • - Supports Dragon 2.5G LAN Software
    • - Smart Auto Adjust Bandwidth Control
    • - Visual User Friendly UI
    • - Visual Network Usage Statistics
    • - Optimized Default Setting for Game, Browser, and Streaming Modes
    • - User Customized Priority Control
    • - Supports Wake-On-LAN
    • - Supports Lightning/ESD Protection
    • - Supports Energy Efficient Ethernet 802.3az
    • - Supports PXE
    Slots

    • - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
    • - 3 x PCI Express 3.0 x1 Slots
    • - Supports AMD Quad CrossFireX™ and CrossFireX™
    • - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
    • - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    Software and UEFI

    • Software :
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Dragon 2.5G LAN Software
    • ASRock Polychrome SYNC
    • UEFI :
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock My Favorites in UEFI
    • ASRock Instant Flash
    • ASRock Internet Flash
    • ASRock Easy RAID Installer
    Storage Interface

    • - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    • - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    • - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Support CD
    • Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
    Connectors

    • - 1 x SPI TPM Header
    • - 1 x Power LED and Speaker Header
    • - 2 x RGB LED Headers*
    • - 2 x Addressable LED Headers**
    • - 1 x CPU Fan Connector (4-pin)***
    • - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    • - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    • - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    • - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    • - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    • - 1 x Front Panel Audio Connector
    • - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
    • - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection)
    • - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    • - 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z490) (Supports ESD Protection)
    Rare Panel I/O

    • - 2 x Antenna Mounting Points
    • - 1 x PS/2 Mouse/Keyboard Port
    • - 1 x HDMI Port
    • - 1 x DisplayPort 1.4
    • - 1 x Optical SPDIF Out Port
    • - 2 x USB 2.0 Ports (Supports ESD Protection)
    • - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    • - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    • - 2 x USB 3.2 Gen1 Ports (Intel® Z490) (Supports ESD Protection)*
    • - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
    Accessories


    • - Quick Installation Guide, Support CD
    • - 4 x SATA Data Cables
    • - 4 x Screws for M.2 Sockets
    • - 2 x Standoffs for M.2 Sockets
    H/W Monitoring

    • - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO
    BIOS

    • - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    • - ACPI 6.0 Compliant wake up events
    • - SMBIOS 2.7 Support
    • - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
    Unique Features

    • ASRock USB 3.2 Gen2
    • - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    • - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    • ASRock Super Alloy
    • - XXL Aluminum Alloy Heatsink
    • - Premium 60A Power Choke
    • - 50A Dr.MOS
    • - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    • - I/O Armor
    • - Shaped PCB Design
    • - Matte Black PCB
    • - High Density Glass Fabric PCB
    • - 2oz Copper PCB 2.5G LAN
    • ASRock Steel Slots
    • ASRock Full Coverage M.2 Heatsink
    • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • ASRock Ultra USB Power
    • ASRock POST Status Checker (PSC)
    • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    • ASRock Live Update & APP Shop
    Operating System
    • Support for Windows 10 64-bit

    Form Factor


    • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    • 2oz Copper PCB
    ASRock Z490 Extreme4 Motherboard Comes with 03 years Warranty.

    ASROCK Z490 Extreme4 Motherboard

    Z490 Extreme4 motherboard

     Nahimic Audio

    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.a woman is listening music

    The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

    a woman is listening music

    BASE Frequency Boost (BFB) Technology

    Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock's 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.

    While ASRock BFB breathes life into non K series CPUs and non Z series motherboards, the boost frequency currently still depends on the cooling system applied on your rig.

    ** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.Similar best ASRock popular motherboard is now  ASROCK B660M PRO RS 12TH GEN DDR4 ATX INTEL MOTHERBOARD in Bangladesh.

    BFB of the motherbaord

    This ASRock Z490 Extreme4 motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
