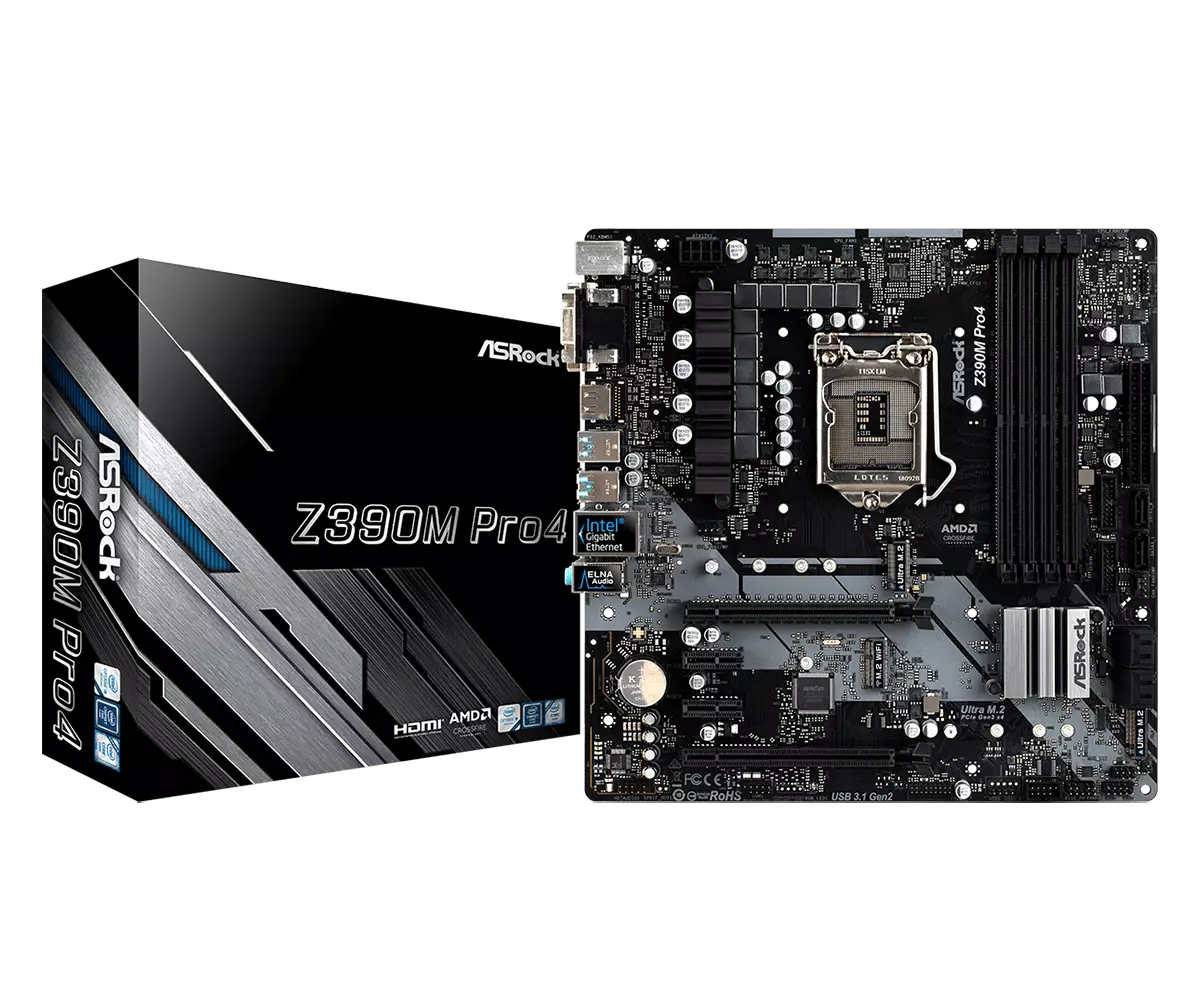

ASRock Z390M Pro4 9th Gen Micro ATX Motherboard

ASRock Z390M Pro4 Motherboard

ASRock 9th Gen Micro ATX Motherboard

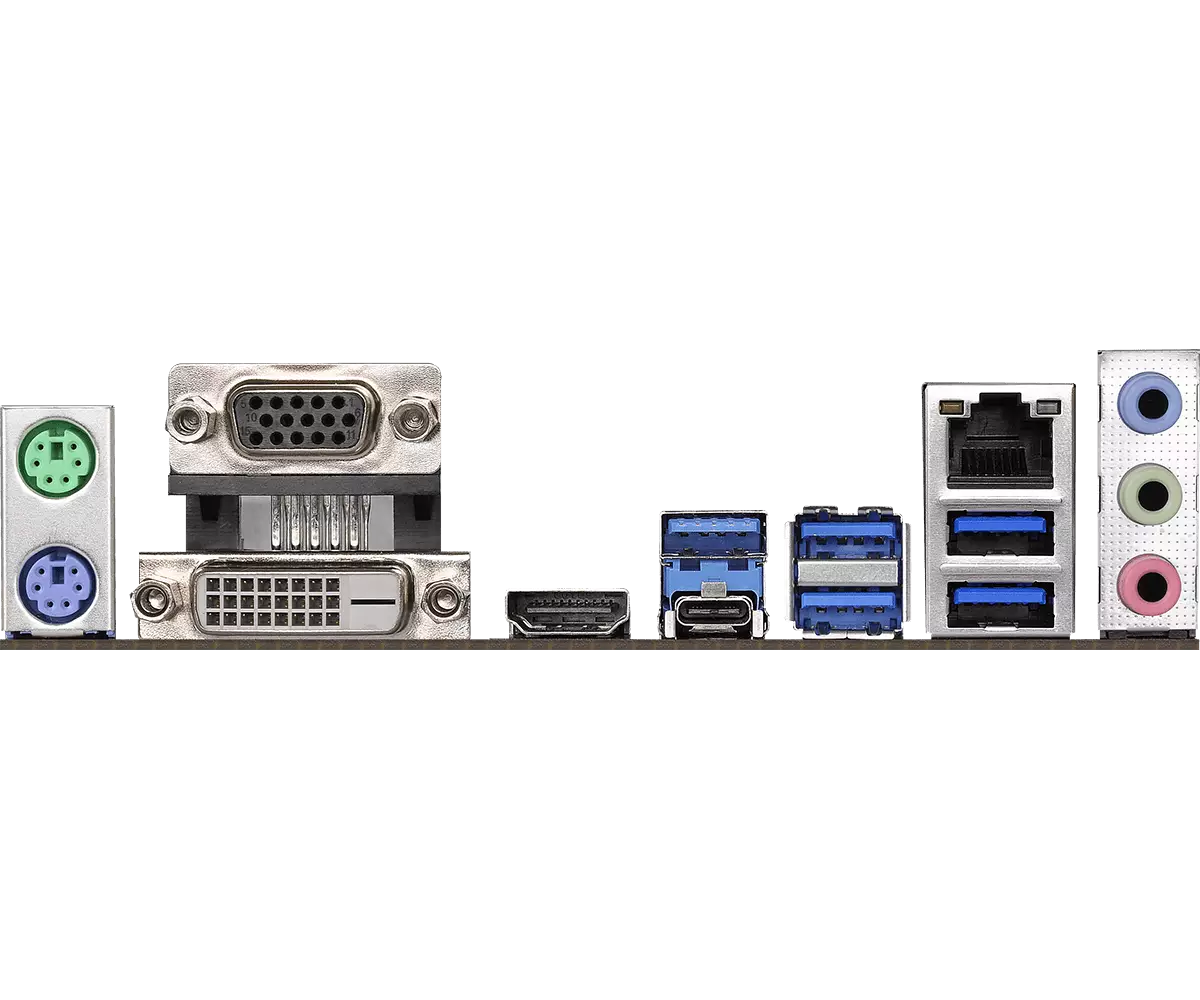

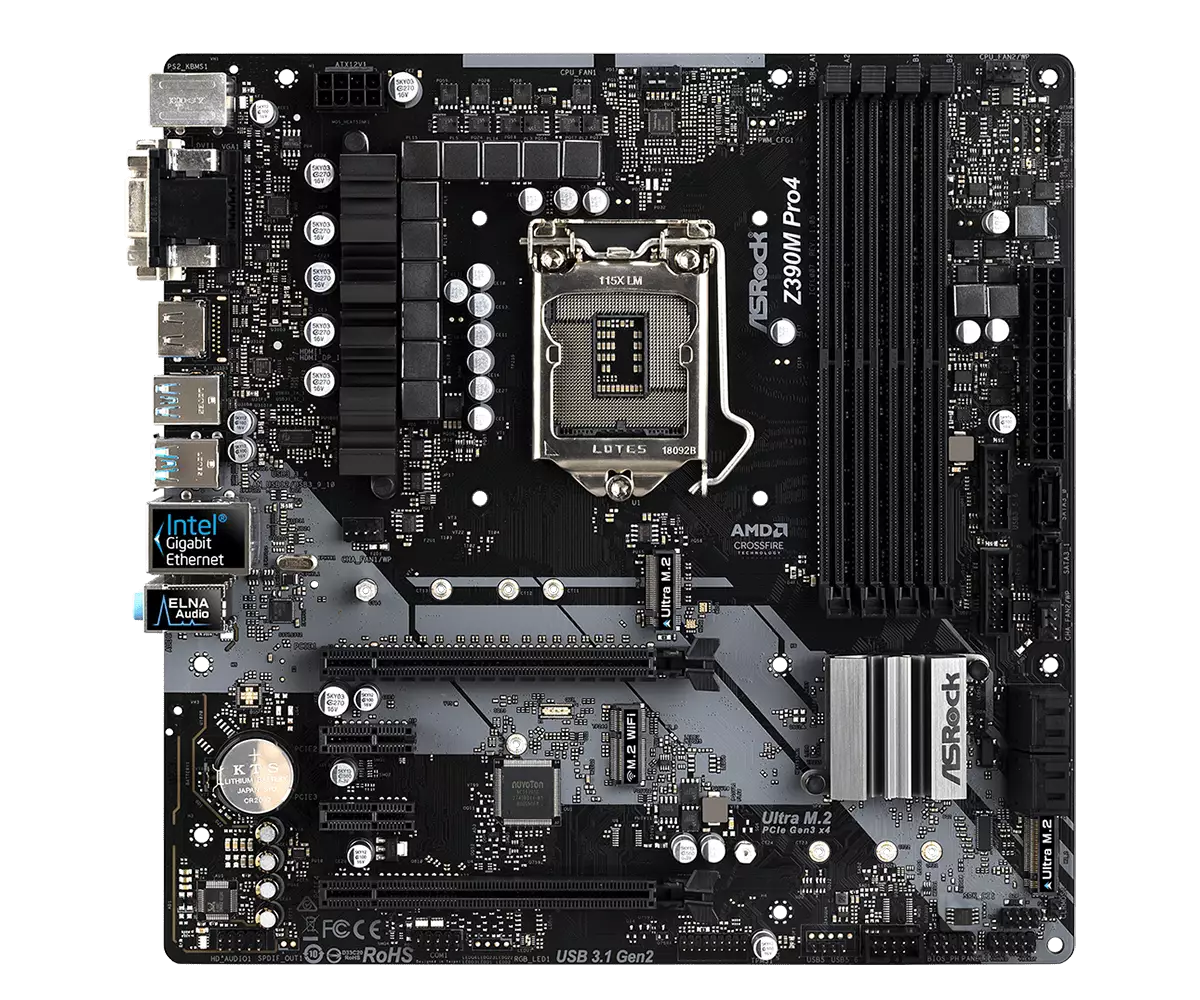

The Z390M Pro4 9th Gen Micro ATX Motherboard from ASRock is built on the Intel Z390 chipset with an LGA 1151 socket designed for 8th- and 9th-generation Intel processors. It's equipped with four DDR4 memory slots that support a max of 128GB of 4300 MHz RAM, two PCIe 3.0 x16 slots, two PCIe 3.0 x1 slots, four SATA III ports, and two M.2 slots. With two PCIe 3.0 x16 slots, this motherboard can be used for two-way NVIDIA SLI and AMD CrossFire setups. For storage, the M.2 slots support up to PCIe 3.0 x4 speeds as well as Intel Optane memory for quick data transfer. Please note that you should update the drivers and BIOS to the latest version before using Intel Optane memory. Other integrated features include multiple fan connectors, USB ports, DisplayPort and HDMI connectivity, 1 x RJ-45 Port LAN, 802.11ac Wi-Fi, Bluetooth 5.0, and Realtek ALC1220P-VB2 7.1-channel HD audio.

Cooling

The MPG Z390 has one water pump connector and four fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or third-party software. Moreover, it has an extended heatsink design to help dissipate heat and ensure stable performance.

User-Friendly

XL Clip - Enlarged PCIe clips make it easier for users to swap out PCIe hardware

EZ Debug LED - Onboard LEDs for key components indicate the source of a problem

CPU

For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.

DDR4

The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.

Storage

Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.

Internet Connectivity

Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, this motherboard also has 802.11ac Wi-Fi for wireless internet connectivity as well as Bluetooth 5.0 for pairing additional peripherals.

Audio

The MPG Z390 is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
