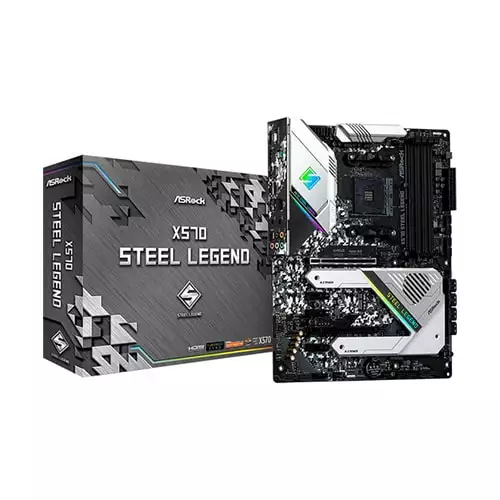

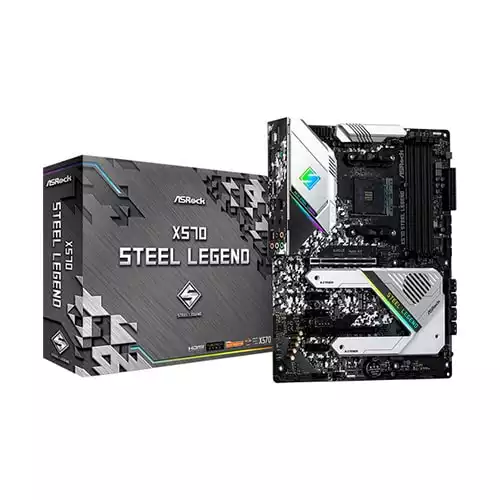

ASRock X570 Steel Legend AM4 ATX Motherboard
ASRock X570 Steel Legend AM4 ATX Motherboard-cover-thumbnail ASRock X570 Steel Legend AM4 ATX Motherboard-gallery-1 ASRock X570 Steel Legend AM4 ATX Motherboard-gallery-2

ASRock X570 Steel Legend AM4 ATX Motherboard

Stock : Discontinued
PID : P00025061239
SKU : AR-X570-SL-A-MB
Brand : OTHERS
Model : X570 Steel Legend
Warranty : 3 years
0 Reviews

ASRock X570 Steel Legend AM4 ATX Motherboard

Features:
  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • 10 Power Phase Design
  • Supports DDR4 4666+ (OC)
  • 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)

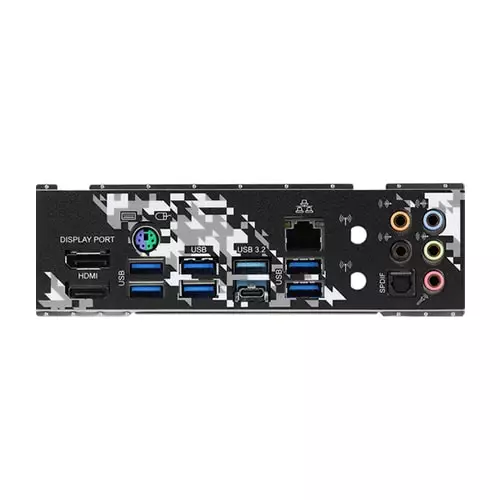

  • 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
  • Intel® Gigabit LAN
  • ASRock Polychrome SYNC
**03 Years Warranty

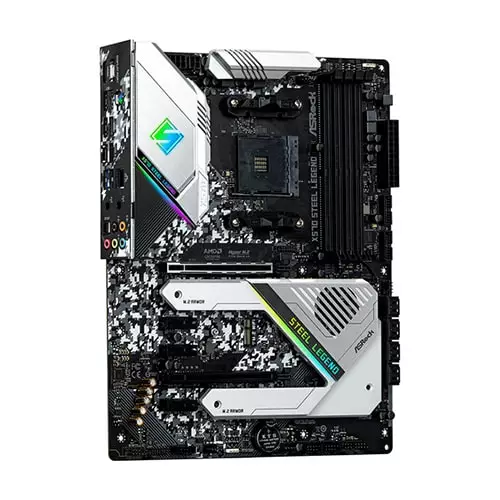

ASRock X570 Steel Legend Motherboard

The ASRock Steel Legend Motherboard is built on the AMD X570 chipset, This ASRock X570 Motherboard supporting second- and third-generation AMD Ryzen processors with an AM4 socket. ASRock Steel Legend Motherboard has four memory slots for up to 128GB of dual-channel DDR4 RAM, ASRock X570 Motherboard can be overclocked to up to 4666 MHz. For storage, it's equipped with eight SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards and three PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet and Realtek ALC1220 7.1-channel HD audio. Users can install an optional M.2 E-key module for Wi-Fi and Bluetooth connectivity.

AMD X570 Chipset

The ASRock Steel Legend Motherboard built with The AMD X570 chipset is designed around 3rd generation AMD Ryzen 3000-series processors. Along with multiple improvements, its most noteworthy one is the addition of PCIe 4.0. PCIe 4.0 has roughly double the bandwidth of PCIe 3.0, which is beneficial for graphics cards, networking devices, NVMe drives, and more.

Steel Slot

In This ASRock Steel Legend Motherboard has Steel Slot is a metal reinforced PCIe slot for extra stability and retention force, so heavy graphics cards are secured in place.

Hyper M.2 Slots

The M.2 slots are equipped with heatsink top cover that improves heat dissipation, preventing the cards from overheating and throttling.

ASRock Polychrome Sync & RGB

ASRock Polychrome RGB offers users with a variety of color options and lighting effects to personalize their build with. Users can also sync compatible RGB products for a unified theme.

Active Chipset Cooling

This motherboard features a built-in fan positioned to cool the chipset and prevent overheating and throttling.

10 Power Phase Design, Dr.Mos, and 60A Power Chokes

A 10 power phase design plus Dr.Mos mosfets and 60A power chokes help to deliver stable power to the CPU for more efficient overclocking.

Purity Sound 4

Purity Sound 4 is a combination of hardware and software audio solutions designed to provide users with a better audio experience. These include the Realtek ALC1220 7.1-channel HD audio codec, individual R/L PCB audio layers, a 120dB SNR DAC, and more.

Thunderbolt 3 AIC Header

Users can add Thunderbolt 3 connectivity to their system with the Thunderbolt 3 AIC (Add-In Card) header, which is compatible with the optional Thunderbolt 3 AIC R2.0 card.

Full Spike Protection

ASRock Full Spike Protection includes power regulating technologies to protect the system from unexpected voltage spikes.
