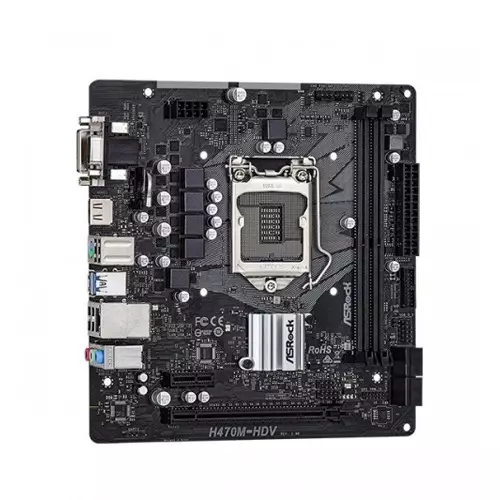

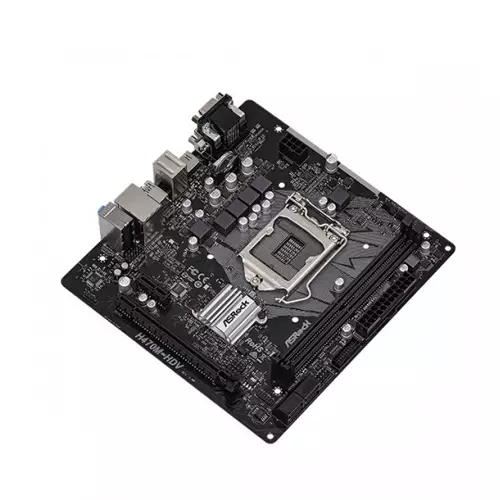

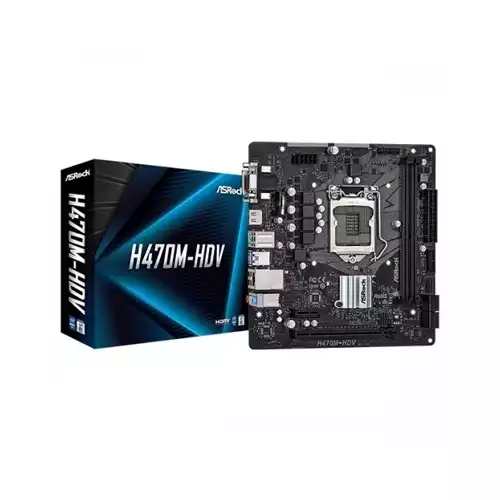

ASRock H470M-HDV 10th Gen Micro ATX Motherboard
EMI Start From*
ASROCK H470M-HDV Motherboard Specification |
CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 5 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology |
Chipset | Intel H470 |
Memory | Dual-Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
Graphics | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection |
LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Slots | - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot |
Storage Interface | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug |
Connectors | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

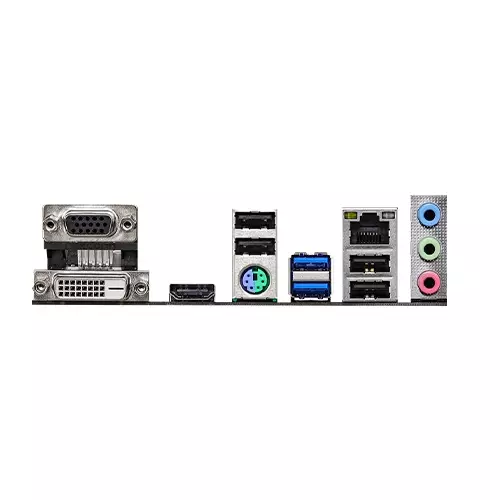

Rare Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
Unique Features | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
Operating System | - Microsoft® Windows® 10 64-bit |
Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm - Solid Capacitor design |
ASRock H470M-HDV Motherboard Comes with 03 years Warranty. |
ASRock H470M-HDV Motherboard in Bangladesh
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with rock bottom temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to 3 times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
ASRock H470M-HDV MotherboardConventional PC systems processors can only access a fraction of graphics memory and limit system performance. With Clever Access Memory, the info channel gets expanded to harness the complete potential of GPU memory, removes the bottleneck, and increase performance.
3 Graphics Outputs
ASRock H470M-HDV Motherboard Complete with all three sorts of most used connectors! full of a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
HEVC 10-bit Decoding/Encoding
ASRock H470M-HDV Motherboard Supports HEVC 10-bit Decoding/Encoding to supply substantially improved video quality and better bit depth video experience.
Premium 50A Power Choke
ASRock H470M-HDV Motherboard Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to 3 times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and provides ASRock H470M-HDV Motherboard a more mysterious touch.
High-Density Glass Fabric PCB
High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to guard the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a typical CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the foremost popular water pumps. ASRock H470M-HDV MotherboardUsers can also adjust the voltage of the pump to urge higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the ASRock H470M-HDV Motherboard are susceptible to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to stop your ASRock H470M-HDV Motherboard’s components from being damaged by these unexpected voltage spikes.
