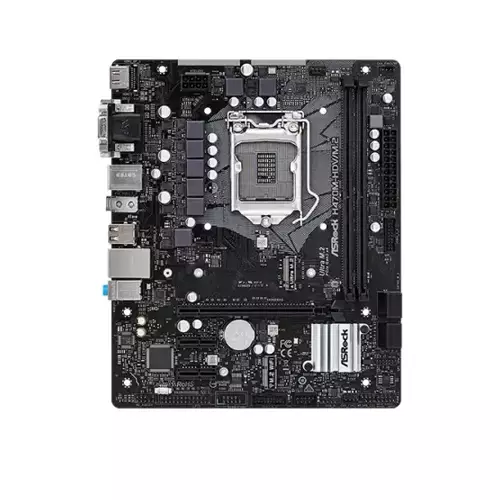

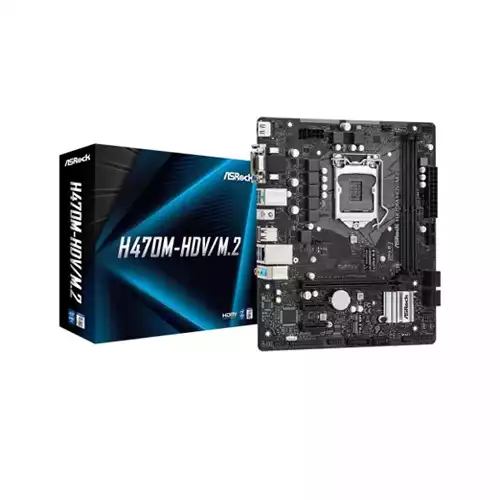

ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD
ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD
ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD - 1
ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD - 2

ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P1172506036
Brand : ASRock
Model : H470M-HDV/M.2
Warranty : 3 years
  • CPU Support: 10th Gen Intel Core Processors (Socket 1200)
  • RAM Support: DDR4 2933 MHz
  • Graphics Output: HDMI, DVI-D, D-Sub
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

SPECIFICATIONS

Processor

Supported CPU Supports 12th Gen Intel Core Processors (LGA1700)

Digi Power design

13 Power Phase design

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Mainboard

Chipset Intel H470
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment

Memory

Memory Dual Channel DDR4 Memory Technology

Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered
memory

Supports ECC UDIMM memory modules (operate in non-ECC mode)

Supports Intel Extreme Memory Profile (XMP) 2.0

15μ Gold Contact in DIMM Slots

Storage

Supported Storage 8 x SATA3 6.0 Gb/s Connectors*

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**

1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode

Graphics

Graphics - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9
8bit, VP9 10bit, MPEG 2, MJPEG, VC-1

- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5,
Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1

- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports Triple Monitor

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High
Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Networking & Connectivity

LAN Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel I219V

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Audio & Microphone

Audio HD Audio Jacks: Line in / Front Speaker / Microphone

Ports

Slots 1 x PCI Express 3.0 x16 Slot*

2 x PCI Express 3.0 x1 Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Internal I/O Ports 1 x Print Port Header

1 x COM Port Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector


1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

2 x USB 2.0 Ports (Supports ESD Protection)
HDMI 1 x HDMI Port

Physical Specification

Form Factor Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm

Solid Capacitor design
Dimension 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Warranty Information

Warranty 3 Years

DESCRIPTION

BEST ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD BD

The ASRock H470M-HDV/M.2 Micro ATX Motherboard supports 10th Gen Intel Core Processors (Socket 1200). It has a 7 Power Phase Design, it offers enhanced performance with the lowest temperature for advanced gamers. Complete with all three types of most used connectors. It features Dual Channel DDR4 Memory Technology and supports DDR4 2933/ 2800/ 2666 / 2400 / 2133 non-ECC, un-buffered memory. It has 2 x DDR4 DIMM Slots. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec). It supports Intel Turbo Boost Max 3.0 Technology. It comes with 128Mb AMI UEFI Legal BIOS with multilingual GUI support. It has a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

ASRock H470M-HDV/M.2 10th Gen Motherboard has 4 x SATA3 6.0 Gb/s Connectors and supports RAID. It has a Micro ATX Form Factor and Solid Capacitor design. It offers 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3). The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
The ASRock H470M-HDV/M.2 is packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. It supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz and D-Sub with max. resolution up to 1920x1200 @ 60Hz.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD Price in Bangladesh 2026 ?

The ASRock H470M-HDV/M.2 Price in BD is 8,800৳ . This ASROCK H470M-HDV/M.2 10TH GEN MICRO ATX MOTHERBOARD Manufacturing by ASRock Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock H470M-HDV/M.2 by 8,800৳ and its regular price is 9,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
