ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard
ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard
ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard - 1
ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard - 2
ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard - 3

ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P1172506062
Brand : ASRock
Model : B760M Pro RS
Warranty : 3-Years
  • Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

SPECIFICATIONS

Processor

Supported CPU Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Supports Intel Thermal Velocity Boost (TVB)

Supports Intel Adaptive Boost Technology (ABT)

Mainboard

Chipset Intel B760
BIOS 128Mb AMI UEFI Legal BIOS with GUI support

Memory

Memory Memory Type: DDR5

Memory Slots: 4

Supported Memory

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)

Max. capacity of system memory: 256GB

Supports Intel Extreme Memory Profile (XMP) 3.0



1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.

1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.

2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.

2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.


Maximum Memory: 256GB

Storage

Supported Storage CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors



* Supports Intel Volume Management Device (VMD)

Supports NVMe SSD as boot disks

Graphics

Graphics - Intel Xe Graphics Architecture (Gen 12)

- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with GPU integrated processors.

Networking & Connectivity

LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User-Friendly UI

- Visual Network Usage Statistics

- Optimized Default Settings for Game, Browser, and Streaming Modes

- User Customized Priority Control

Audio & Microphone

Audio Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

Ports

I/O Port Internal I/O Ports

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header

- 3 x Addressable LED Headers

- 1 x CPU Fan Connector (4-pin)

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

- 1 x 24-pin ATX Power Connector

- 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen1 Header

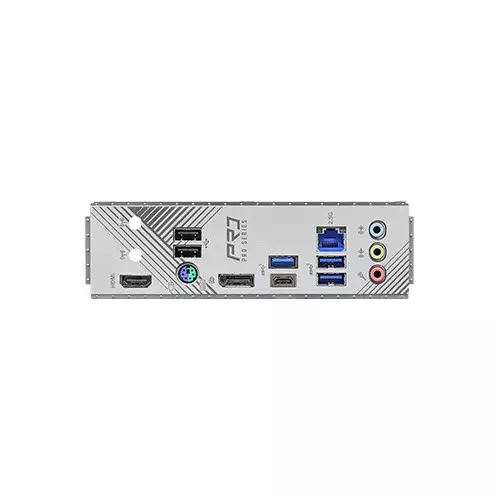

Rear Panel I/O

- 2 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x USB 3.2 Gen1 Type-C Port

- 3 x USB 3.2 Gen1 Type-A Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone
PCI Card Slot CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*


Chipset:

- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and

ntel CNVio/CNVio2 (Integrated WiFi/BT)



- Supports AMD CrossFire
Port 1x HDMI

1x DisplayPort
USB Chipset:

- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)

- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

- 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection

Software

Bundled Software Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC


UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

- ASRock Easy RAID Installer

Special Features

Special Features Superb Productivity

- PCIe Gen5 (Graphics)

- Dual Channel DDR5


Rock-Solid Durability

- 7+1+1 Power Phase, Dr.MOS for VCore+GT


Ultrafast Connectivity

- 2.5G LAN


EZ Update

- ASRock Auto Driver Installer


EZ Troubleshooter

- ASRock Post Status Checker

Others

Other Features RAID: - Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

TPM (Trusted Platform Module ): 1 x SPI TPM Header

Physical Specification

Color White
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Technical Info

Brand ASRock
Model B760M Pro RS

Warranty Information

Warranty 3-Years

DESCRIPTION

ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard in Bangladesh

ASRock B760M Pro RS DDR5 is a powerful and budget-friendly Micro ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors (LGA1700 socket), featuring PCIe Gen5 support, DDR5 memory, and ultra-fast 2.5G LAN for high-performance computing. Built for gamers, content creators, and power users, this motherboard boasts a 7+1+1 power phase design with Dr.MOS for stable power delivery and efficient overclocking. It supports dual-channel DDR5 RAM up to 7200+ MHz (OC) and a max capacity of 256GB, ensuring smooth multitasking and high-speed performance. The PCIe 5.0 x16 slot provides maximum bandwidth for next-gen GPUs, while three Hyper M.2 slots (PCIe Gen4 x4) deliver blazing-fast NVMe SSD speeds for storage-intensive tasks. With 2.5G LAN, you get ultra-low latency for online gaming and 4K streaming. Additional features include USB 3.2 Gen1 Type-C (front & rear), HDMI 2.1, DisplayPort 1.4, and 7.1 CH HD audio (Realtek ALC897 with Nahimic Audio). The ASRock EZ Update & Troubleshooter simplifies BIOS and driver management, while RGB and addressable LED headers allow for customizable lighting. Perfect for compact builds, this Micro ATX (24.4cm x 24.4cm) motherboard supports Windows 10/11, RAID 0/1/5/10, and multiple cooling options, making it an excellent choice for budget-conscious users who demand performance. Available now at Tech Land BD for the best price in Bangladesh.


 FAQs:

Does the ASRock B760M Pro RS support Wi-Fi and Bluetooth?

No, this model does not include built-in Wi-Fi or Bluetooth, but it has an M.2 Key E slot for adding a Wi-Fi/Bluetooth module.


Can I use DDR4 RAM with this motherboard?

No, the ASRock B760M Pro RS DDR5 only supports DDR5 memory (up to 7200+ MHz OC).


Does this motherboard support PCIe 5.0 SSDs?

No, while it has a PCIe 5.0 x16 slot for GPUs, its M.2 slots are PCIe Gen4 x4 (64 Gb/s).

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The ASRock B760M Pro RS Price in BD is 18,900৳ . This ASRock B760M Pro RS DDR5 Intel 14th Gen Micro ATX Motherboard Manufacturing by ASRock Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock B760M Pro RS by 18,900৳ and its regular price is 19,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
