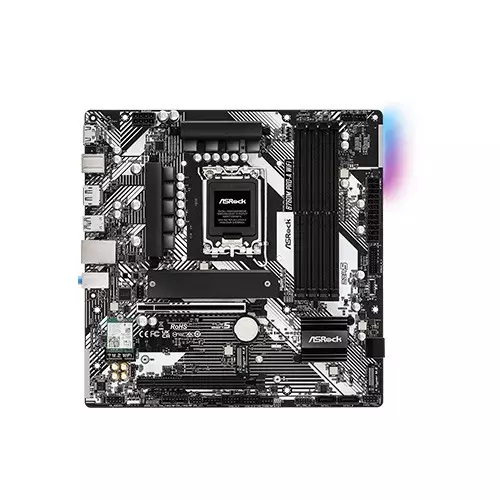

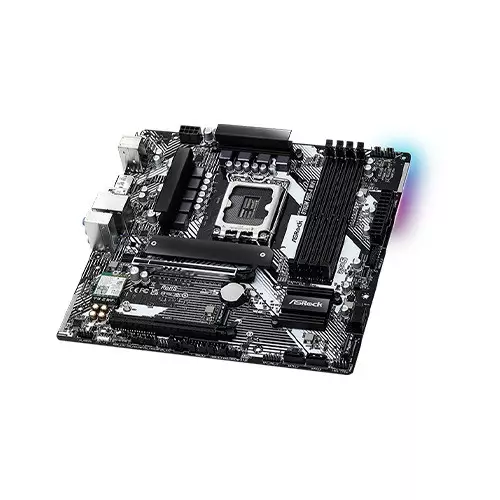

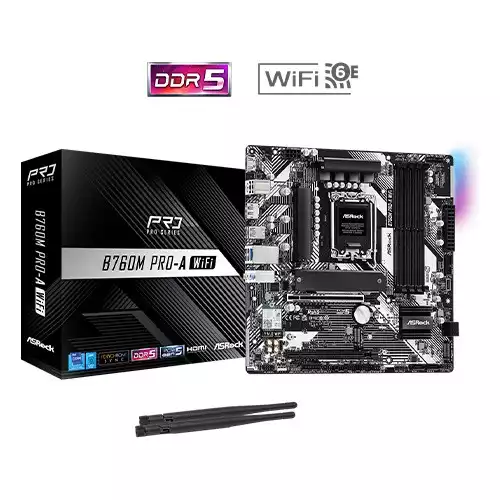

ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard
ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard
ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard - 1
ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard - 2
ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard - 3

ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P1172506061
Brand : ASRock
Model : B760M Pro-A WiFi
Warranty : 3-Years
  • Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth 5.3

SPECIFICATIONS

Processor

Supported CPU Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Supports Intel Thermal Velocity Boost (TVB)

Supports Intel Adaptive Boost Technology (ABT)

Mainboard

Chipset Intel B760
BIOS 128Mb AMI UEFI Legal BIOS with GUI support

Memory

Memory Specifications Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)

Max. capacity of system memory: 256GB

Supports Intel Extreme Memory Profile (XMP) 3.0



1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC),

4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R

Up to 4800+ MHz (OC), 3600 MHz Natively.
Memory Type DDR5
Expansion RAM Slot 4

Storage

Supported Storage CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors



* Supports Intel Volume Management Device (VMD)

Supports NVMe SSD as boot disks

Graphics

Graphics - Intel Xe Graphics Architecture (Gen 12)

- 1 x HDMI 2.1 TMDS Compatible,

supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1 x DisplayPort 1.4 with DSC (compressed),

supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


* Intel UHD Graphics Built-in Visuals and

the VGA outputs can be supported only with GPU integrated processors.

Networking & Connectivity

Wireless Connectivity - 802.11axe Wi-Fi 6E Module

- Supports IEEE 802.11a/b/g/n/ac/ax/axe

- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.3 + High speed class II

- Supports MU-MIMO

- Supports Killer LAN Software
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User-Friendly UI

- Visual Network Usage Statistics

- Optimized Default Settings for Game, Browser, and Streaming Modes

- User Customized Priority Control

Audio & Microphone

Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Ports

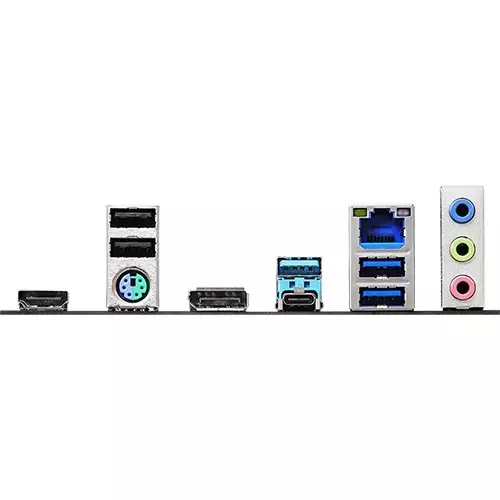

I/O Port Internal I/O Ports

- 2 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x USB 3.2 Gen1 Type-C Port

- 3 x USB 3.2 Gen1 Type-A Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone



Connector

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24-pin ATX Power Connector

- 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen1 Header
PCI Card Slot CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and] Intel
CNVio/CNVio2 (Integrated WiFi/BT)

- Supports AMD CrossFire
Port 1x HDMI

1x DisplayPort
USB Chipset:

- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)

- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

- 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection

Software

Bundled Software Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC



UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

- ASRock Easy RAID Installer

Special Features

Special Features Superb Productivity

- PCIe Gen5 (Graphics)

- Dual Channel DDR5



Rock-Solid Durability

- 7+1+1 Power Phase, Dr.MOS for VCore+GT


Ultrafast Connectivity

- 2.5G LAN



EZ Update

- ASRock Auto Driver Installer



EZ Troubleshooter

- ASRock Post Status Checker

Others

Other Features RAID: - Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices


TPM (Trusted Platform Module ): 1 x SPI TPM Header

Physical Specification

Color Black
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Technical Info

Brand ASRock
Model B760M Pro-A WiFi

Warranty Information

Warranty 3-Years

DESCRIPTION

ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard  in Bangladesh

ASRock B760M Pro-A WiFi DDR5 is a high-performance Micro ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors (LGA1700 socket), offering PCIe Gen5 support, DDR5 memory compatibility, and Killer Wi-Fi 6E for ultrafast connectivity. Built for gamers, content creators, and power users, this motherboard features a 7+1+1 power phase design with Dr.MOS for stable overclocking and enhanced durability. It supports dual-channel DDR5 RAM up to 7200+ MHz (OC) and 256GB max capacity, ensuring smooth multitasking and high-speed performance. The PCIe 5.0 x16 slot delivers maximum bandwidth for next-gen GPUs, while three Hyper M.2 slots (PCIe Gen4 x4) provide lightning-fast NVMe SSD speeds for storage-intensive tasks. With 2.5G LAN and Killer Wi-Fi 6E (6GHz band support), you get lag-free online gaming and 4K streaming. Additional features include USB 3.2 Gen1 Type-C (front & rear), HDMI 2.1, DisplayPort 1.4, and 7.1 CH HD audio (Realtek ALC897). The ASRock EZ Update & Troubleshooter simplifies BIOS and driver management, while RGB and addressable LED headers allow for customizable lighting. Perfect for compact builds, this Micro ATX (24.4cm x 24.4cm) motherboard comes with Windows 10/11 support, RAID 0/1/5/10, and multiple cooling options, making it an ideal choice for high-performance PCs. Available now at Tech Land BD for the best price in Bangladesh.


FAQs:

Does the ASRock B760M Pro-A WiFi support PCIe 5.0 SSDs?

No, while it has a PCIe 5.0 x16 slot for GPUs, its M.2 slots are PCIe Gen4 x4 (64 Gb/s). For PCIe 5.0 SSDs, consider a Z790 motherboard.


Can I use DDR4 RAM with this motherboard?

No, the ASRock B760M Pro-A WiFi DDR5 only supports DDR5 memory (up to 7200+ MHz OC).


Is the Wi-Fi 6E (6GHz band) supported in Bangladesh?

Wi-Fi 6E (6GHz) depends on local regulations. While the hardware supports it, activation requires Windows 11 updates and a 6GHz-compatible router.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The ASRock B760M Pro-A WiFi Price in BD is 19,400৳ . This ASRock B760M Pro-A WiFi DDR5 Intel 14th Gen Micro ATX Motherboard Manufacturing by ASRock Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock B760M Pro-A WiFi by 19,400৳ and its regular price is 20,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
