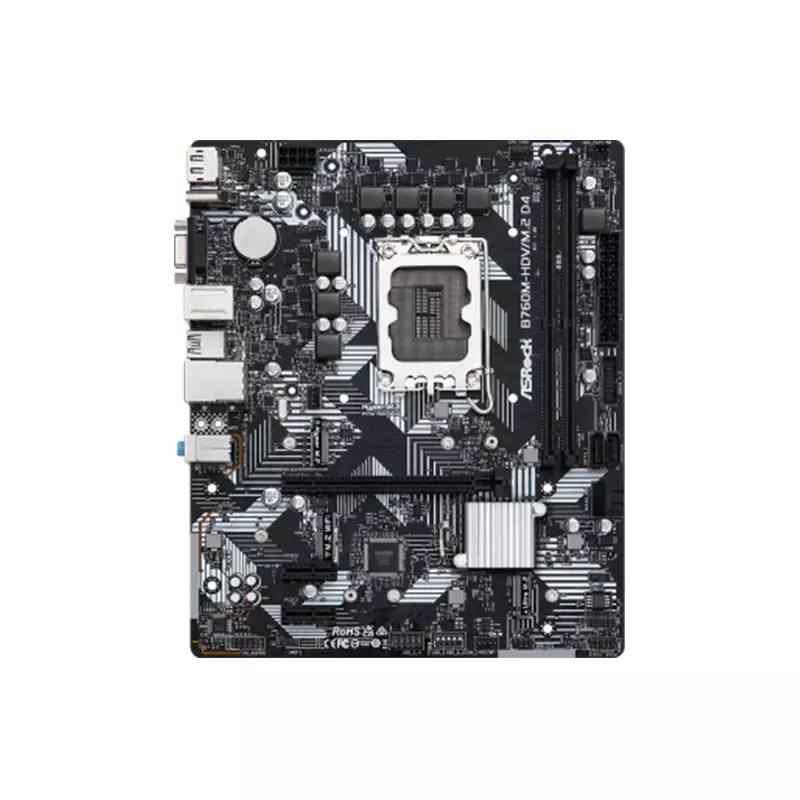

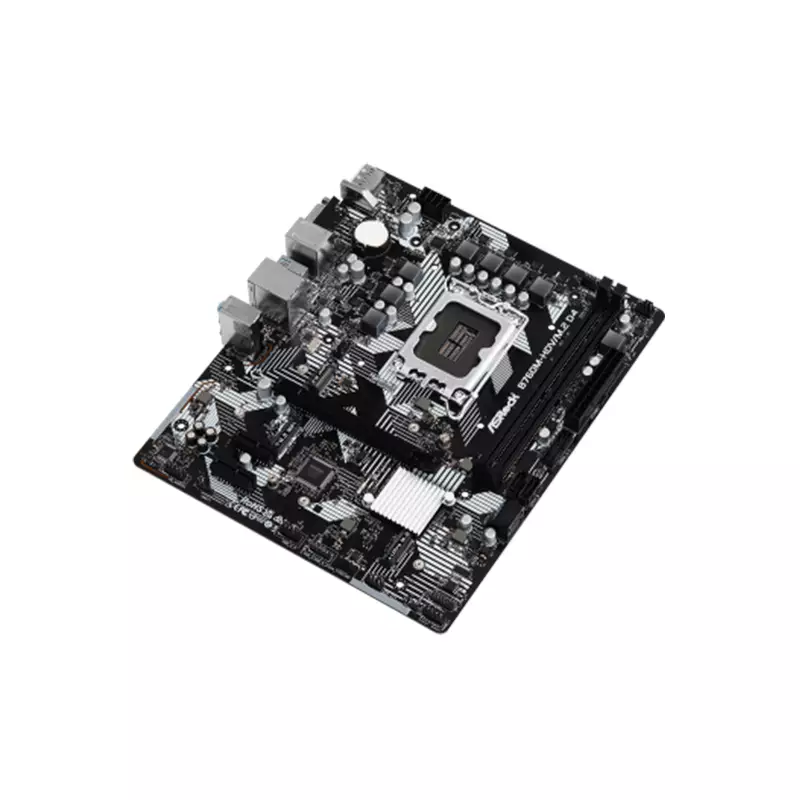

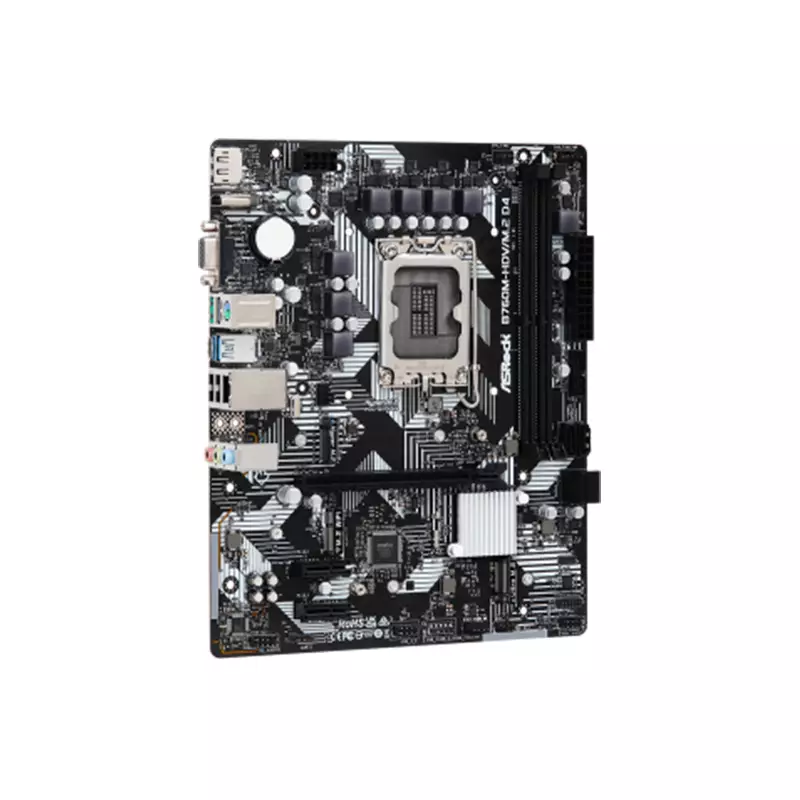

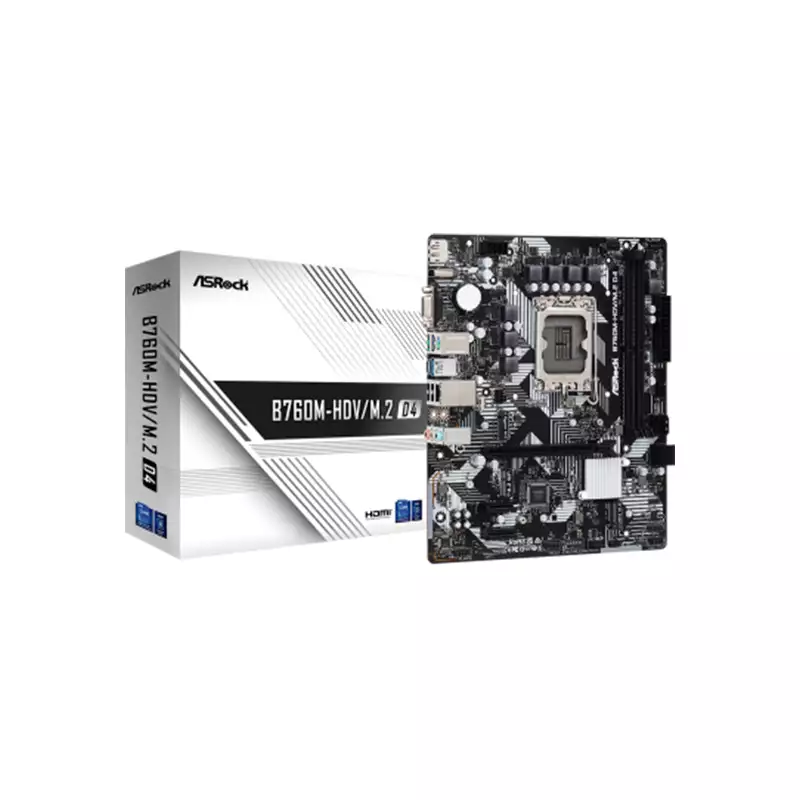

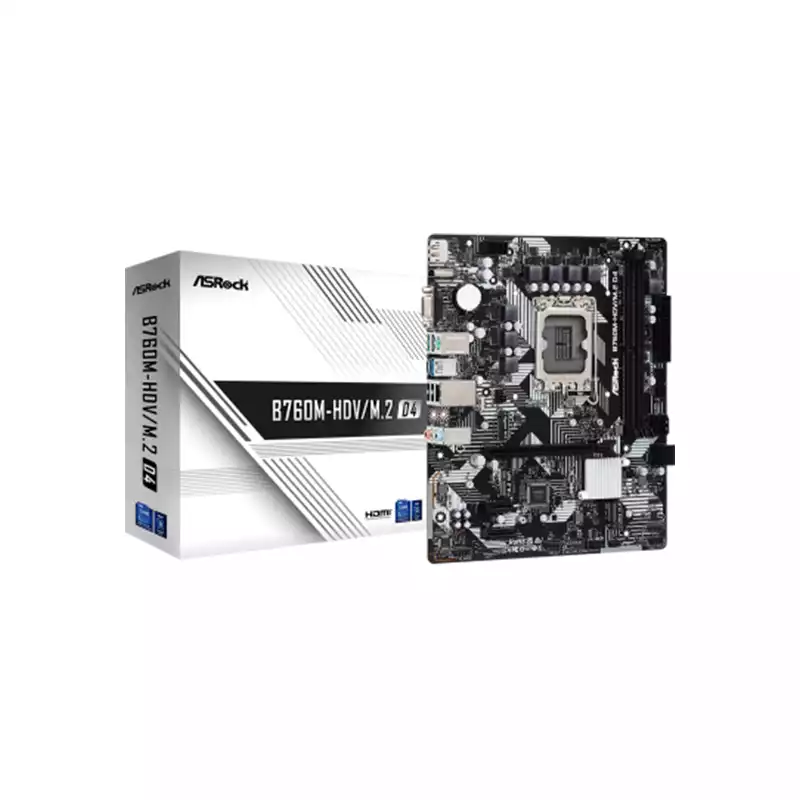

ASROCK B760M-HDV/M.2 DDR4 12TH & 13TH GEN MICRO ATX MOTHERBOARD
- 13th Gen and 12th Gen Intel Core Processors (LGA1700)
- RAM Support: 2 x DDR4 non-ECC, up to 5333MHz (OC)
- Graphics Output: HDMI, DisplayPort, eDP
- Feature: Realtek 1G LAN
SPECIFICATIONS
Processor
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Mainboard
Memory
Number of Memory Slots: 2 x DDR4 DIMM Slots
Supported Memory: Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
Maximum Memory: Max. capacity of system memory: 64GB
Storage
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Graphics
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Networking & Connectivity
Realtek 8111H
Audio & Microphone
Ports
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

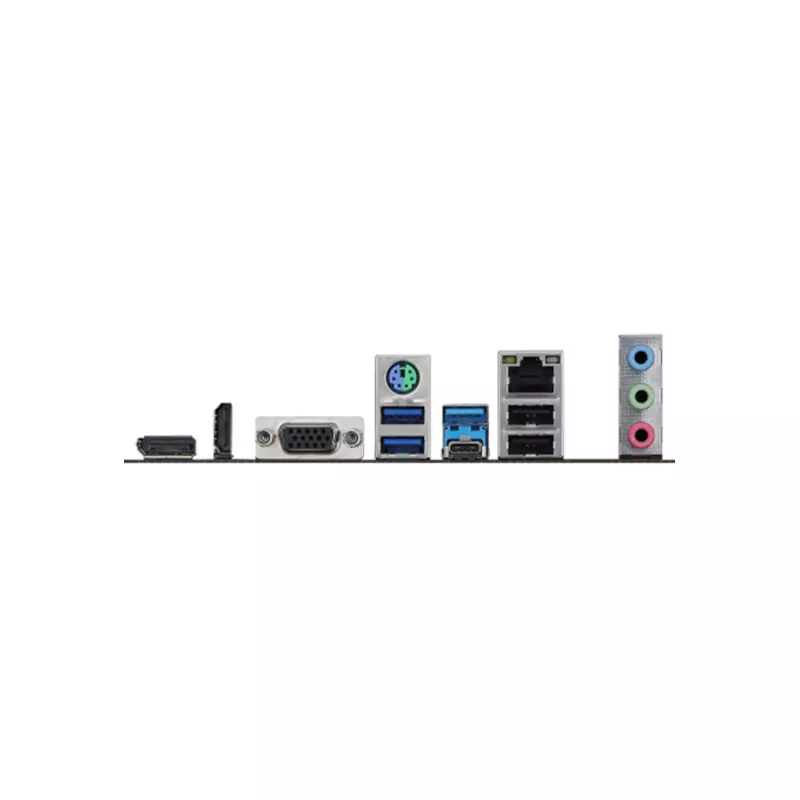

1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
5 x USB 2.0 (2 Rear, 3 Front)
All USB ports support ESD Protection
Software
ASRock XFast LAN
Physical Specification
Warranty Information
DESCRIPTION
ASROCK B760M-HDV/M.2 DDR4 12TH & 13TH GEN MICRO ATX MOTHERBOARD
The ASRock B760M-HDV/M.2 DDR4 Micro ATX Motherboard is a feature-packed motherboard designed to support 13th Gen, 12th Gen, and next-gen Intel Core Processors on the LGA1700 socket. With an Intel B760 chipset, it provides solid performance for various computing needs. This motherboard accommodates dual-channel DDR4 memory, with two DDR4 DIMM slots supporting non-ECC, un-buffered memory up to 5333+(OC) for a maximum capacity of 64GB. It boasts Intel Xe Graphics Architecture for excellent visuals, including support for 4K and 8K resolutions, as well as a range of connectivity options including HDMI, DisplayPort, and D-Sub. The motherboard offers ample expansion with PCIe 4.0 and PCIe 3.0 slots and supports M.2 storage options. Networking is provided by Gigabit LAN, and it features a variety of USB ports for connectivity. With a Micro ATX form factor, this motherboard is versatile and comes with a 3-year warranty, making it a reliable choice for compact PC builds. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asrock Motherboard available at Techland BD is well recognized. The large selection of available at is well recognized.
