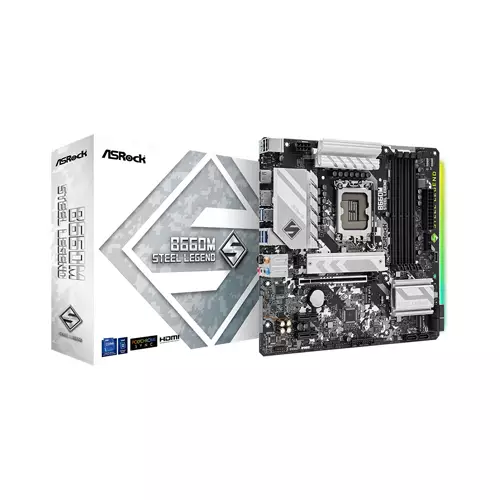

ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard
ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard

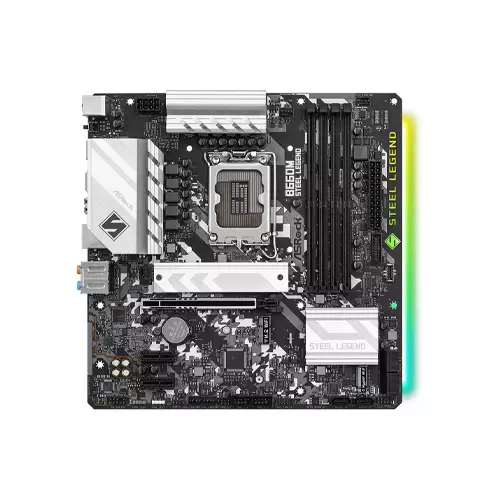

ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard - 1

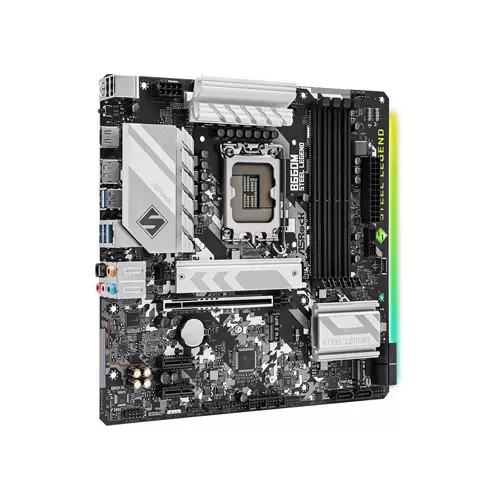

ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard - 2
ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard - 3

ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard

0 Reviews
Stock : Discontinued
PID : P1172506025
Brand : ASRock
Model : B660M Steel Legend
Warranty : 3 years
  • B660M Steel Legend
  • Form Factor MicroATX
  • CPU Socket 1700
  • Chipset Intel B660

SPECIFICATIONS

Processor

Supported CPU - Supports 12th Gen Intel® Core™ Processors (LGA1700)

- Digi Power design

- 9 Power Phase design

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Mainboard

Chipset - Intel B660
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VDD_IMC,VCCIN AUX, +1.05V PROC, +1.8V PROC,
+0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

- 15μ Gold Contact in DIMM Slots

Storage

Supported Storage CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors**

ASMedia ASM1061:

- 2 x SATA3 6.0 Gb/s Connectors

Graphics

Graphics - Intel® Xe Graphics Architecture (Gen 12)

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports UEFI PXE
WiFi 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

Audio & Microphone

Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Supports Surge Protection

- Gold Audio Jacks

- 15μ Gold Audio Connector

- Nahimic Audio

Ports

Slots - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*

- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Internal I/O Ports - 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

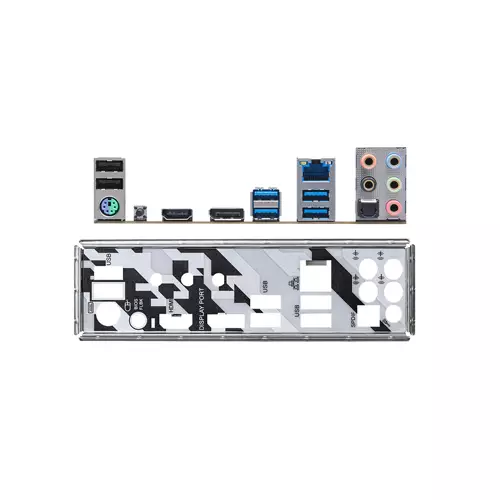

External I/O Ports - 2 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x BIOS Flashback Button

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
HDMI 1 x HDMI Port

Special Features

Special Features ASRock USB 3.2 Gen2

- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

- XXL Aluminum Alloy Heatsink

- Premium Power Choke

- 50A Dr.MOS

- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

- Matte Black PCB

- High Density Glass Fabric PCB

- 2oz Copper PCB

2.5G LAN ASRock Steel Slot

ASRock Full Coverage M.2 Heatsink

ASRock Hyper M.2 (PCIe Gen4x4)

ASRock POST Status Checker (PSC)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

Physical Specification

Form Factor ATX Form Factor
Dimension 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Warranty Information

Warranty 3 years

DESCRIPTION

ASRock B660M Steel Legend Motherboard in Bangladesh

Modern and futuristic, with the attractive specifications and perfect balance, the Steel Legend Edition is the perfect solution for the latest motherboard technology. With support for the latest 12th Gen Intel Core processors and DDR4 memory, you'll have everything you need for a new custom build.

9 POWER PHASE DESIGN

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

BE IMMERSED IN SOUND

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

HIGH SPEED M.2 SOLUTION

This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

DRAGON 2.5 GB/S LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard Price in Bangladesh 2026 ?

The ASRock B660M Steel Legend Price in BD is 18,500৳ . This ASRock B660M Steel Legend PCIe 5.0 mATX Motherboard Manufacturing by ASRock Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock B660M Steel Legend by 18,500৳ and its regular price is 19,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
