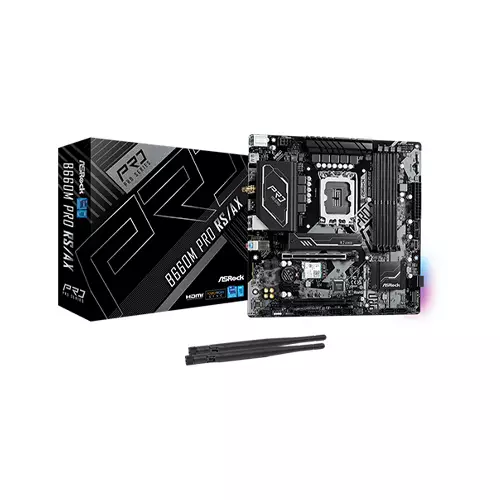

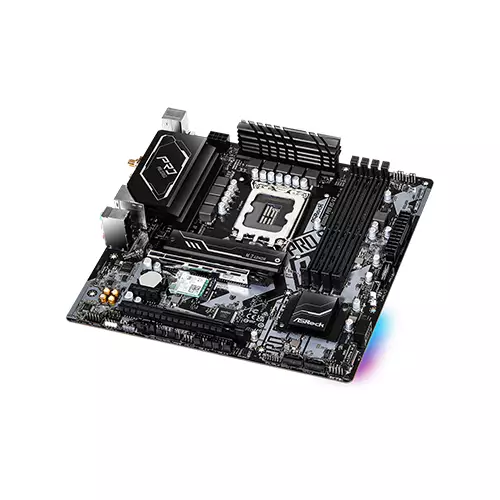

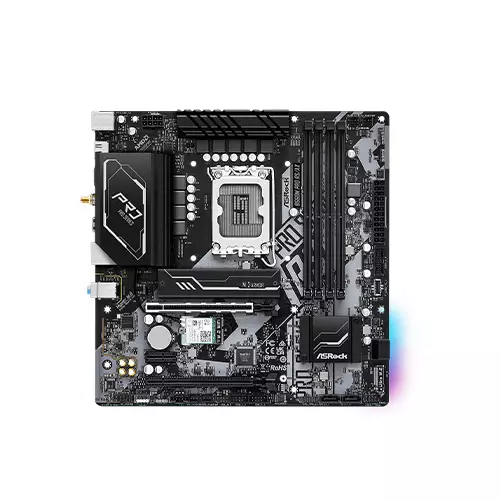

Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard
Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard
Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard - 1
Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard - 2
Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard - 3

Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P1172506029
Brand : ASRock
Model : B660M Pro RS/ax
Warranty : 3 Years
  • Supports 12th/13th/14th Gen Processors
  • 8 Phase Power Design
  • Supports DDR4 5333MHz (OC)
  • Intel Gigabit LAN

SPECIFICATIONS

Processor

Supported CPU - Supports 12th/13th/14th Gen Intel® Core™ Processors (LGA1700)

- Digi Power design

- 8 Power Phase design

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Mainboard

Chipset Intel B660
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

Storage

Supported Storage CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors

Graphics

Graphics - Intel® Xe Graphics Architecture (Gen 12)

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN - 802.11ax Wi-Fi 6E Module

- Supports IEEE 802.11a/b/g/n/ax

- Supports Dual-Band 2x2 160MHz with extended 6GHz band support*

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth + High speed class II

- Supports MU-MIMO
WiFi 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Bluetooth Supports Bluetooth + High speed class II

Audio & Microphone

Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Supports Surge Protection

- Nahimic Audio

Ports

Slots - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

- Supports AMD CrossFire™
Internal I/O Ports - 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

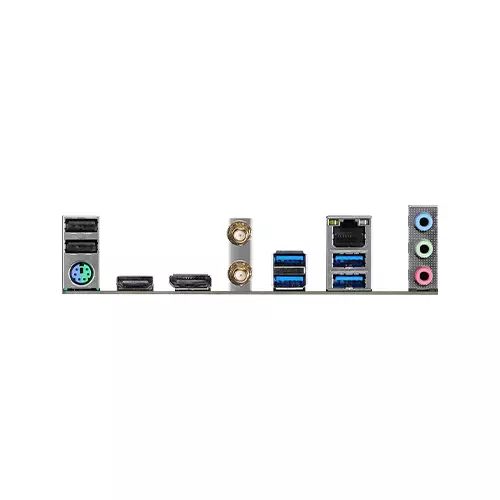

External I/O Ports - 2 x Antenna Ports

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Warranty Information

Warranty 3 years

DESCRIPTION

Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard


The ASRock B660M PRO RS/AX is a versatile Micro ATX motherboard built for 12th and 13th Gen Intel Core processors on the LGA 1700 socket. Featuring the Intel B660 chipset, it supports dual-channel DDR4 memory up to 128GB, PCIe 5.0 and 4.0 slots, and high-speed storage options including M.2 NVMe SSDs and SATA3 drives. With integrated Wi-Fi 6 (AX), 2.5Gb LAN, and multiple USB 3.2 ports, it delivers fast and reliable connectivity for gaming, content creation, and everyday computing.

Designed with a robust power delivery system, premium capacitors, and durable components, the motherboard ensures stable performance under heavy workloads. Its Micro ATX form factor allows for compact yet expandable builds, supporting modern GPUs, fast memory, and advanced cooling solutions. The ASRock B660M PRO RS/AX combines performance, reliability, and connectivity, making it an excellent choice for mid-sized gaming and productivity PCs.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The ASRock B660M Pro RS/ax Price in BD is 18,900৳ . This Asrock B660M PRO RS/AX 12th & 13th Gen Micro ATX Motherboard Manufacturing by ASRock Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock B660M Pro RS/ax by 18,900৳ and its regular price is 20,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
