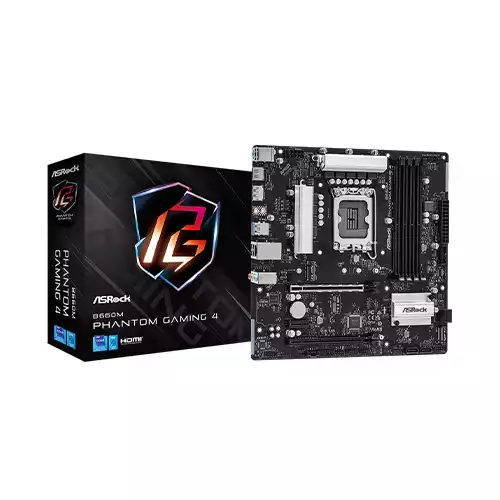

ASROCK B660M PHANTOM GAMING 4 MICRO ATX 12TH & 13TH GEN INTEL MOTHERBOARD
ASROCK B660M PHANTOM GAMING 4 MICRO ATX 12TH & 13TH GEN INTEL MOTHERBOARD

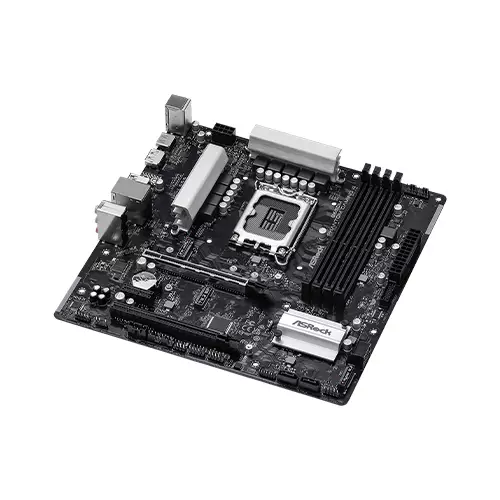

ASROCK B660M PHANTOM GAMING 4 MICRO ATX 12TH & 13TH GEN INTEL MOTHERBOARD - 1

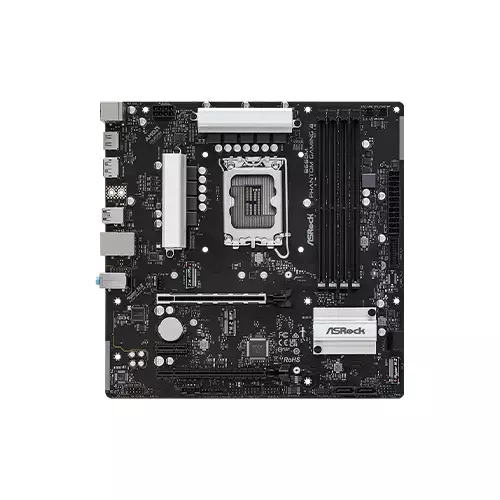

ASROCK B660M PHANTOM GAMING 4 MICRO ATX 12TH & 13TH GEN INTEL MOTHERBOARD - 2
ASROCK B660M PHANTOM GAMING 4 MICRO ATX 12TH & 13TH GEN INTEL MOTHERBOARD - 3

ASROCK B660M PHANTOM GAMING 4 MICRO ATX 12TH & 13TH GEN INTEL MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P1172506023
Brand : ASRock
Model : B660M PHANTOM GAMING 4
Warranty : 2 Years
  • Supports 12th/13th/14th Gen Intel Processors
  • 8 Phase Dr.MOS Power Design
  • Supports DDR4 5333MHz (OC)
  • 1 M.2 Key-E for WiFi

SPECIFICATIONS

Processor

Supported CPU - Supports 12th/13th/14th Gen Intel® Core™ Processors (LGA1700)

- Digi Power design

- 8 Power Phase design

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Mainboard

Chipset - Intel® B660
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH,
+1.05V PCH Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

Storage

Supported Storage CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

Graphics

Graphics - Intel® Xe Graphics Architecture (Gen 12)

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent
display controllers

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K
(4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN - Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I219V

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports UEFI PXE

Audio & Microphone

Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Supports Surge Protection

- Nahimic Audio

Ports

Slots CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel®
CNVi (Integrated WiFi/BT)


- Supports AMD CrossFire™
Internal I/O Ports - 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD
Protection)

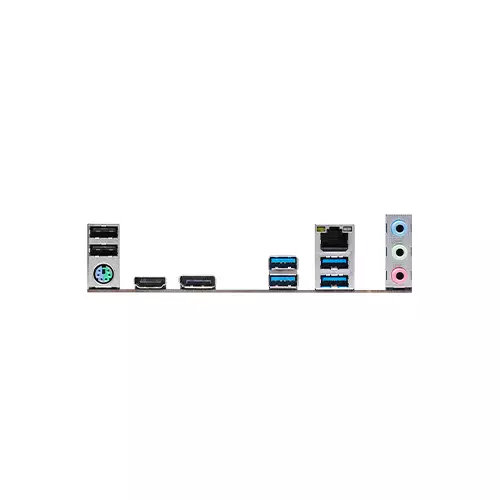

External I/O Ports - 3 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Warranty Information

Warranty 2 years

DESCRIPTION

ASRock B660M PHANTOM GAMING 4 Motherboard in Bangladesh


This motherboard can accommodate multiple PCI Express 4.0 M.2 SSDs, which deliver twice the speed of previous 3rd-generation SSDs, providing a lightning-fast data-transfer experience.

Intel® Gigabit LAN

Intel® LAN delivers the best throughput, lower CPU utilisation, enhanced stability, and the ultimate network experience for users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Dual Graphics Outputs

Complete with two types of the most used connectors! Packed with an HDMI + DisplayPort combo, you have more graphics output options now.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges; the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from damage caused by unexpected voltage spikes.
