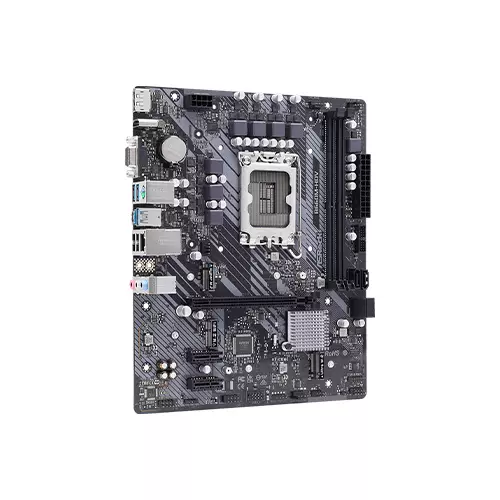

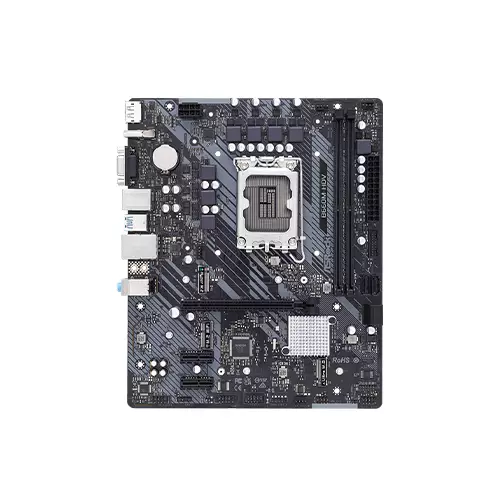

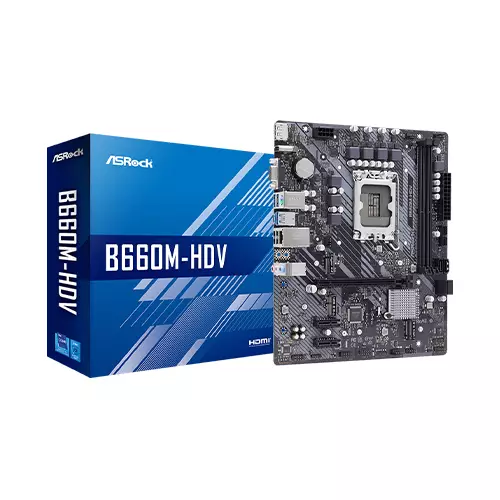

ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD
ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD
ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD - 1
ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD - 2
ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD - 3

ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P1172506034
Brand : ASRock
Model : B660M-HDV
Warranty : 3 Years
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • Micro ATX Form Factor
  • 6 Phase Power Design
  • Supports DDR4 5066MHz (OC)

SPECIFICATIONS

Processor

Supported CPU - Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)

- Digi Power design

- 6 Power Phase design

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Mainboard

Chipset - Intel B660
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH

Memory

Memory - Dual Channel DDR4 Memory Technology

- 2 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 64GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

Storage

Supported Storage CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors

Graphics

Graphics - Intel® Xe Graphics Architecture (Gen 12)

- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN - Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I219V

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports UEFI PXE

Audio & Microphone

Audio 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)

Supports Surge Protection

Ports

Slots CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Internal I/O Ports - 1 x COM Port Header

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

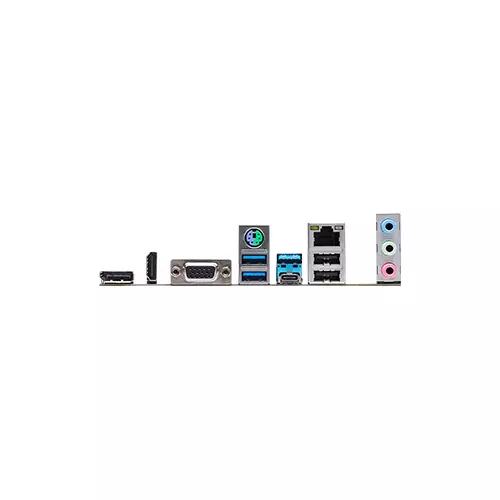

External I/O Ports - 2 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone
USB - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)\

- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Asrock B660M-HDV 13th Gen Motherboard in Bangladesh

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The ASRock B660M-HDV Price in BD is 13,100৳ . This ASROCK B660M-HDV 13TH GEN MICRO ATX INTEL MOTHERBOARD Manufacturing by ASRock Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock B660M-HDV by 13,100৳ and its regular price is 13,200৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
