ASRock B560M Steel Legend 10th and 11th Gen Micro ATX Motherboard
- Supports 10th Gen and 11th Gen Intel Core Processors
- Supports DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16
- Graphics Output: HDMI, DisplayPort
SPECIFICATIONS
Processor
Digi Power design
10 Power Phase design
Supports Intel® Turbo Boost Max 3.0 Technology
Mainboard
ACPI 6.0 Compliant wake-up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, Voltage Multi-adjustment
Memory
4 x DDR4 DIMM Slots
11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. the capacity of system memory: 128GB**
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
Storage
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
Graphics
Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports**
Networking & Connectivity
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Audio & Microphone
Supports Surge Protection
Gold Audio Jacks
15μ Gold Audio Connector
Nahimic Audio
Ports
10th Gen Intel Core Processors
1 x PCI Express 3.0 x16 Slot*
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
15μ Gold Contact in VGA PCIe Slot (PCIE1)
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Physical Specification
Warranty Information
DESCRIPTION

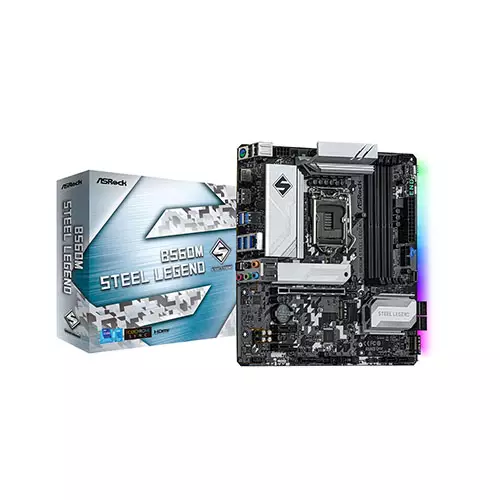

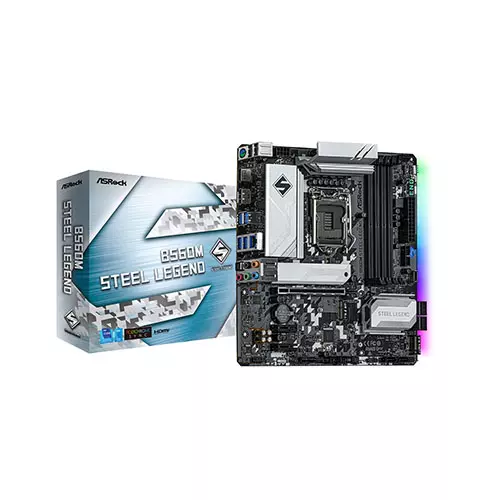

ASRock B560M Steel Legend Micro ATX Motherboard in Bangladesh
The ASRock B560M Steel Legend delivers unbeatable durability and stunning aesthetics. Built with the most demanding specs and features, the Steel Legend aims at both daily users and seasoned PC enthusiasts. Utilize a strong array of materials and components to ensure stable and reliable performance. Built for Intel Core processors, the B560M also supports DDR4 4800MHz (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. The durability and protection systems the B560M offers include a full Coverage M.2 heatsink which improves heat dissipation, also for durability there are Solid Steel PCIe Slots that provide support for PCIe components and prevent shearing. Get super fast and reliable connections with the new Dual USB 3.2 Gen2 ports to support your next-generation devices.
DR. MOS
Dr.MOS is the integrated power stage solution that is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
10 POWER PHASE DESIGN
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
PCI-E 4.0 HIGH-SPEED M.2 SOLUTION
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next-generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience.
USB 3.2 GEN2X2 TYPE-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as the previous generation, providing a blazing fast data transfer interface with a reversible USB Type-C design that fits the connector either way.
DRAGON 2.5 GB/S LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers, and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers, and backups.
POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis, and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
