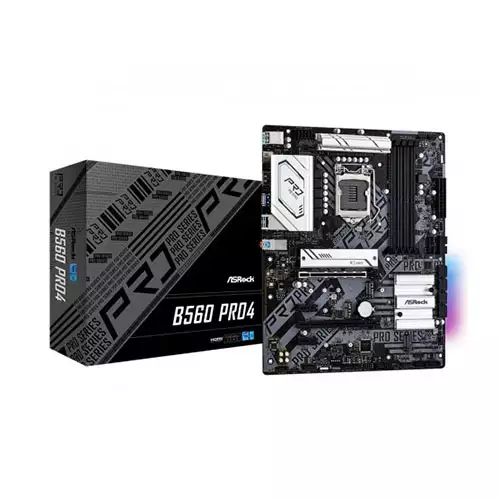

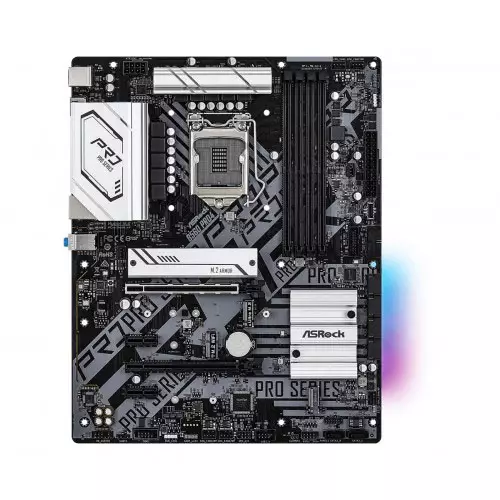

ASRock B560 Pro4 10th and 11th Gen ATX Motherboard
ASRock B560 Pro4 10th and 11th Gen ATX Motherboard
ASRock B560 Pro4 10th and 11th Gen ATX Motherboard - 1
ASRock B560 Pro4 10th and 11th Gen ATX Motherboard - 2

ASRock B560 Pro4 10th and 11th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062745
SKU : 90-MXBF10-A0UAYZ
Brand : ASRock
Model : ASRock B560 Pro4
Warranty : 3 Years
  • Name : ASRock B560 Pro4 10th and 11th Gen ATX Motherboard
  • Model : ASRock B560 Pro4
  • MPN : 90-MXBF10-A0UAYZ
  • Brand : ASRock

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
Digi Power design
8 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology

Mainboard

Chipset Intel B560
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment

Memory

Memory Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM Slots
Supported Memory - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Mamory Max. the capacity of system memory: 128GB

Storage

Supported Storage 6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

Graphics

Graphics 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

Networking & Connectivity

LAN 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Audio & Microphone

Audio Connector:
1 x Front Panel Audio Connector
Rear Panel I/O:
HD Audio Jacks: Line in / Front Speaker / Microphone

Ports

Slots PCI 11th Gen Intel Core Processors
2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))
10th Gen Intel Core Processors
2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))
2 x PCI Express 3.0 x1 Slots
M.2 Socket 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Internal I/O Ports Connector:
1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
External I/O Ports 3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
USB Connector:
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Rear Panel I/O:
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)

Physical Specification

Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Warranty Information

Warranty 03 Years

DESCRIPTION



ASRock B560 Pro4 Motherboard

8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Base Frequency Boost
(BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
RULE YOUR OWN LIGHTING
WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
