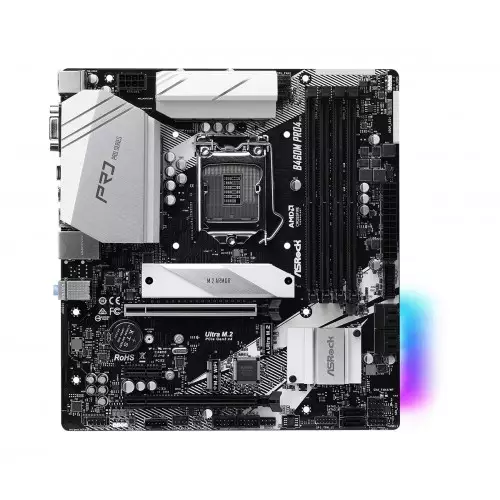

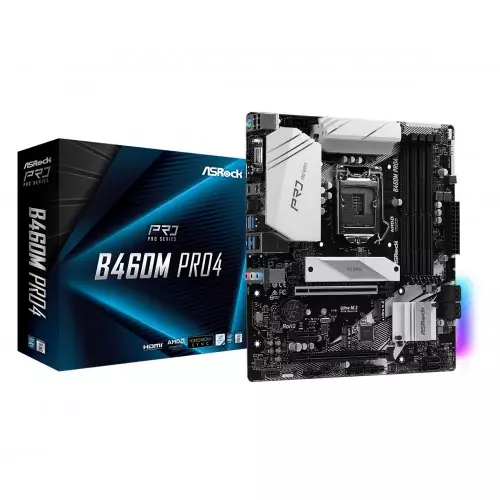

ASRock B460M Pro4 10th Gen DDR4 Motherboard
ASRock B460M Pro4 10th Gen DDR4 Motherboard
ASRock B460M Pro4 10th Gen DDR4 Motherboard - 1

ASRock B460M Pro4 10th Gen DDR4 Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061850
Brand : ASRock
Model : B460M Pro4
Warranty : 3 Years
  • Chipset Intel B460
  • 4 x DDR4 DIMM Slots
  • Supports 10th Gen
  • Micro ATX Form Factor

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors (Socket 1200)
Digi Power design
9 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology

Mainboard

Chipset Intel B460
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Storage

Supported Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug

Graphics

Graphics Graphics -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
-Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
-Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
-VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows OS
Max Shared Memory 128GB

Networking & Connectivity

LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Audio & Microphone

Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps
PCB Isolate Shielding
Individual PCB Layers for R/L Audio Channel
Nahimic Audio

Ports

Slots - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Internal I/O Ports - 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
External I/O Ports - 1 x Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Physical Specification

Form Factor Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
Solid Capacitor design

Warranty Information

Warranty 03 Years

DESCRIPTION

ASRock B460M Pro4 Motherboard


ASRock B460M Pro4 10th Gen DDR4 Motherboard supports 10th Gen Intel Core Processors (Socket 1200), 9 Power Phase Design, DDR4 2933MHz, 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi, AMD Quad CrossFireX and CrossFireX, HDMI, D-Sub, DisplayPort Graphics Output Options. This motherboard is featured with 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4), 7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C), Intel Gigabit LAN with Polychrome SYNC. On this motherboard, the Sound Tracker is a visual indicator that shows the directions from which predominant sounds are coming. Each sound is positioned correctly around a radar for full immersion during the game. With ASRock BFB (Boost Frequency Boost) Technology, users can install their non-K series CPUs on ASRock’s selected 400 series motherboards and enjoy an immediate base frequency boost from the hidden power of their processors. The new exclusive ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can also be synchronized across Polychrome RGB Sync-certified accessories. It also supports Intel Optane memory and Intel Optane storage technologies, which redefine the standard for high performance and responsiveness. This new ASRock B460M Pro4 DDR4 Motherboard has 03 3-year warranty.




REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock B460M Pro4 10th Gen DDR4 Motherboard Price in Bangladesh 2026 ?

The ASRock B460M Pro4 Price in BD is 43,500৳ . This ASRock B460M Pro4 10th Gen DDR4 Motherboard Manufacturing by ASRock Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock B460M Pro4 by 43,500৳ and its regular price is 45,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
