  • ASRock B460 Steel Legend 10th Gen Motherboard

ASRock B460 Steel Legend 10th Gen Motherboard - Product Details

Product Recommendations

Product Information

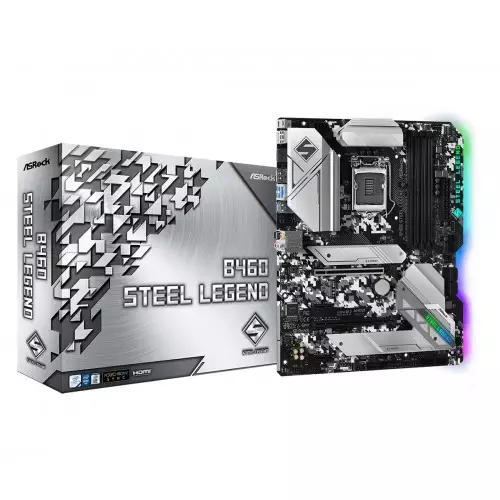

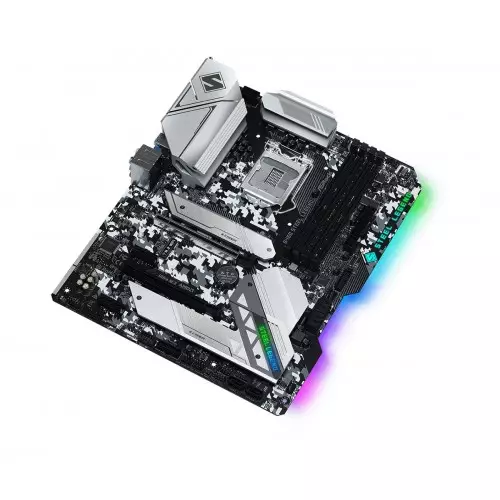

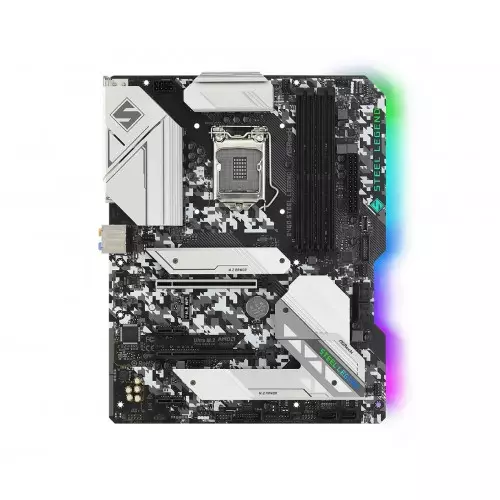

ASRock B460 Steel Legend 10th Gen Motherboard
ASRock B460 Steel Legend 10th Gen Motherboard-cover-thumbnail ASRock B460 Steel Legend 10th Gen Motherboard-1 ASRock B460 Steel Legend 10th Gen Motherboard-2

ASRock B460 Steel Legend 10th Gen Motherboard

Stock : Discontinued
PID : P00025061787
Brand : OTHERS
Model : B460 Steel Legend
Warranty : 3 years
0 Reviews
  • Supports 10th Gen
  • Chipset Intel B460
  • Dual Channel DDR4
  • 4 x DDR4 DIMM Slots
  • ASROCK B460 Steel Legend MOTHERBOARD

    CPU

    • - Supports 10th Gen Intel® Core Processors (Socket 1200)
    • - Digi Power design
    • - 9 Power Phase design
    • - Supports Intel® Turbo Boost Max 3.0 Technology
    Chipset
    •  - Intel® B460
    Memory

    • - Dual Channel DDR4 Memory Technology
    • - 4 x DDR4 DIMM Slots
    • - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
    • - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    • - Max. capacity of system memory: 128GB**
    • - Supports Intel® Extreme Memory Profile (XMP) 2.0
    • - 15μ Gold Contact in DIMM Slots

    • *Please refer to Memory Support List on ASRock's website for more information.
    • Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
    Graphics

    • - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
    • - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    • - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
    • - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    • - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    • - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    • - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    • - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
    • - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

    • *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    • **VP9 10bit and VC-1 are for decode only.
    Audio

    • - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    • - Premium Blu-ray Audio support
    • - Supports Surge Protection
    • - 110dB SNR DAC with Differential Amplifier
    • - PCB Isolate Shielding
    • - Individual PCB Layers for R/L Audio Channel
    • - Gold Audio Jacks
    • - 15μ Gold Audio Connector
    • - Nahimic Audio
    LAN

    • - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • - Dragon RTL8125BG
    • - Supports Dragon 2.5G LAN Software
    • - Smart Auto Adjust Bandwidth Control
    • - Visual User Friendly UI
    • - Visual Network Usage Statistics
    • - Optimized Default Setting for Game, Browser, and Streaming Modes
    • - User Customized Priority Control
    • - Supports Wake-On-LAN
    • - Supports Lightning/ESD Protection
    • - Supports Energy Efficient Ethernet 802.3az
    • - Supports PXE
    Slots

    • - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
    • - 2 x PCI Express 3.0 x1 Slots
    • - Supports AMD Quad CrossFireX™ and CrossFireX™
    • - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
    • - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    • *Supports NVMe SSD as boot disks
    Software and UEFI

    • Software
    • - ASRock Motherboard Utility (A-Tuning)
    • - ASRock Dragon 2.5G LAN Software
    • - ASRock Polychrome SYNC*
    • UEFI
    • - ASRock EZ Mode
    • - ASRock Full HD UEFI
    • - ASRock My Favorites in UEFI
    • - ASRock Instant Flash
    • - ASRock Internet Flash
    • - ASRock Easy RAID Installer
    Storage Interface

    • - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    • - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    • - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    • *If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    • **Supports Intel® Optane™ Technology (M2_1)
    • Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit
    Support CD
    • - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
    Connectors

    • - 1 x SPI TPM Header
    • - 1 x Chassis Intrusion and Speaker Header
    • - 2 x RGB LED Headers*
    • - 2 x Addressable LED Headers**
    • - 1 x CPU Fan Connector (4-pin)***
    • - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    • - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    • - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    • - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    • - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    • - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
    • - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel® B460) (Supports ESD Protection)
    • - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Intel® B460+ASMedia ASM1074 hub) (Supports ESD Protection)
    • - 1 x Front Panel Type C USB 3.2 Gen1 Header (ASMedia ASM1074 hub) (Supports ESD Protection)

    • *Support in total up to 12V/3A, 36W LED Strip

    • **Support in total up to 5V/3A, 15W LED Strip

    • ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    • ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    Rare Panel I/O

    • - 1 x Antenna Bracket
    • - 1 x PS/2 Mouse/Keyboard Port
    • - 1 x HDMI Port
    • - 1 x DisplayPort 1.4
    • - 1 x Optical SPDIF Out Port
    • - 2 x USB 2.0 Ports (Supports ESD Protection)
    • - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
    • - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
    • - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
    Accessories


    • - Quick Installation Guide, Support CD, I/O Shield
    • - 2 x SATA Data Cables
    • - 3 x Screws for M.2 Sockets
    • - 2 x Standoffs for M.2 Sockets
    H/W Monitoring

    • - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    • - CASE OPEN detection
    • - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCST, VCCIO, VCCSA
    BIOS

    • - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    • - ACPI 6.0 Compliant wake up events
    • - SMBIOS 2.7 Support
    • - CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment
    Unique Features

    • ASRock Super Alloy
    • - XXL Aluminum Alloy Heatsink
    • - Premium 60A Power Choke
    • - 50A Dr.MOS
    • - Combo Caps (Nichicon 12K Black Caps)
    • - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    • - Shaped PCB Design
    • - Matte Black PCB
    • - High Density Glass Fabric PCB 2.5G LAN
    • ASRock Steel Slots ASRock Full Coverage M.2 Heatsink
    • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC)
    • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    • ASRock Live Update & APP Shop
    Operating System
    • Support for Windows 10 64-bit

    Form Factor


    • - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    ASRock B460 Steel Legend Motherboard Comes with 03 years Warranty.

    ASROCK B460 Steel Legend Motherboard

    • Supports 10th Gen Intel® Core™ Processors(Socket 1200)
    • 9 Phase Dr.MOS Power Design
    • Supports DDR4 2933MHz
    • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2(Key E) For WiFi
    • AMD CrossFireX™
    • Graphics Output Options: HDMI, DisplayPort
    • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
    • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
    • 7 x USB 3.2 Gen1 (1 x Rear Type-C, 3 x Rear Type-A, 2 x Front, 1 x Front Type-C)
    • Dragon 2.5 Gigabit LAN
    • ASRock Polychrome SYNC


    Get Endless Performance Possibilities with Steel Style
    Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around the most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure stable and reliable performance. Similar best ASRock popular motherboard is now  ASROCK B660M PRO RS 12TH GEN DDR4 ATX INTEL MOTHERBOARD.


    Base Frequency Boost (BFB) Technology

    Whoever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non-K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. While ASRock BFB breathes life into non-K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

    RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

    ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis, and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

    Dragon 2.5 Gb/s LAN

    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.



    [product_table id="34" limit="10" type="filter" filter_category="6079"]

    What is the ASRock B460 Steel Legend 10th Gen Motherboard Price in Bangladesh 2025 ?

    The OTHERS B460 Steel Legend Price in BD is 0৳ . This ASRock B460 Steel Legend 10th Gen Motherboard Manufacturing by OTHERS Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you OTHERS B460 Steel Legend by 0৳ and its regular price is 0৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
