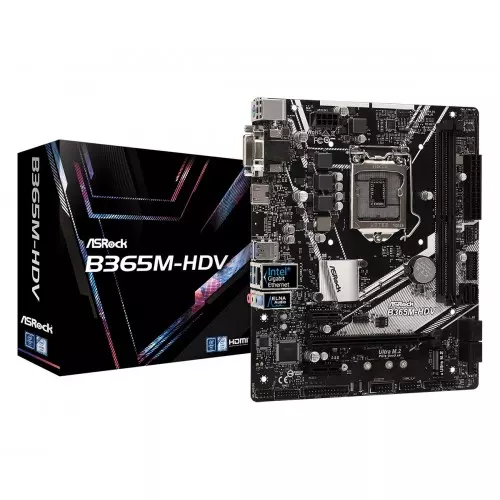

Asrock B365M-HDV 9th Gen Super Alloy Micro ATX Motherboard

0 Reviews

Stock : Discontinued

PID : P00025061114

Brand : ASRock

Model : Asrock B365M

Warranty : 3 Years

Supports 9th and 8th Gen
Supports DDR4 2666mhz
Intel Gigabit LAN
CH HD Audio

SPECIFICATIONS

Processor

Supported CPU - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- Supports Intel® Turbo Boost 2.0 Technology

Mainboard

Chipset Intel® B365

BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Storage

Supported Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Graphics

Graphics Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Networking & Connectivity

LAN -Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Audio & Microphone

Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
Supports Surge Protection
ELNA Audio Caps

Ports

Slots 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Internal I/O Ports 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Physical Specification

Form Factor Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
Solid Capacitor design

Warranty Information

Warranty 03 years warranty

DESCRIPTION

Asrock B365M HDV intel Motherboard

Specification :

●︎ Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)

●︎ DDR4 2666

●︎ 1 PCIe 3.0 x16, 2 PCIe 3.0 x1

●︎ Graphics Output Options: HDMI, DVI-D, D-Sub

●︎ CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps

●︎ 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

●︎ 6 USB 3.1 Gen1 (2 Front, 4 Rear)

●︎ Intel® Gigabit LAN

**03 years warranty

Related Video :

Asrock HDV Intel Motherboard

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
