ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD

ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
-100 % Out Of Stock
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD
Stock Status
Out Of Stock
Product ID
30034
Brand
Asus
Product modelTUF GAMING B760-PLUS WIFI D4
Warranty 3 Years
Total Reviews
 Based on 0 reviews. - Write a review
Based on 0 reviews. - Write a review

Out Of Stock

Add to Wish List Compare this Product
Short Description
  • Socket: LGA1700
  • Supported CPU: 12th & 13th Gen
  • Supported Memory: DDR4
  • Graphics Output: 1 x DisplayPort, 2 x HDMI
    • View details

    • Stock availability is subject to change. Please confirm availability before shopping by calling us.
    • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
    • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
    • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
    Processor
    Supported CPU Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Mainboard
    Chipset Intel B760 Chipset
    Memory
    Memory ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II
    Storage
    Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    Graphics
    Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
    Audio & Microphone
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover
    Networking & Connectivity
    LAN 1 x Intel 2.5Gb Ethernet
    TUF LANGuard
    WiFi Wi-Fi 6
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth Bluetooth v5.2
    Ports
    Slots 4 x DIMM
    Internal I/O Ports Fan and Cooling related

    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related

    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related

    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB

    1 x USB 3.2 Gen 2 connector (supports USB Type-C )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous

    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt (USB4) header

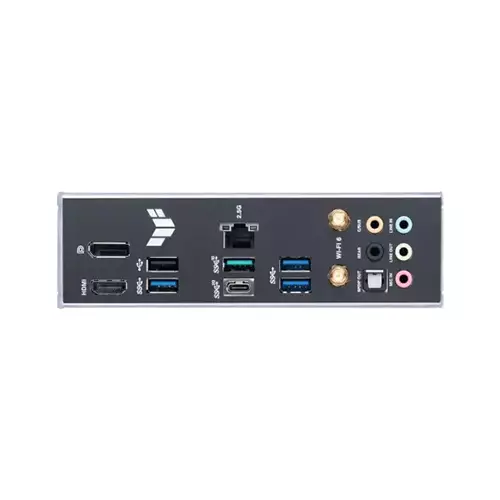

    Back Panel I/O Ports
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    USB Rear USB (Total 6 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    HDMI 1 x HDMI port
    Technical Info
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Physical Specification
    Form Factor ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
    Warranty Information
    Warranty 3 years warranty

    ASUS TUF GAMING B760-PLUS WIFI D4 MOTHERBOARD PRICE IN BD

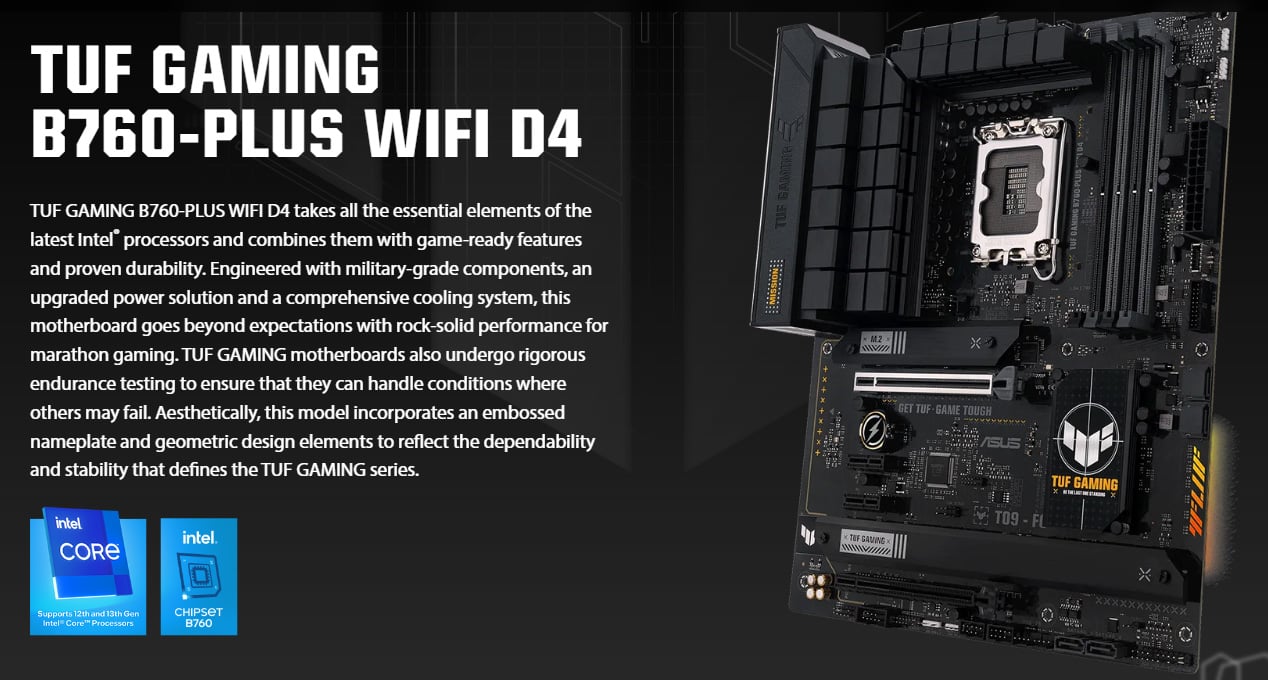

    The Asus TUF GAMING B760-In addition to WIFI D4 is a superior presentation ATX motherboard intended for gaming devotees and PC manufacturers who request top-level elements and sturdiness. This motherboard is worked to help both the twelfth and thirteenth-era Intel Center processors, as well as Pentium Gold and Celeron processors, with its Intel LGA 1700 attachment.

    The Asus TUF GAMING B760-In addition to WIFI D4 is its upgraded power arrangement, which incorporates 12+1 DrMOS power organizes, a six-layer PCB, 8+4 ProCool attachments, military-grade TUF parts, and Digi+ VRM. This guarantees most extreme sturdiness and steadiness, considerably under weighty burdens and overclocking. Thorough cooling is likewise fundamentally important with this motherboard, as it highlights expanded VRM heatsinks, M.2 heatsinks, PCH heatsinks, half and half fan headers, and Fan Savvy 4 innovation to hold temperatures under tight restraints and keep up with ideal execution during broadened gaming meetings.

    The Asus TUF GAMING B760-In addition to WIFI D4 likewise offers the most recent network choices, including a PCIe 5.0 opening, PCIe 4.0 M.2 spaces for super quick stockpiling, USB 3.2 Gen 2x2 Sort C for lightning-quick information moves, and a front board header for USB 3.2 Gen 2 Sort C and Thunderclap (USB4) for flexible availability choices. Intended for web based gaming, this motherboard highlights Intel WiFi 6 and Realtek 2.5Gb Ethernet for slack free and dependable web availability, as well as TUF LANGuard for improved network security against power floods and lightning strikes.

    This Asus TUF GAMING B760-In addition to WIFI D4 is its bi-directional simulated intelligence commotion wiping out, which decreases foundation clamor from the mouthpiece and sound result for perfectly clear correspondence during gaming or video conferencing.

    Review

    Get specific details about this product from customers who own it.

    What is the ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD Price in Bangladesh 2024?

    The Asus TUF GAMING B760-PLUS WIFI D4 Price in BD is 0৳ in Today's 2024-04-28 Market. This ASUS TUF GAMING B760-PLUS WIFI D4 12TH & 13TH GEN ATX MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus TUF GAMING B760-PLUS WIFI D4 by 0৳ and its regular price is 0৳ Which is also Out Of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
    Tags: Asus , Tuf Gaming , B760-plus , Wifi Motherboard , Motherboard , Gaming Motherboard , Intel Motherboard , B760-plus Motherboard Price in BD
