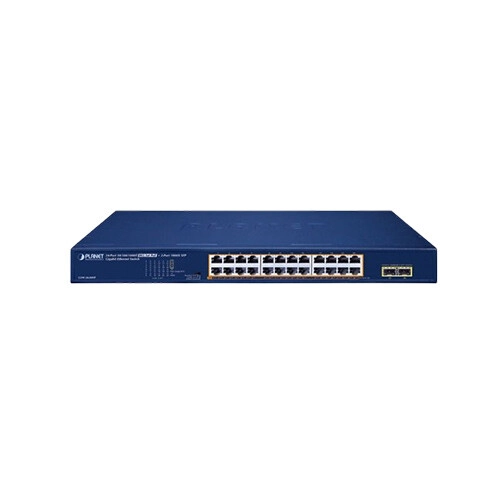

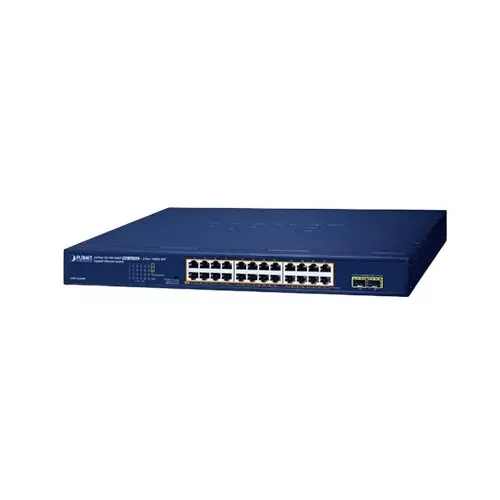

Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch - 1
Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch - 2

Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

0 Reviews
Stock : In Stock
PID : P8142608004
Brand : Planet
Model : GSW-2620HP
Warranty : No Warranty
  • Ports: 24x GbE PoE+ (250W budget), 2x SFP
  • PoE Tech: 30W/port, PD Alive Check, 250m Extend
  • Switching: 8K MAC, 9K Jumbo, Port Isolation, DIP Switch
  • Hardware: 19" 1U, EEE Energy-Saving, LEDs compact

Product Pricing

Discount Price

৳24,000 ৳25,000
+ Available Payment Method

EMI Start From*

৳845

SPECIFICATIONS

Networking & Connectivity

MAC Address Table 8K entries
Bandwidth 52Gbps/non-blocking
Jumbo Frame 9216 bytes
Networks IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet

Battery And Power

Power Supply 100~240V AC, 50/60Hz, 5A max.
Power Consumption Max. 272 watts/928 BTU

Others

Other Features 10/100/1000BASE-T Copper Ports 24 auto-MDI/MDI-X ports
802.3af/802.3at PoE+ Injector Port 24
1000BASE-X SFP/mini-GBIC Slots 2
DIP Switch: Selectable operation mode
　Standard
　VLAN
　Extend
Thermal Fan :2
Protection: 6KV surge protection
8KV ESD protection
witch Architecture: Store-and-Forward
Flow Control: IEEE 802.3x pause frame for full duplex; back pressure for half duplex
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with IEEE 802.3af Power over Ethernet
PoE Power Supply Type End-span: 1/2 (+), 3/6 (-)
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PD Alive Check Yes
PoE Power Budget 250 watts
Number of PDs, 7 watts 24
Number of PDs, 15.4 watts 16
Number of PDs, 30 watts 8
Regulatory Compliance FCC Part 15 Class A, CE
DIP Switch Selectable operation mode
　Standard
　VLAN
　Extend

Physical Specification

Operating Temperature Temperature: 0 ~ 50 degrees C
Weight 2.440KG
Dimension 441 x 207 x 44 mm (1U height)
Storage Temperature Temperature: -10 ~ 70 degrees C

Technical Info

LED Indicators Power (Green) PoE Usage 80% (Green)
10/100/1000T RJ45 Interfaces (Ports 1 to 24)
　10/100/1000 LNK / ACT (Green), PoE-in-Use (Amber)
1000X SFP Interfaces (Ports 25 to 26)
　1000 LNK / ACT (Green)

DESCRIPTION

Planet GSW-2620HP PoE Switch Price in BD

The Planet GSW-2620HP is a professional Gigabit Ethernet Switch designed to provide reliable wired networking and efficient PoE+ power delivery for modern business and surveillance environments. It features 24 × 10/100/1000T Ethernet ports with IEEE 802.3at PoE+ support, allowing compatible devices such as IP cameras, wireless access points, VoIP phones, and other powered network equipment to receive both data and power through a single Ethernet cable. The switch also includes 2 × 1000X SFP ports, providing flexible fibre uplink options for connecting to backbone networks or extending network connectivity over longer distances. Gigabit Ethernet support enables high-speed data transfer between connected devices, making the switch suitable for file sharing, network applications, surveillance traffic, and other bandwidth-demanding workloads. The combination of multiple PoE+ ports and SFP uplinks provides a convenient way to expand network infrastructure while reducing cabling complexity for supported devices. Its practical port configuration makes it suitable for offices, businesses, CCTV deployments, and other professional networking setups. Customers can check the latest Planet GSW-2620HP price in BD and availability at Tech Land BD.

Why Buy Planet GSW-2620HP From Tech Land BD?

The Planet GSW-2620HP is a practical choice for network installations that need many Gigabit PoE+ connections and fibre uplink capability. Its 24 PoE+ ports and 2 SFP ports provide flexible connectivity for IP cameras, access points, VoIP devices, and other network equipment. Customers searching for the best price in Tech Land BD can consider this switch for reliable business and surveillance networking. Check the latest price in BD at Tech Land BD before purchasing.

FAQs

How many PoE ports does the Planet GSW-2620HP have?
It has 24 × 10/100/1000T PoE+ ports.
Does it have SFP ports?
Yes, it includes 2 × 1000X SFP ports.
Which PoE standard does it support?
It supports IEEE 802.3at PoE+.
