Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch
Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch

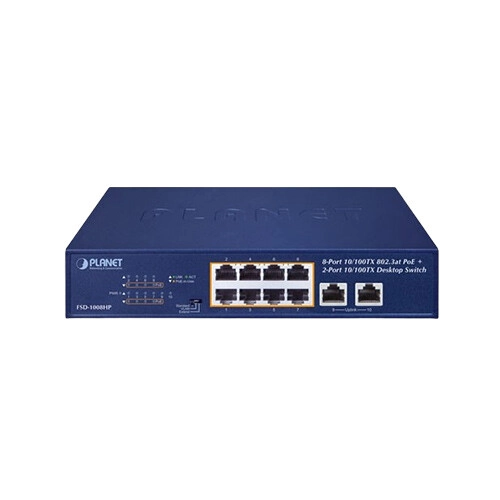

Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch - 1

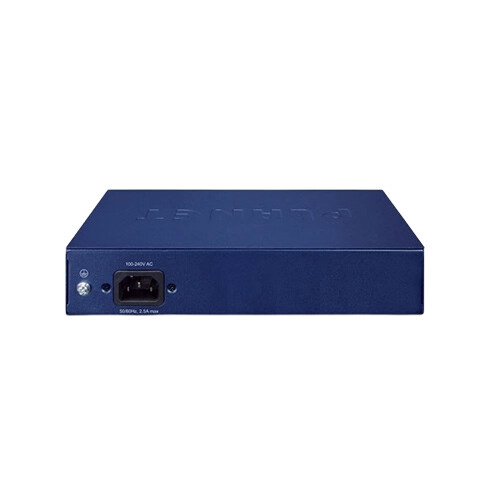

Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch - 2

Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch

0 Reviews
Stock : In Stock
PID : P8142609001
Brand : Planet
Model : FSD-1008HP
Warranty : No Warranty
  • Ports: 10x 10/100 Ethernet (8x PoE+)
  • Power: 120W total budget (30.8W/port max)
  • Range: Up to 250m distance mode (10Mbps)
  • Design: 9-inch rackmountable, fanless desktop build

Product Pricing

Discount Price

৳7,000 ৳8,000
+ Available Payment Method

EMI Start From*

৳246

SPECIFICATIONS

Networking & Connectivity

MAC Address Table 1K entries, automatic source address learning and aging
Bandwidth 2Gbps/non-blocking
Jumbo Frame 1522 bytes
Networks IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)

Battery And Power

Inputs AC 100~240V, 50/60Hz, 2.5A max.
Power Supply PoE Standard: IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span
PoE Power Output: Per port 54V DC, 540mA. max. 30 watts
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: 120 watts
Max. Number of Class 2 PDs: 8
Max. Number of Class 3 PDs: 8
Max. Number of Class 4 PDs: 4
Power Consumption Max. 127 watts/433.3 BTU

Others

Other Features Copper Port: 10 10/100/BASE-TX MDI/MDIX Ports
PoE Injector Port: 8-port with 802.3af/at PoE injector function with Port-1 to Port-8
Switch Architecture: Store-and-Forward
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
DIP Switch: Selectable operation mode
　Standard
　VLAN
　Extend
Enclosure: Metal
Thermal Fan: Fanless
ESD Protection: ±8KV air gap discharge
±6KV contact discharge
Surge Protection: ±4KV

Physical Specification

Environment Operating:
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage:
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Weight 1.166KG
Dimension 220 x 150 x 44 mm (1U height)

Technical Info

LED Indicators system: Power (Green)
10/100BASE-TX RJ45 interfaces: 10/100Mbps LNK/ACT (Green)
PoE interfaces: PoE-in-Use (Amber)

Warranty Information

Warranty 1 Year

DESCRIPTION

Planet FSD-1008HP Price in BD

The PLANET FSD-1008HP is an 8-Port 10/100TX 802.3at PoE+ desktop switch designed to provide reliable data connectivity and centralised power delivery for IP cameras, wireless access points, IP phones, and other PoE devices. It features eight 10/100BASE-TX PoE ports with up to 30W power output per port and a total PoE budget of 120W. Two additional 10/100TX ports work as uplinks for connecting NVRs, servers, NAS devices, or other network equipment. The switch provides a 2Gbps non-blocking switch fabric and 1.48Mpps throughput for efficient Fast Ethernet traffic handling. Its DIP switch offers Standard, VLAN, and Extend modes, while Extend mode enables PoE transmission up to 250 meters at 10Mbps. The fanless metal enclosure supports quiet operation and convenient desktop or rack installation. Tech Land BD offers this practical PoE solution at a competitive price in BD.

Why Buy Planet FSD-1008HP From Tech Land BD?

Choose the PLANET FSD-1008HP from Tech Land BD for an efficient networking solution that combines Ethernet connectivity and PoE power in one compact device. Its 120W power budget, VLAN isolation, extended transmission capability, and two dedicated uplink ports make it suitable for small offices, surveillance systems, and wireless network deployments. Tech Land BD offers the best price for customers seeking dependable PLANET networking equipment with practical installation features and professional performance.

FAQs

How many PoE ports does the FSD-1008HP have?
It has eight 10/100TX PoE ports that support the IEEE 802.3af and 802.3at PoE standards.
What is the total PoE budget?
The switch provides a total PoE budget of 120W, with up to 30W available per PoE port.
What is Extend mode used for?
Extend mode supports PoE transmission up to 250 meters at 10Mbps, making it useful for installations where devices are located far from the switch.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch Price in Bangladesh 2026 ?

The Planet FSD-1008HP Price in BD is 7,000৳ . This Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch Manufacturing by Planet Comes With No Warranty Warranty & Based on 0 reviews. Tech Land BD Offers you Planet FSD-1008HP by 7,000৳ and its regular price is 8,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
