Planet GS-2210-24P2S 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
- Ports: 24x GbE PoE+ (260W budget), 2x SFP
- L2 & QoS: VLAN, Trunking, 8K MAC, 802.1p/DSCP, IGMP
- PoE Tech: 32W/port, 250m Extend, Schedule, Alive Check
- Mgmt: Web, Telnet, Cable Diag, NMS
Product Pricing
EMI Start From*
SPECIFICATIONS
Networking & Connectivity
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
Battery And Power
PoE Power Budget: 260 watts (max.)
Power Pin Assignment: 1/2(+), 3/6(-)
Others
IEEE 802.3x pause frame for full duplex
Port Configuration: EEE Green energy savings disable/enable
Port disable/enable/reboot
Flow control disable/enable
Bandwidth control on each port
Port loopback protection
Port Status :Display each port’s speed duplex mode,
Display link status
Display flow control status
Display auto negotiation status
Display Green energy saving status
Port Mirroring: In / Out / All
Many-to-1 monitor
VLAN: 802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control: TX/RX/Both
Link Aggregation static trunk
Supports 8 groups with 8 ports per trunk group
QoS 8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS/ToS
IPv4 DSCP
Port-based WRR
Multicast :IPv4 IGMP v1/v2 snooping
Up to 256
Security Functions
Security Port isolation
DHCP Snooping
Switch Management Functions
System Configuration Telnet, Web browser
Management: Authentication for IPv4 Telnet user name and password
Telnet
Cable Diagnostics
IP address or domain name Ping Test
NTP (Network Time Protocol)
PLANET Smart Discovery Utility
PLANET NMS
PLANET NMSViewerPro
Standard Conformance
Regulatory Compliance: FCC Part 15 Class A, CE
Standards Compliance :IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
Physical Specification
Warranty Information
DESCRIPTION
Planet GS-2210-24P2S PoE Switch Price in BD

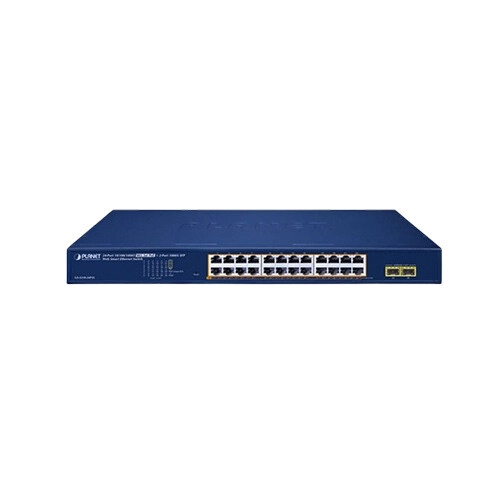

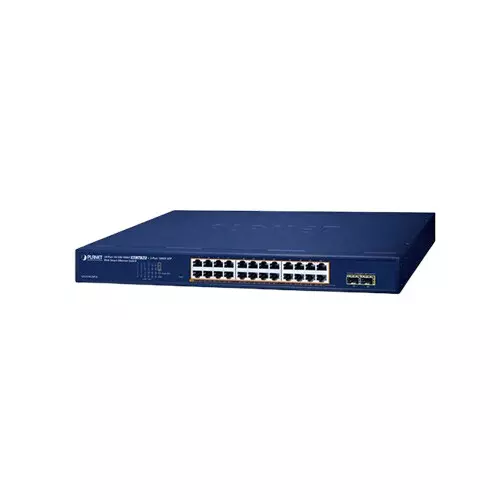

The Planet GS-2210-24P2S is a professional Web Smart Ethernet Switch designed to provide reliable Gigabit networking and PoE connectivity for business, surveillance, and enterprise network environments. It features 24 × 10/100/1000T Ethernet ports with IEEE 802.3at PoE+ support, allowing compatible network devices such as IP cameras, wireless access points, and VoIP equipment to receive both network connectivity and power through a single Ethernet cable. The switch also includes 2 × 1000X SFP ports, providing flexible fibre uplink connectivity for extending network infrastructure over longer distances. Its Web Smart management capability allows administrators to configure and monitor essential network functions through a user-friendly web interface. Gigabit Ethernet support helps deliver efficient data transfer between connected devices, while the combination of copper ports, PoE+, and SFP uplinks makes the switch suitable for structured network deployments. For organisations looking for a manageable PoE switch with extensive port capacity, the Planet GS-2210-24P2S is a practical solution. Customers can check the latest Planet GS-2210-24P2S price in BD and availability at Tech Land BD.
Why Buy Planet GS-2210-24P2S From Tech Land BD?
The Planet GS-2210-24P2S is a strong choice for businesses, offices, surveillance installations, and network infrastructure requiring multiple Gigabit PoE connections. Its 24 PoE+ ports and 2 SFP uplinks provide flexible connectivity for powered devices and fibre-based network expansion. The Web Smart management features also make network administration more convenient. Customers searching for the best price in Tech Land BD can consider this switch for professional networking requirements. Check the current price in BD at Tech Land BD before purchasing.
FAQs
How many PoE ports does the Planet GS-2210-24P2S have?
Does it support SFP connectivity?
What PoE standard does it support?
