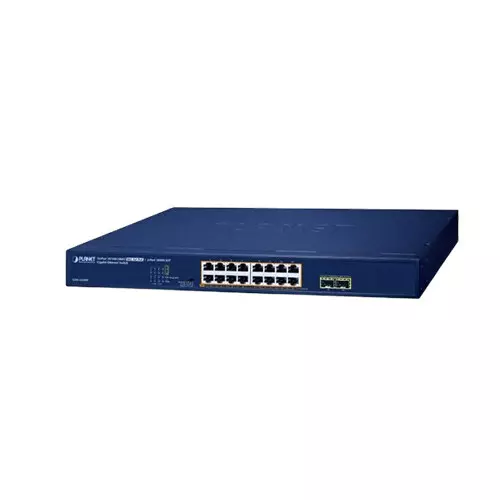

Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch - 1
Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch - 2

Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

0 Reviews
Stock : In Stock
PID : P8142608006
Brand : Planet
Model : GSW-1820HP
Warranty : No Warranty
  • Ports: 16x GbE PoE+ (250W budget), 2x SFP
  • PoE Tech: 30W/port, PD Alive Check, 250m Extend
  • Switching: 8K MAC, 9K Jumbo, Port Isolation, DIP Switch
  • Hardware: 19" 1U Metal, EEE Energy-Saving, LEDs

Product Pricing

Discount Price

৳16,000 ৳17,000
+ Available Payment Method

EMI Start From*

৳563

SPECIFICATIONS

Networking & Connectivity

MAC Address Table 8K entries
Bandwidth 36Gbps/non-blocking
Jumbo Frame 9216 bytes
Networks IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet

Battery And Power

Power Supply 100~240V AC, 50/60Hz,5A max.
Power Consumption Max. 262 watts/893 BTU

Others

Other Features 10/100/1000BASE-T Copper Ports 16 auto-MDI/MDI-X ports
802.3af/802.3at PoE+ Injector Port 16
1000BASE-X SFP/mini-GBIC Slots 2
DIP Switch Selectable operation mode
　Standard
　VLAN
　Extend
Thermal Fan 2
Protection 6KV surge protection
8KV ESD protection
Flow Control IEEE 802.3x pause frame for full duplex; back pressure for half duplex
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with IEEE 802.3af Power over Ethernet
PoE Power Supply Type End-span: 1/2 (+), 3/6 (-)
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PD Alive Check Yes
PoE Power Budget 250 watts
Number of PDs, 7 watts 16
Number of PDs, 15.4 watts 16
Number of PDs, 30 watts 8

Technical Info

LED Indicators System:
　Power (Green) PoE Usage 80% (Green)
10/100/1000T RJ45 Interfaces (Ports 1 to 16)
　10/100/1000 LNK / ACT (Green), PoE-in-Use (Amber)
1000X SFP Interfaces (Ports 17 to 18)
　1000 LNK / ACT (Green)

DESCRIPTION

Planet GSW-1820HP PoE Switch Price in BD

The Planet GSW-1820HP is a Gigabit Ethernet Switch designed to deliver dependable wired connectivity and PoE+ power for business networks, surveillance systems, and other professional installations. It features 16 × 10/100/1000T Ethernet ports with IEEE 802.3at PoE+ support, enabling compatible devices such as IP cameras, wireless access points, VoIP phones, and other powered network equipment to receive both data and power through a single Ethernet cable. The switch also provides 2 × 1000X SFP ports, giving network administrators flexible fibre uplink options to connect to network backbones or extend connectivity over longer distances. Gigabit Ethernet support enables efficient high-speed data transfer between connected devices, making it suitable for network applications, file sharing, surveillance traffic, and internet connectivity. With multiple PoE+ ports and SFP uplinks, the switch simplifies network deployment while providing convenient connectivity for compatible powered devices. The 16-port configuration offers a practical balance between capacity and installation requirements for offices, businesses, CCTV systems, and other structured networking environments. Customers can check the latest Planet GSW-1820HP price in BD and availability at Tech Land BD.

Why Buy Planet GSW-1820HP From Tech Land BD?

The Planet GSW-1820HP is a strong choice for network installations that need multiple Gigabit PoE+ connections plus fibre uplink capability. Its 16 PoE+ ports and 2 SFP ports provide flexible connectivity for IP cameras, access points, VoIP devices, and other compatible equipment. For customers looking for the best price in Tech Land BD, this switch offers a practical way to expand professional wired networks. Check the latest price in BD at Tech Land BD before purchasing.

FAQs

How many PoE ports does the Planet GSW-1820HP have?
It has 16 × 10/100/1000T PoE+ ports.
Does it support SFP connectivity?
Yes, it features 2 × 1000X SFP ports.
Which PoE standard does it support?
It supports IEEE 802.3at PoE+.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch Price in Bangladesh 2026 ?

The Planet GSW-1820HP Price in BD is 16,000৳ . This Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch Manufacturing by Planet Comes With No Warranty Warranty & Based on 0 reviews. Tech Land BD Offers you Planet GSW-1820HP by 16,000৳ and its regular price is 17,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
