MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard
MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard

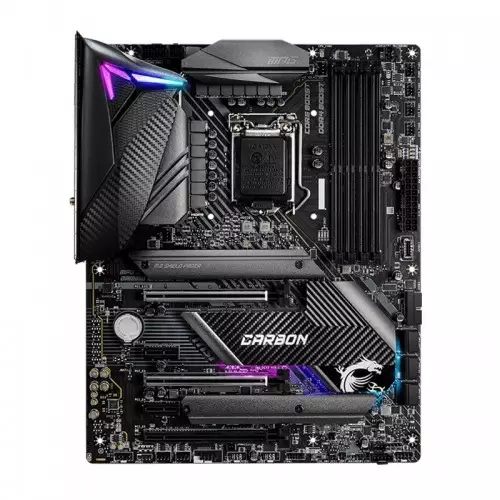

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard - 1
MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard - 2

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062364
Brand : MSI
Model : Z490 Gaming Carbon Wi-Fi
Warranty : 3 Years
  • Chipset: Intel Z490 Chipset
  • LAN: Realtek RTL8125B
  • Audio: Realtek ALC1220 Codec
  • ATX Form Factor: 12 in. x 9.6 in

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket

Mainboard

Chipset Intel Z490 Chipset

Memory

Memory Type: Dual-Channel mode
Slots: 4x DDR4 memory slots
Supported Memory: Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4500+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory: support up to 128GB

Storage

Supported Storage Intel Z490 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Sma

Graphics

Graphics Graphics: 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
MULTI-GPU
Supports 2-Way NVIDIA SLI Technology
Supports 3-Way AMD CrossFire Technology
Max Shared Memory: 1GB

Networking & Connectivity

LAN 1x Realtek RTL8125B 2.5Gbps LAN controller

Audio & Microphone

Audio Realtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Ports

Slots PCI 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
2x PCIe 3.0 x1 slots
M.2 Socket 2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage device
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
1x Serial port connector
1x TPM module connector
1x RTD3 connector
1x Clear CMOS jumper
1x TBT connector
USB Intel Z490 Chipset
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia ASM3241 Chipset
1x USB 3.2 Gen 2x2 20Gbps port on the back panel
HDMI 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz

Physical Specification

Form Factor ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI Z490 Gaming Carbon Wi-Fi Motherboard

Features

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5000(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • M.2 Shield Frozr: Both M.2 slots with Shield Frozr to built for high performance system and non-stop gaming experience
  • Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
03 years warranty

Related Video:


MSI Z490 Gaming Carbon Wi-Fi Motherboard

The MSI MPG series motherboard brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. In this motherboard, the LED strip that provides convenient in-game and real time notifications. The MPG series, transform your equipment into the center of attention and top leaderboards in style. The MSI MPG Z490 Gaming Plus ATX Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz, Lightning Gen 4 Solution for the future. This motherboard also comes with Enhanced Power Design 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost. In this motherboard Premium Thermal Solution extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience. In this motherboard, it has 2.5G LAN with LAN Manager that upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here the Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It is also Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. Here, The thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed with MSI motherboards.

[product_table id="34" limit="10" type="filter" filter_category="7270"]


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard Price in Bangladesh 2026 ?

The MSI Z490 Gaming Carbon Wi-Fi Price in BD is 3,330৳ . This MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI Z490 Gaming Carbon Wi-Fi by 3,330৳ and its regular price is 444,440৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
