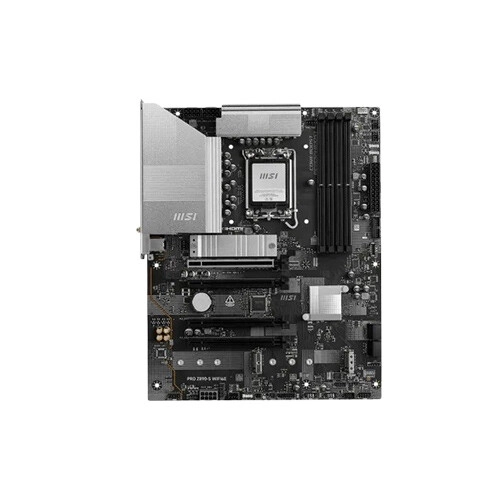

MSI PRO Z890-S LGA 1851 WIFI 6E ATX Motherboard
- CPU Support: Intel Core Ultra Series 2 LGA1851
- DDR5 Memory: 4 Slots Up to 256GB 8800MT/s OC
- Display Output: HDMI 2.1 & DisplayPort 1.4
- Connectivity: 3x M.2 5G LAN WiFi 6E BT 5.3
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Intel Core Ultra Processors (Series 2)
INTEL Z890
Memory
Memory Type: DDR5
Number of Memory Slots: 4
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
1DPC 1R Max speed up to 8800+ MT/s
1DPC 2R Max speed up to 7200+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Maximum Memory: 256GB
Storage
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Graphics
1x HDMI 2.1
1x DisplayPort 1.4
Networking & Connectivity
Realtek 8125D 2.5Gbps LAN
Wi-Fi 6E module
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Audio & Microphone
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Ports
PCI
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Software
Support for Windows 11 64-bit
Special Features
Unique Feature: 4x EZ Debug LED
Physical Specification
1x TPM pin header(Support TPM 2.0)
1.64Kg
Warranty Information
3 Years
DESCRIPTION
MSI PRO Z890-S LGA 1851 WIFI6E ATX Motherboard Price in BD
The MSI PRO Z890-S LGA 1851 WIFI6E ATX Motherboard is a reliable and advanced motherboard designed for professional users, creators, and high-performance PC builders. Powered by the Intel Z890 chipset with LGA 1851 socket support, it is compatible with Intel Core Ultra Processors Series 2, delivering excellent speed and efficiency for modern computing needs. The motherboard supports DDR5 memory with high-speed performance up to 8800 MT/s and overclocking capability, allowing smooth multitasking and improved system responsiveness. It features PCIe 5.0 expansion, three M.2 slots, 5Gbps LAN, WiFi 6E, and Bluetooth 5.3 for fast storage and seamless connectivity. The optimized power design, durable components, and advanced thermal solutions provide stable operation during demanding workloads. Customers looking for the MSI PRO Z890-S LGA 1851 WIFI6E ATX Motherboard price in BD can purchase from Tech Land BD for genuine MSI products, competitive pricing, official warranty support, and dependable customer service.
Why Buy From Tech Land BD?
For the best MSI PRO Z890-S LGA 1851 WIFI6E ATX Motherboard price in BD, Tech Land BD offers a trusted shopping experience with authentic computer components. Customers can benefit from competitive pricing, secure ordering, expert technical guidance, fast nationwide delivery, and reliable after-sales support. Whether you are creating a professional workstation, upgrading your existing PC, or building a future-ready system, Tech Land BD ensures quality products with dependable service and customer satisfaction.
FAQ
Q1: Which processors are supported by the MSI PRO Z890-S motherboard?
A: It supports Intel Core Ultra Processors Series 2 with the LGA 1851 socket for powerful performance and efficiency.
Q2: Does this motherboard support DDR5 RAM?
A: Yes, it supports DDR5 UDIMM memory with speeds up to 8800 MT/s through overclocking and up to 256GB capacity.
Q3: What connectivity options are available on this motherboard?
A: It includes WiFi 6E, Bluetooth 5.3, 5Gbps LAN, three M.2 slots, HDMI 2.1, and DisplayPort 1.4 support.
