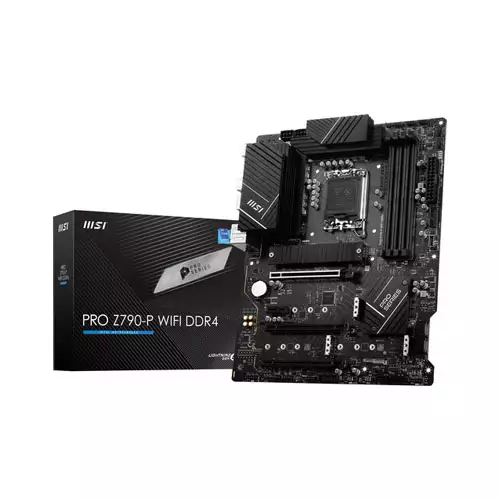

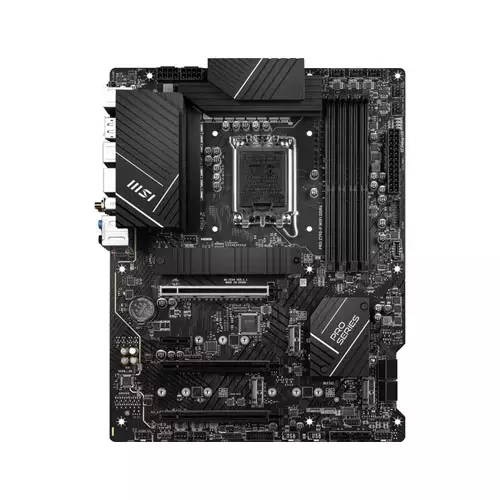

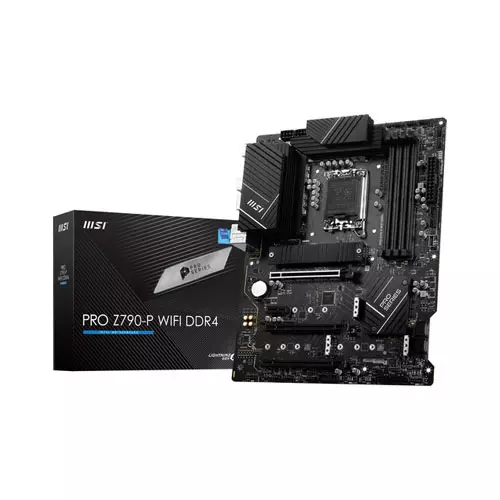

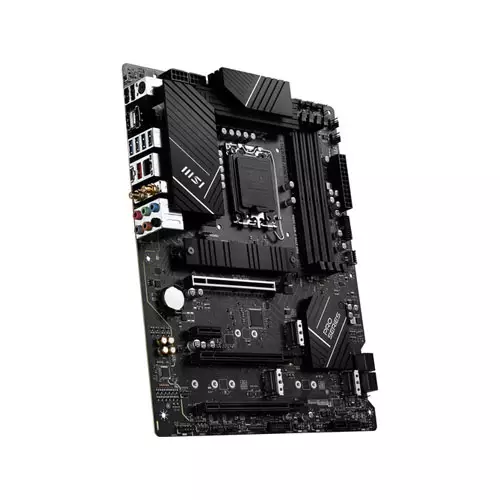

MSI PRO Z790-P WIFI DDR4 LGA 1700 ATX MOTHERBOARD
- ATX Form Factor
- Intel Z790 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR4
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Mainboard
Memory
Storage
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
Graphics
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio & Microphone
Ports
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x16 (x1 mode)
1 x PCIe 3.0 x1
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Physical Specification
Warranty Information
DESCRIPTION
MSI PRO Z790-P WIFI MOTHERBOARD in Bangladesh
Get ample connectivity and performance with the PRO Z790-P WIFI DDR4 LGA 1700 ATX Motherboard from MSI. Utilizing the Intel Z790 chipset and LGA 1700 socket, this ATX motherboard sports four DDR4 RAM slots supporting dual channel memory and speeds up to 5333 MHz when overclocked. Six SATA III and four M.2 interfaces provide room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals in a flash using Bluetooth 5.2.

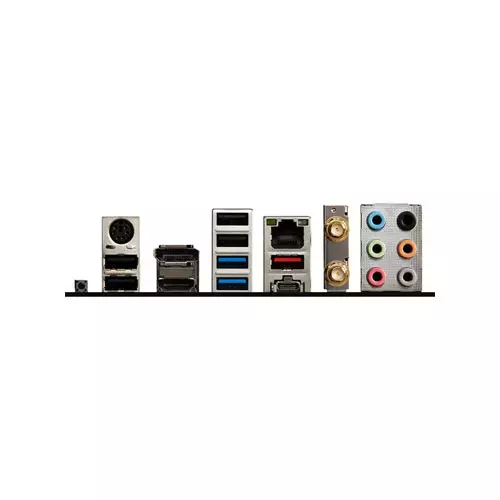

The Realtek ALC897 audio codec supports 7.1 channel surround sound, while rear ports allow for analog output. Connect wired peripherals via a USB 3.2 Gen 2, two Gen 1, and four USB 2.0 Type-A ports, or via a USB 3.2 Gen 2x2 Type-C port. A PS/2 port is also present, allowing for connections to legacy peripherals. Output video via DisplayPort and HDMI. The rear I/O panel also sports a Flash BIOS button, while internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more.
REVIEWS
Login to write a review.
Overall Rating
The motherboard feels sturdy and has a clean layout. I used my existing DDR4 RAM, so I did not need to spend extra on a memory upgrade. Very happy with it.
09 June, 2026
