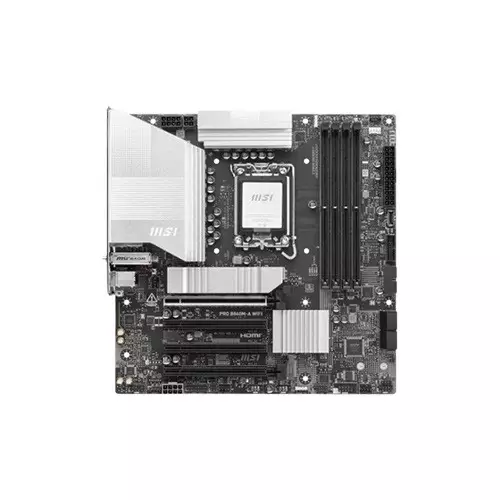

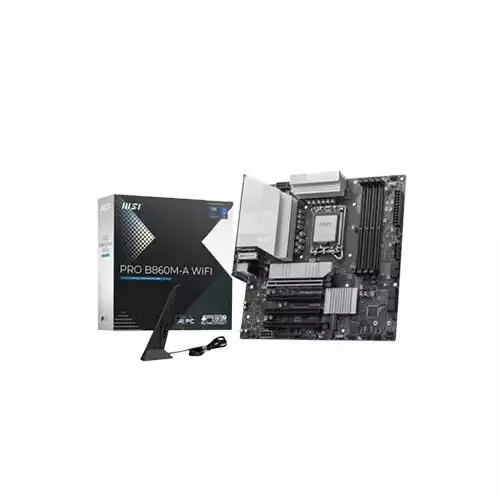

MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard - 1
MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard - 2

MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard

1 Reviews
Stock : In Stock
PID : P0402506488
Brand : MSI
Model : PRO B860M-A WIFI
Warranty : 3 years
  • Chipset - INTEL B860
  • Form Factor - Micro- ATX
  • Socket - LGA 1851
  • LAN - Realtek 8126 5Gbps

Product Pricing

Discount Price

৳25,500 ৳27,800
+ Available Payment Method

EMI Start From*

৳898

SPECIFICATIONS

Processor

Supported CPU Supports Intel Core Ultra Processors (Series 2)

Mainboard

Chipset INTEL B860

Memory

Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8600 - 6400 (OC)

MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8600+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 4800+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel® XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

Display

Display 1x DisplayPort

Support DisplayPort 1.4,

maximum resolution of 4K 60Hz

1x Type-C DisplayPort

Thunderbolt 4 port,

supporting DisplayPort 2.1 with

UHBR20 over USB Type-C,

with a maximum resolution of

4K120Hz / 8K60Hz

Networking & Connectivity

LAN Realtek 8126 5Gbps LAN
WiFi Intel Wi-Fi 7

The Wireless module is

pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX,

2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

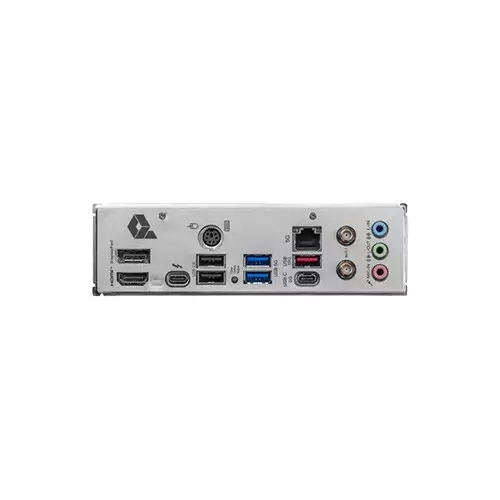

Ports

I/O Port 1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports
PCI Card Slot 4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16
(From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1
(From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1
(From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4
(From Chipset)
Slots 4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
USB 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

1x USB 5Gbps Type C (Rear)

4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)
HDMI 1x HDMI

Support HDMI 2.1,

maximum resolution of 4K 60Hz

Special Features

Audio/Video Features Realtek ALC897 Codec
7.1-Channel High Definition Audio

Physical Specification

Color Black
Form Factor Micro- ATX

Technical Info

Model PRO B860M-A WIFI
Supported Sockets LGA 1851

Warranty Information

Warranty 3 years

DESCRIPTION

MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard in Bangladesh

MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard is a versatile and high-performance motherboard designed for professionals and enthusiasts, now available at Tech Land BD in Bangladesh. Built to support the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, this Micro ATX motherboard combines power and efficiency with its Intel B860 chipset. It features four DDR5 UDIMM slots, supporting up to 256GB of memory with speeds ranging from 4800 MT/s (JEDEC) to 8600 MT/s (overclocked), and Intel® XMP 3.0 support for enhanced performance. The motherboard offers excellent connectivity options, including Intel Wi-Fi 7 with speeds up to 5.8Gbps, a Realtek 8126 5Gbps LAN port, and a Thunderbolt 4 USB Type-C port supporting DisplayPort 2.1 for resolutions up to 8K 60Hz. It also includes multiple display outputs, such as HDMI 2.1 (4K 60Hz) and DisplayPort 1.4 (4K 60Hz). Storage options are robust, with support for multiple M.2 and SATA devices, ensuring ample space for your data. The Realtek ALC897 codec delivers 7.1-channel high-definition audio, enhancing your multimedia experience. Despite its compact Micro ATX form factor, it provides extensive expansion options, including four PCIe slots and multiple USB ports (including USB 10Gbps). Backed by a 3-year warranty, the MSI PRO B860M-A WIFI ensures reliability and durability for your professional or gaming setup. Visit Tech Land BD to purchase this feature-rich motherboard and elevate your PC build.


What processors are compatible with the MSI PRO B860M-A WIFI motherboard?

The motherboard supports Intel Core Ultra Processors (Series 2) and is designed for the LGA 1851 socket.


What type of memory does this motherboard support, and what is its maximum capacity?

It supports DDR5 UDIMM memory with a maximum capacity of 256GB and speeds ranging from 4800 MT/s (JEDEC) to 8600 MT/s (overclocked), with Intel® XMP 3.0 support for enhanced performance.


Does the motherboard support Wi-Fi 7, and what are its networking capabilities?

Yes, it features Intel Wi-Fi 7 with support for 2.4GHz, 5GHz, and 6GHz bands, offering speeds up to 5.8Gbps, along with a Realtek 8126 5Gbps LAN port.

REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
1
Total Reviews
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
Minar khan

The LGA1851 platform works smoothly with my Intel setup. The motherboard feels stable and offers useful connectivity.

29 July, 2026

What is the MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard Price in Bangladesh 2026 ?

The MSI PRO B860M-A WIFI Price in BD is 25,500৳ . This MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI PRO B860M-A WIFI by 25,500৳ and its regular price is 27,800৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
