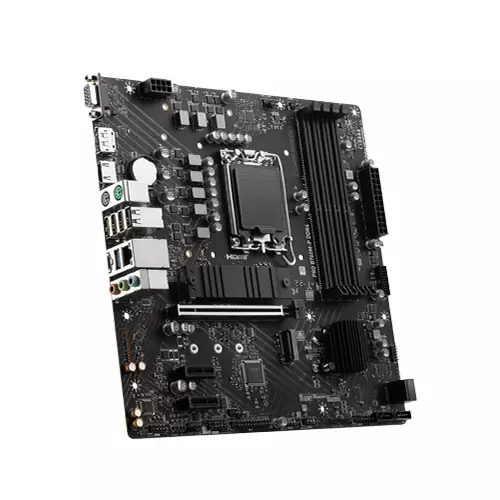

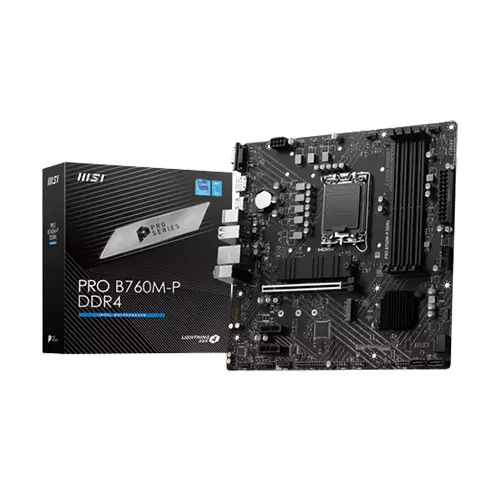

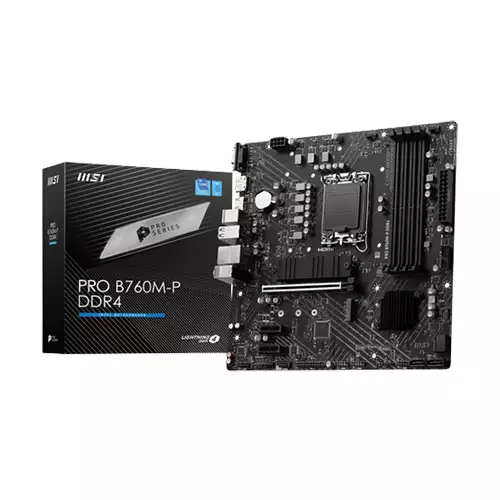

MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD
MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD
MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD - 1
MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD - 2

MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0402506165
Brand : MSI
Model : PRO B760M-P DDR4
Warranty : 3 years
  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 4800(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
  • Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN

Product Pricing

Discount Price

৳15,300 ৳17,400
+ Available Payment Method

EMI Start From*

৳539

SPECIFICATIONS

Processor

Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA 1700

Mainboard

Chipset INTEL B760

Memory

Memory 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/
3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/
2400(JEDEC)/ 2133(JEDEC)


Max. overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz

• 1DPC 2R Max speed up to 4600+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz



Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

Storage

Supported Storage 2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242
devices

4x SATA 6G port

Graphics

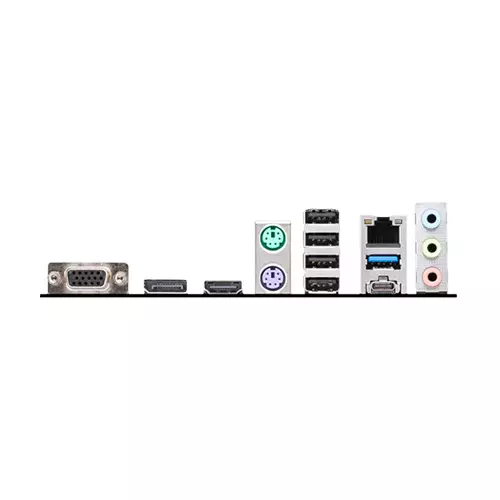

Graphics 1x HDMI

1x DisplayPort

1x VGA

Support HDMI 1.4, maximum resolution of 4K 30Hz

Support DP 1.4, maximum resolution of 4K 60Hz

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Networking & Connectivity

LAN Realtek® RTL8111H Gigabit LAN

Audio & Microphone

Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Ports

Slots 1x PCI-E x16 slot (Qty)

2x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Internal I/O Ports 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)r>
1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

4x USB 2.0

2x USB 3.2 Gen1 Type A
HDMI 1x HDMI

Physical Specification

Form Factor mATX

243.84mmx243.84mm

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD

The MSI PRO B760M-P is a micro ATX motherboard that is compatible with both 13th and 12th-generation Intel Core processors. It supports DDR4 memory and has a range of features including USB 3.2 Gen 2 ports, Intel Ethernet, and MSI's own software utilities for overclocking and system tuning. It is aimed at business and professional users looking for a reliable and stable motherboard for their system builds. The MSI PRO B760M-P DDR4 is a micro ATX motherboard that supports 13th and 12th-generation Intel Core processors. It has four DDR4 memory slots, allowing for a maximum memory capacity of up to 128GB. The board also features 2 x PCIe 4.0 x16 slots, 4 x USB 3.2 Gen 2 ports, 2 x USB 3.2 Gen 1 ports, 1 x HDMI port, 1 x DisplayPort, 1 x LAN (RJ45) port, 1 x audio jack and 1 x optical S/PDIF OUT connector. Additionally, it has MSI's own software utilities for overclocking and system tuning and is targeted at business and professional users.

Premium Warm Arrangement
The MSI Star PRO B760M-P DDR4 Motherboard highlights Broadened Heatsink Plan and M.2 Safeguard Frozr and is intended for superior execution frameworks and constant activity. This motherboard's expanded cooling abilities will keep your parts working at ideal temperatures. M.2 Safeguard Frozr, Completely Fan Control, Frozr simulated intelligence Cooling, and Framework Cooling all work together to keep your parts cool even while under high loads while gaming or creating content.

Great PCB for Upgraded Insurance
The MSI Ace PRO B760M-P DDR4 thirteenth Gen Motherboard highlights a PCB streamlined for higher transfer speed and quicker move speeds, as well as solid circuit transmission with 2oz thickened copper that permits the motherboard to handily endure overclocking while at the same time further developing intensity scattering and framework dependability. The MSI PCI Express Steel Protective layer space is patched to the motherboard to deal with the heaviness of enormous designs cards and stay away from GPU hang, which can harm PCIe openings. The establishing layer around the mounting openings is multiplied for twofold ESD assurance, forestalling static release spikes from harming the motherboard.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD Price in Bangladesh 2026 ?

The MSI PRO B760M-P DDR4 Price in BD is 15,300৳ . This MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI PRO B760M-P DDR4 by 15,300৳ and its regular price is 17,400৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
