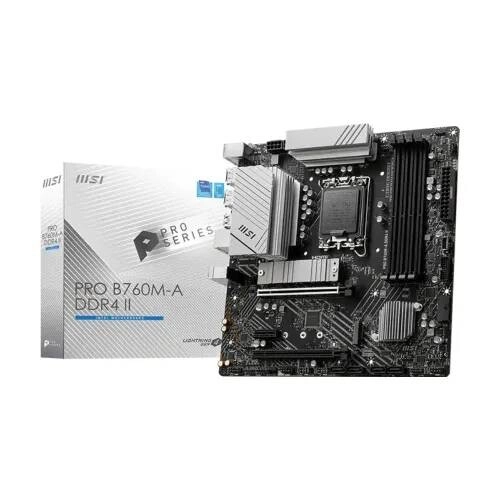

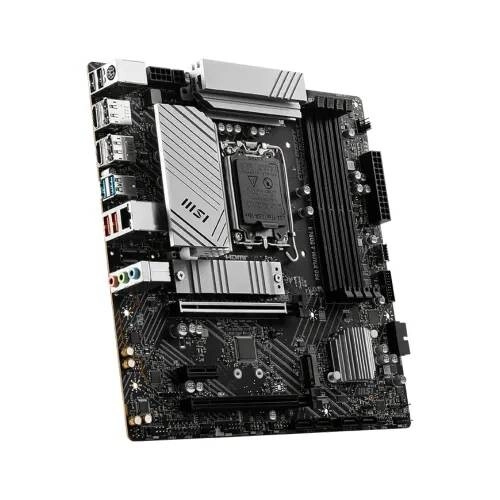

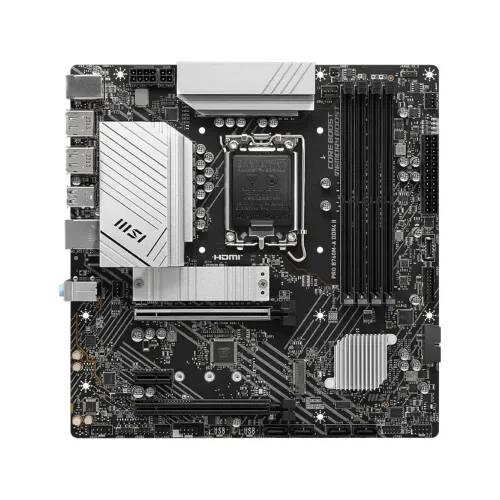

MSI PRO B760M-A DDR4 II mATX Motherboard
- CPU Support: 14th, 13th & 12th Gen Intel Processors
- RAM Support: 4× DDR4, Up to 128GB, 5333MHz (OC)
- Graphics Output: 2× HDMI 2.1, 2× DisplayPort 1.4
- Expansion: 2× M.2 Slots
SPECIFICATIONS
Processor
Intel Core 14th/13th/12th Gen, Intel Pentium Gold & Celeron, LGA 1700
Intel B760
Mainboard
MSI BIOS / UEFI
Memory
4× DDR4 DIMM, Up to 128GB, Up to 5333MHz (OC), Dual-Channel
Storage
RAID 0, 1, 5, 10 (SATA)
2× M.2 PCIe 4.0 x4, 4× SATA 6Gb/s
Graphics
2× HDMI 2.1, 2× DisplayPort 1.4, Up to 4K 60Hz
Networking & Connectivity
Realtek RTL8125BG 2.5G LAN
Audio & Microphone
7.1-Channel HD Audio
Realtek ALC897 Codec
Realtek ALC897
Ports
2× PCIe x16, 1× PCIe x1
USB headers, Fan headers, RGB/ARGB, TPM, Front Audio, Front Panel

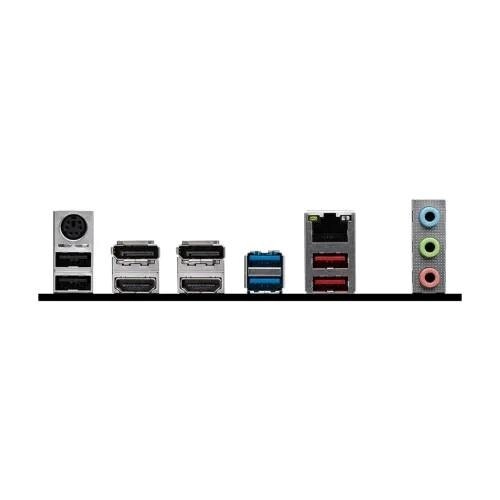

USB, HDMI, DisplayPort, LAN, Audio
USB 2.0, USB 5Gbps Type-A, USB 5Gbps Type-C, USB 10Gbps Type-A
2× HDMI 2.1
Software
MSI Software
Windows 10 64-bit / Windows 11 64-bit
MSI Utilities & System Management
Special Features
RGB & Addressable RGB Support
EZ Debug LED, XMP Support, TPM 2.0, Dual-Channel Memory
Physical Specification
Micro ATX
PCB / Electronic Components
243.84 × 243.84 mm
Technical Info
Windows 10 64-bit / Windows 11 64-bit
Warranty Information
3 Years
DESCRIPTION
MSI PRO B760M-A DDR4 II mATX Motherboard
The MSI PRO B760M-A DDR4 II mATX Motherboard is a reliable and feature-rich motherboard designed for modern Intel desktop PC builds. Supporting 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket, it offers a solid platform for productivity, gaming, office work, and everyday computing. The motherboard supports DDR4 memory with four DIMM slots and up to 128GB RAM, with memory speeds of up to 5333MHz through overclocking (OC). This provides flexibility for users who want to build a responsive and upgradeable PC. For storage, the MSI PRO B760M-A DDR4 II comes with 2 M.2 slots, allowing users to install fast NVMe SSDs for quicker boot times and application loading. It also features multiple display outputs, including 2× HDMI 2.1 and 2× DisplayPort 1.4, making it suitable for compatible multi-display setups. For fast wired networking, the motherboard includes Realtek RTL8125BG 2.5G LAN, providing high-speed Ethernet connectivity for gaming, file transfers, streaming, and productivity. Its micro-ATX (mATX) form factor makes it a practical choice for compact and mid-sized PC builds.
Why Buy from Tech Land BD?
Looking to buy the MSI PRO B760M-A DDR4 II Motherboard in Bangladesh? Tech Land BD is a convenient destination for genuine computer components and PC hardware. Before ordering, check the latest price, stock availability, and current offers. This MSI motherboard is a strong choice for users planning an Intel-based DDR4 PC build with modern connectivity and upgrade options.
Which processors are supported?
It supports 14th, 13th, and 12th Gen Intel processors using the LGA1700 socket.
How much RAM does it support?
It supports up to 128GB DDR4 RAM across four DIMM slots.
Does it support M.2 SSDs?
Yes, it features 2 M.2 slots.
Does it have 2.5G LAN?
Yes, it includes Realtek RTL8125BG 2.5G LAN.
What is the motherboard form factor?
It uses the compact micro-ATX (mATX) form factor.
