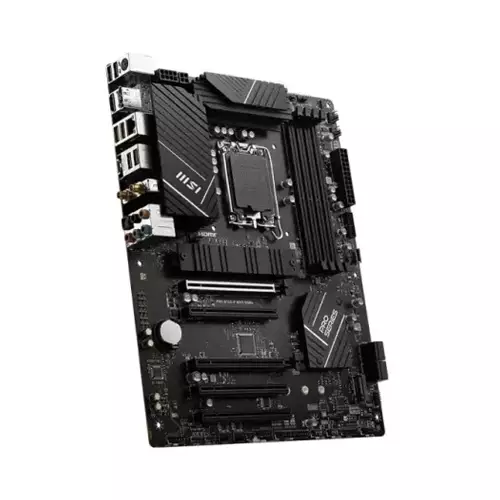

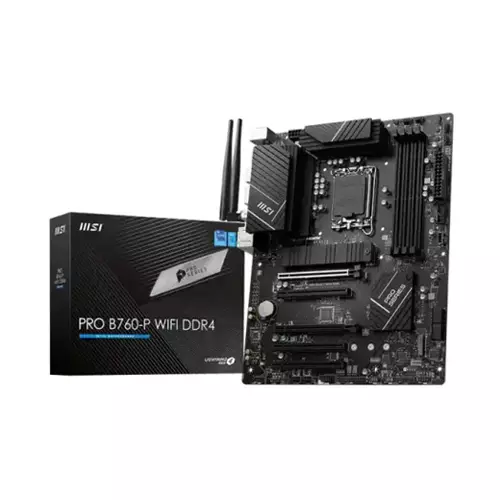

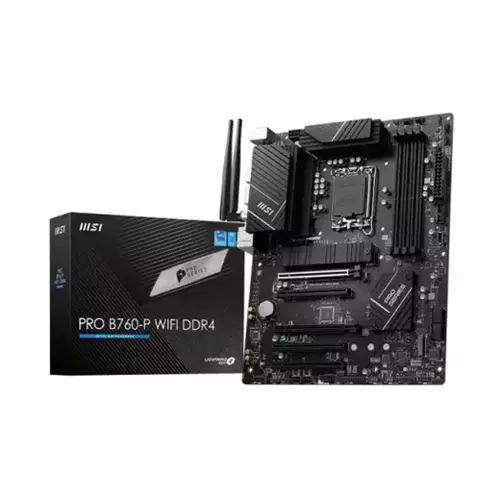

MSI PRO B760-P WIFI DDR4 13TH GEN & 12TH GEN ATX MOTHERBOARD
- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2 slot, Intel Wi-Fi 6E, Bluetooth 5.3
Product Pricing
EMI Start From*
৳764
SPECIFICATIONS
Processor
Supported CPU
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
LGA 1700
Mainboard
Chipset
INTEL B760
Memory
Memory
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/
4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/
2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/
4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/
2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Storage
Supported Storage
2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
Graphics
Graphics
1x HDMI
1x DisplayPort
Support HDMI 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 4K 60Hz
1x DisplayPort
Support HDMI 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 4K 60Hz
Networking & Connectivity
LAN
Realtek RTL8125BG 2.5G LAN
WiFi
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth
Bluetooth 5.3
Audio & Microphone
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
7.1-Channel High Definition Audio
Ports
Slots
4
Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C

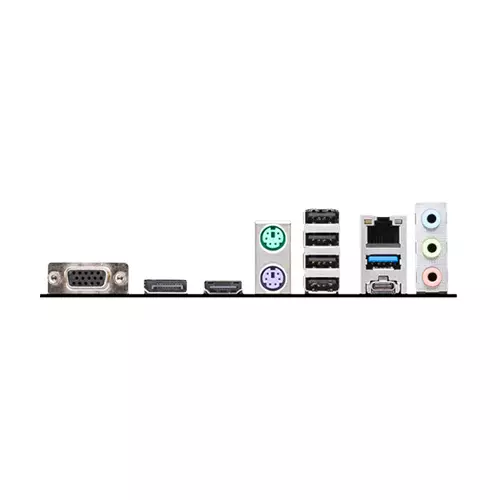

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
HDMI
1x HDMI
Others
Other Features
Maximum Memory: 128GB
Physical Specification
Form Factor
MATX
243.84mmx243.84mm
243.84mmx243.84mm
Warranty Information
Warranty
3 years
DESCRIPTION
MSI PRO B760-P WIFI DDR4 13TH GEN & 12TH GEN ATX MOTHERBOARD
The MSI PRO B760-P WIFI is a motherboard designed for use with the 13th and 12th generation Intel processors, and supports DDR4 memory. It features built-in Wi-Fi and has an ATX form factor. The B760 chipset offers support for a wide range of features, including USB 3.2, PCIe 4.0, and SATA III. It also has a number of expansion slots and ports, including support for USB 3.2 Gen 2x2, PCIe 4.0 and Thunderbolt 3, which allows for high-speed data transfer and connectivity with a wide range of devices. This motherboard is suitable for professional and business applications.
Improved Power Plan
MSI Master B760-P WIFI DDR4 motherboard is intended for gamers and devotees, with a 12+1 Two part harmony Rail Power Framework with P-PAK, 8-pin + 4-pin computer chip power connectors, Center Lift, Memory Lift innovation, which helps the exhibition of your multi-center Intel processor. Overclock your computer chip easily because of MSI Game Lift innovation, which considers 1-second fast overclocking. The Advanced Power Plan, Overvoltage Assurance, Burden Line Alignment, Twofold Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to give appropriate electrical administration through your framework to settle your framework, particularly under high loads.
Premium Warm Arrangement
The MSI Master B760-P WIFI DDR4 Motherboard highlights Broadened Heatsink Plan and M.2 Safeguard Frozr and is intended for elite execution frameworks and consistent activity. This motherboard's expanded cooling abilities will keep your parts working at ideal temperatures. M.2 Safeguard Frozr, Completely Fan Control, Frozr simulated intelligence Cooling, and Framework Cooling all work together to keep your parts cool even while under high loads while gaming or producing content.
Top notch PCB for Upgraded Insurance
The MSI Master B760-P WIFI DDR4 thirteenth Gen Motherboard highlights a PCB streamlined for higher data transmission and quicker move speeds, as well as solid circuit transmission with 2oz thickened copper that permits the motherboard to effortlessly endure overclocking while at the same time further developing intensity dissemination and framework dependability. The MSI PCI Express Steel Defensive layer opening is fastened to the motherboard to deal with the heaviness of enormous illustrations cards and keep away from GPU hang, which can harm PCIe spaces. The establishing layer around the mounting openings is multiplied for twofold ESD assurance, forestalling static release spikes from harming the motherboard.
