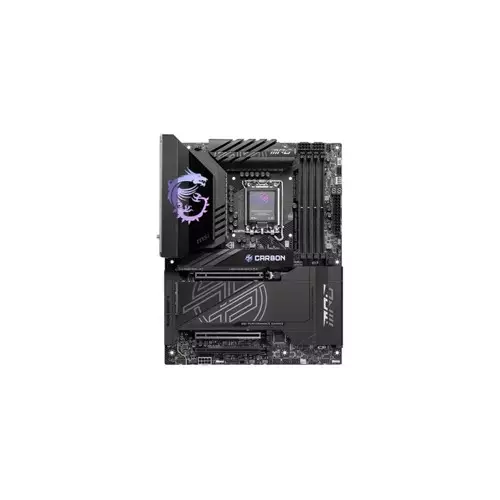

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard
- Chipset INTEL Z890
- Form Factor ATX
- Socket LGA 1851
- Supports Intel Core Ultra Processors
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Mainboard
Memory
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G
Networking & Connectivity
1x Intel® I226V 2.5G LAN
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Audio & Microphone
7.1-Channel USB High Defination Audio
Supports S/PDIF output
Ports
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Thundebolt™ 4 ports supporting DisplayPort 1.4 with
HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 supports BIOS adjustment to x8+x4+x4*
• PCI_E2 supports BIOS adjustment to x4+x4*
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)

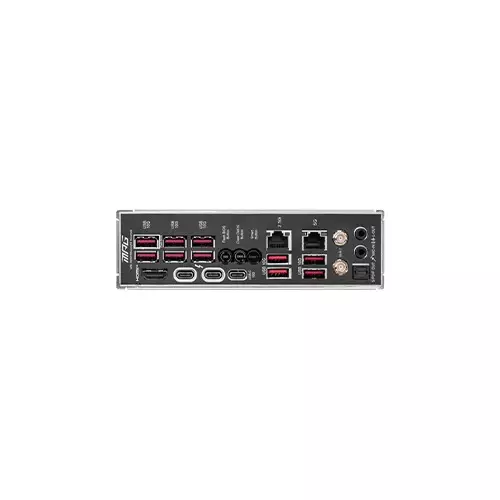

4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
4x USB 5Gbps Type A (Front)
10x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
Physical Specification
Warranty Information
DESCRIPTION
MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard in Bangladesh
The MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard is a high-performance motherboard designed to support Intel's latest Core Ultra processors, providing cutting-edge technology for gamers and PC enthusiasts alike. With a robust build quality and a sleek carbon design, this motherboard not only looks great but also offers excellent functionality. It features five M.2 slots for SSD storage, extensive memory support of up to 256GB DDR5 RAM, and built-in Wi-Fi 7 capabilities, ensuring a top-notch gaming and multitasking experience.
Technical Details
The MSI MPG Z890 CARBON WIFI is equipped with the Intel Z890 chipset, and it utilizes the LGA 1851 socket. It supports up to 256GB of DDR5 UDIMM memory, with overclocking capabilities reaching speeds of 9200 MT/s. The motherboard features five M.2 slots (two from the CPU and three from the chipset) that support a range of NVMe SSDs, alongside four SATA 6G ports for additional storage options. For audio, it comes with the Realtek ALC1220P codec, providing 7.1-channel high-definition audio. Additionally, the motherboard offers robust network capabilities with Intel® Killer™ 5G LAN and integrated Wi-Fi 7, ensuring fast and reliable connectivity for online gaming and streaming.
Availability and Usability
The MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard is now available at Tech Land BD, making it an excellent choice for users looking to upgrade their gaming rigs or build a powerful workstation. Its extensive support for high-speed memory and multiple SSDs allows for unparalleled performance, especially in demanding applications and gaming scenarios. With the MSI MPG Z890 CARBON WIFI Price in BD, customers can take advantage of the latest technology without breaking the bank, making this motherboard a wise investment for both casual and hardcore gamers.
Highlights
- Supports Intel Core Ultra processors for maximum performance.
- Five M.2 slots and four SATA 6G ports for extensive storage options.
- High memory capacity of up to 256GB DDR5 with overclocking capabilities.
- Integrated Intel Killer 5G LAN and Wi-Fi 7 for superior connectivity.
- Sleek carbon design with RGB lighting options for a stunning build.
Upgrade Your Gaming Experience with the MSI MPG Z890 CARBON WIFI from Tech Land BD!
If you're serious about gaming or building a high-performance PC, the MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard is a must-have. With its advanced features and excellent build quality, this motherboard is designed to handle the latest applications and games seamlessly. Don't miss your chance to elevate your setup—check out the MSI MPG Z890 CARBON WIFI Price in Bangladesh at Tech Land BD today and secure your competitive edge in the gaming world!
