MSI (Intel) MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard

MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard

Name: MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard
Brand: MSI
SKU: P00025062869
Price: 4440 BDT
Availability: OutOfStock

0 Reviews

Stock : Discontinued

PID : P00025062869

SKU : MPGZ590JFKF

Brand : MSI

Model : MPG Z590 GAMING CARBON WIFI

Warranty : 4 Years

ATX Form Factor
Intel Z590 Chipset
Socket LGA 1200
Supports 11th Gen Processor

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1200

Mainboard

Chipset Intel Z590 Chipset

Memory

Memory 4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Storage

Supported Storage 6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel CPU
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 & M2_32 slot (From Z590 Chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors

Graphics

Multi-GPU Supports 3-Way AMD CrossFire Technology

Graphics HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN Intel I225V 2.5Gbps LAN controller

WiFi Intel Wi-Fi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E slot
Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.22, FIPS, FISMA

Audio & Microphone

Audio Realtek ALC4080 Codec
7.1-Channel High Definition Audio

Ports

Slots 3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support PCIe 4.0 for 11th Gen Intel CPU
Support PCIe 3.0 for 10th Gen Intel CPU
PCI_E5 slot (From Z590 Chipset)
Supports PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)

Internal I/O Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

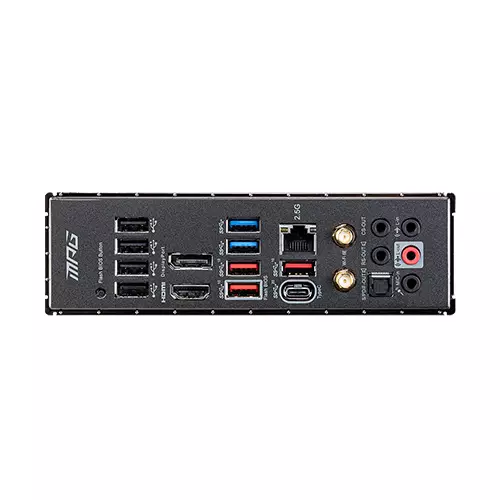

External I/O Ports USB 2.0
DisplayPort
USB 3.2 Gen 1 5Gbps Type-A
2.5G LAN
Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Wi-Fi / Bluetooth
Optical S/PDIF Out

USB Intel Z590 Chipset
1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
Hub-GL850G
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)

HDMI HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Physical Specification

Form Factor ATX

Dimension 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty Information

Warranty 3 Year

DESCRIPTION

MSI MPG Z590 CARBON WiFi Motherboard in Bangladesh

Accelerate gaming performance with the MPG Z590 CARBON WiFi LGA 1200 ATX motherboard from MSI. MSI MPG Z590 CARBON WiFi Motherboard contains the Z590 chipset and is compatible with Intel CPUs via the LGA 1200 socket. MSI MPG Z590 CARBON WiFi Motherboard Supports the 11th and 10th generation Intel Core/Pentium Celeron processors for LGA 1200 sockets. Supports DDR4 memory up to 5333 (OC) MHz. Lightning gaming speeds: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 improved performance design: 16 + 1 + 1 Duet rail power supply network, two 8-pin CPU sockets, Core Boost, DDR4 Boost advanced cooling solution extended heat pipe radiator, 7 W / um MOSFET thermocouple, optional heating throttle valve 3x M.2 Shield Frozr is developed for high-performance systems and the perfect "Mystical Light: 16" game. One key can control 8 million colors/29 effects. MYSTIC LIGHT EXTENSION supports RGB and rainbow LED strips. LAN 5G with LAN Manager and Intel Wi-Fi 6E solution: an extended network solution for professional and multimedia purposes. Fast network connection AUDIO BOOST 5 Brings studio-level sound quality to your ears, allowing you to immerse yourself in the ultimate gaming experience. High-quality PCB: 6-layer PCB made of 2 ounces of copper and server materials. Easier to install audio is processed by the Realtek ALC4080, The MSI MPG Z590 CARBON WiFi LGA 1200 ATX motherboard is compatible with Windows 10 64-bit operating systems.

Related Video:

[product_table id="34" limit="10" type="filter" filter_category="7270"]

REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard Price in Bangladesh 2026 ?

The MSI MPG Z590 GAMING CARBON WIFI Price in BD is 4,440৳ . This MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard Manufacturing by MSI Comes With 4 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MPG Z590 GAMING CARBON WIFI by 4,440৳ and its regular price is 55,550৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
