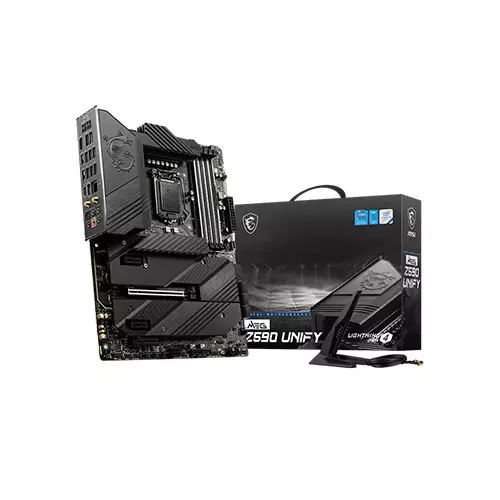

MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard
MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard

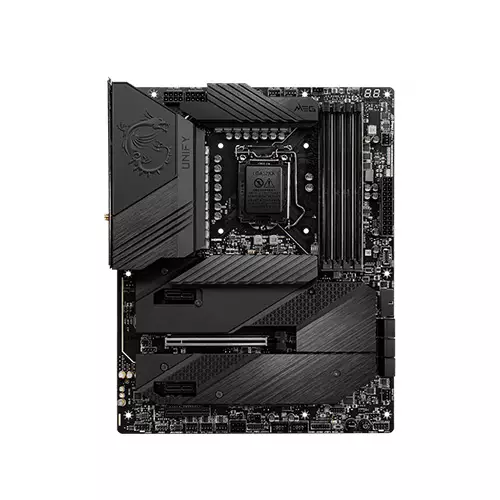

MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard - 1
MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard - 2

MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard

0 Reviews
Stock : Out of Stock
PID : P0402506052
SKU : YRGFODYHBLDHJDJ
Brand : MSI
Model : MEG Z590 UNIFY
Warranty : 3 years
  • ATX Form Factor
  • Intel Z590 Chipset
  • Socket LGA 1200
  • Supports 11th Gen Processor

Product Pricing

Discount Price

৳22,500 ৳23,000
+ Available Payment Method

EMI Start From*

৳792

SPECIFICATIONS

Processor

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Processor socket LGA1200

Mainboard

Chipset Intel Z590 Chipset

Memory

Memory 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Storage

Supported Storage 6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32 slots
Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)3
Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)4
M2_2 supports 2242/ 2260/ 2280 storage devices
M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
M2_4 slot (from Z590 chipset) 3 5
Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.PCIe 4.0 specification is available only on 11th Gen Intel CPU

Graphics

Multi-GPU Supports 2-Way AMD CrossFire Technology
Graphics HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN Intel I225-V 2.5Gbps LAN controller
WiFi Intel WiFi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.22, FIPS, FISMA

Audio & Microphone

Audio Realtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Ports

Slots 1x PCIe x16 slot (PCI_E2, from CPU)
Supports up to PCIe 4.0 x16 with11th Gen CPU1
Supports up to PCIe 3.0 x16 with10th Gen CPU1
1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)2
2x PCIe 3.0 x1 slots (from Z590 chipset)
Internal I/O Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 2-pin Thermal Sensors connector
1xTPM module connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)

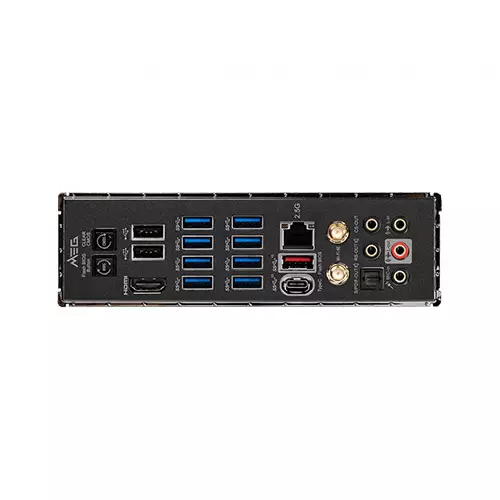

External I/O Ports Clear CMOS Button
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out
USB Intel Z590 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector)
10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector)
2x USB 2.0 ports on the back panel
Hub-GL850G
4x USB 2.0 ports through internal USB 2.0 connector

Physical Specification

Form Factor ATX Form Factor

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard

Supports Intel Core  / Pentium Celeron processors of the 11th and 10th generation for LGA 1200 socket. Supports DDR4 memory, up to 5600 (OC) MHz.The MSI MEG Z590 UNIFY LGA 1200 ATX motherboard is based on the Intel Z590 chipset and supports Intel Core and Pentium Gold / Celeron processors of the 11th generation with an LGA 1200 socket. MSI MEG Z590 UNIFY motherboard has four memory slots for up to 128 GB DDR4 RAM can be overclocked up to 4800 MHz.MSI MEG Z590 UNIFY Motherboard is equipped with six SATA III ports and Four M.2 slots for storage. There are three PCIe 3.0 x16 slots for graphics cards and two PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated functions are Realtek I225V 2.5 GbE, Intel I225V Gigabit Ethernet, Intel AX210 Wi-Fi 6, Bluetooth 5.0, and Realtek ALC4082 7.Audio HD de 1 channel.

Dual Thunderbolt 4 ports

MSI MEG Z590 UNIFY Motherboard Thunderbolt USB-C at real 40 Gbit / s speeds, 8K display support, daisy-chaining, and multi-port accessory architecture provide reliable connectivity and a better user experience.

Quad M.2 ports

MSI MEG Z590 UNIFY Motherboard 4 built-in M.2 ports for maximum storage performance with a Lightning Gen 4 solution. The Shield Frozr design holds M.2 SSDs securely and without throttling so they run faster.

Extreme performance design

INTERSIL Digital PWM, 16 + 2 + 1 phase with 90 A Smart Power Stage, two CPU power connections, and a unique mirror power supply to unleash the true power of your processors. MSI MEG Z590 UNIFY Motherboard Aluminum cover, VRM heat pipe, 7W / mK heating pad, M.2 Shield Frozr, and the aluminum backplate ensure extremely low temperatures. MSI MEG Z590 UNIFY Motherboard One key with multiple hardware controls. Reset computer control functions, safe start, turbofan, and EZ-LED with just one click 8-layer circuit board with 2 oz.

Audio Boost

The MSI MEG Z590 UNIFY Motherboard ultimate audio solution with the latest premium audio processor ALC4082, combining ESS audio DAC and amplifier, offers an immersive experience.

Wi-Fi 6 (802.11ax)

Wi-Fi 6 (802.11ax) is the next-gen Wi-Fi standard, improving a variety of features including data rates, capacity, performance in dense environments, and power efficiency.


[product_table id="34" limit="10" type="filter" filter_category="6136"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard Price in Bangladesh 2026 ?

The MSI MEG Z590 UNIFY Price in BD is 22,500৳ . This MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MEG Z590 UNIFY by 22,500৳ and its regular price is 23,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
