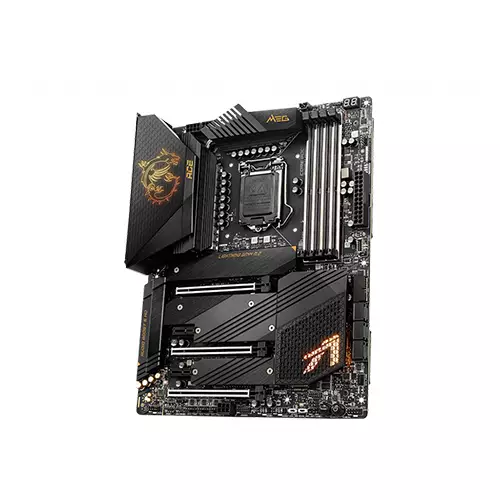

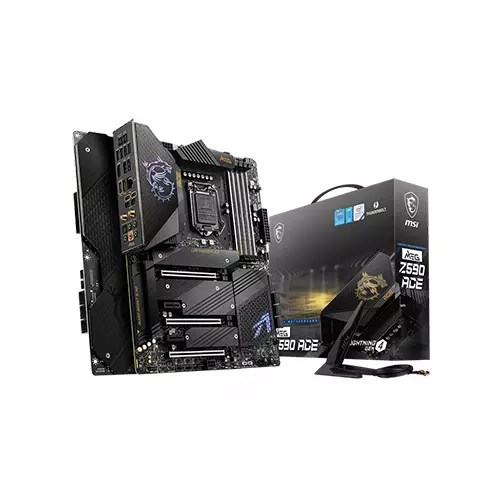

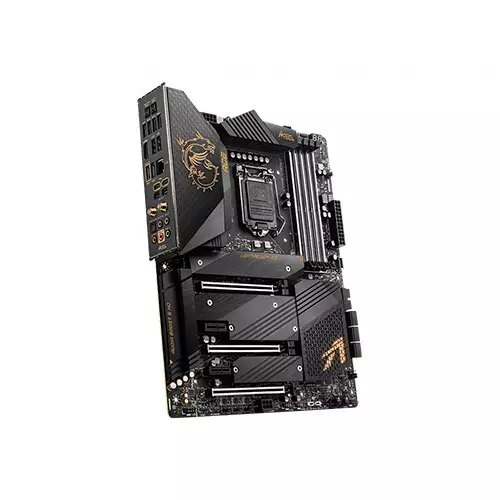

MSI MEG Z590 ACE 10th Gen And 11th Gen ATX WIFI Motherboard
- ATX Form Factor
- Intel Z590 Chipset
- Socket LGA 1200
- Supports 11th Gen Processor
EMI Start From*
SPECIFICATIONS
Processor
Processor socket LGA1200
Mainboard
Memory
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Storage
4x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32, M2_4 slots (from Z590 chipset)
M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x43
M2_2 & M2_3 support up to SATA 6Gb/s
M2_4 slot supports PCIe only.
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready4
Supports Intel Smart Response Technology for Intel Core processors
Graphics
Supports 3-Way AMD CrossFire Technology
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.22, FIPS, FISMA
Audio & Microphone
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E5 slot (From Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 chipset)
2x 8-pin ATX 12V power connectors
1x 6-pin PCI-E power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector

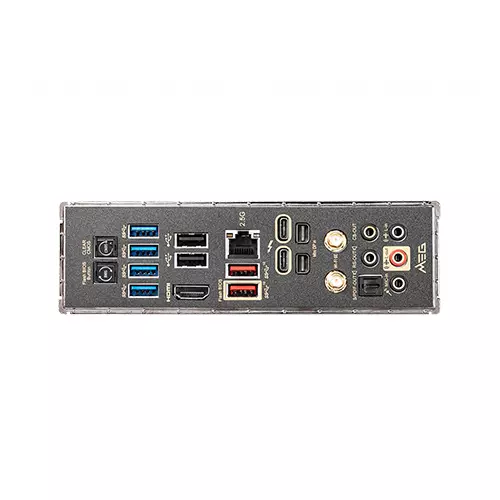

USB 3.2 Gen1 5Gbps (Type-A)
USB 2.0
2.5G LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
2x USB 2.0 Type-A ports on the back panel
Hub-GL850G
4x USB 2.0 ports through internal USB connectors
Physical Specification
Warranty Information
DESCRIPTION
MSI MEG Z590 ACE 10th Gen And 11th Gen ATX WIFI Motherboard
Supports Intel Core / Pentium Celeron processors of the 11th and 10th generation for LGA 1200 socket. Supports DDR4 memory, up to 5600 (OC) MHz.The MSI MEG Z590 ACE LGA 1200 ATX motherboard is based on the Intel Z590 chipset and supports Intel Core and Pentium Gold / Celeron processors of the 11th generation with an LGA 1200 socket. MSI MEG Z590 ACE Motherboard has four memory slots for up to 128 GB DDR4 RAM can be overclocked up to 4800 MHz.MSI MEG Z590 ACE Motherboard is equipped with six SATA III ports and Four M.2 slots for storage. There are three PCIe 3.0 x16 slots for graphics cards and two PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated functions are Realtek I225V 2.5 GbE, Intel I225V Gigabit Ethernet, Intel AX210 Wi-Fi 6, Bluetooth 5.0, and Realtek ALC4082 7.Audio HD de 1 channel.
Dual Thunderbolt 4 ports
MSI MEG Z590 ACE Motherboard Thunderbolt USB-C at real 40 Gbit / s speeds, 8K display support, daisy-chaining, and multi-port accessory architecture provide reliable connectivity and a better user experience.
Quad M.2 ports
MSI MEG Z590 ACE Motherboard 4 built-in M.2 ports for maximum storage performance with a Lightning Gen 4 solution. The Shield Frozr design holds M.2 SSDs securely and without throttling so they run faster.
Extreme performance design
INTERSIL Digital PWM, 16 + 2 + 1 phase with 90 A Smart Power Stage, two CPU power connections, and a unique mirror power supply to unleash the true power of your processors. MSI MEG Z590 ACE Motherboard Aluminum cover, VRM heat pipe, 7W / mK heating pad, M.2 Shield Frozr, and the aluminum backplate ensure extremely low temperatures. MSI MEG Z590 ACE Motherboard One key with multiple hardware controls. Reset computer control functions, safe start, turbofan, and EZ-LED with just one click 8-layer circuit board with 2 oz.
Audio Boost
The MSI MEG Z590 ACE Motherboard ultimate audio solution with the latest premium audio processor ALC4082, combining ESS audio DAC and amplifier, offers an immersive experience.
