MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD
MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD
MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD - 2
MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD - 3
MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD - 4

MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0402506130
SKU : MAG-Z690M-MORTAR-WIFI
Brand : MSI
Model : MAG Z690M MORTAR WIFI
Warranty : 3 year
  • Intel Z690 Chipset
  • 4x DDR5 memory slots
  • Intel Wi-Fi 6E
  • Micro-ATX Form Factor

Product Pricing

Discount Price

৳25,500 ৳26,000
+ Available Payment Method

EMI Start From*

৳898

SPECIFICATIONS

Processor

Supported CPU Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors

Processor socket LGA1700

Mainboard

Chipset Intel Z690 Chipset

Memory

Memory 4x DDR5 memory slots, support up to 128GB

Supports 1R 4800 MHz (by JEDEC & POR)

Max. overclocking frequency:

1DPC 1R Max speed up to 6200+ MHz

1DPC 2R Max speed up to 5200+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Storage

Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset)

2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

2x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From Z690 Chipset)

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel® Optane™ Memory

Graphics

Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN 1x Realtek® 8125BG 2.5Gbps LAN controller
WiFi The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz

(160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Supports Bluetooth® 5.2 , FIPS, FISMA

Audio & Microphone

Audio Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Ports

Slots 2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 4.0 x16

PCI_E3 slot (From Z690 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot
Internal I/O Ports 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connector

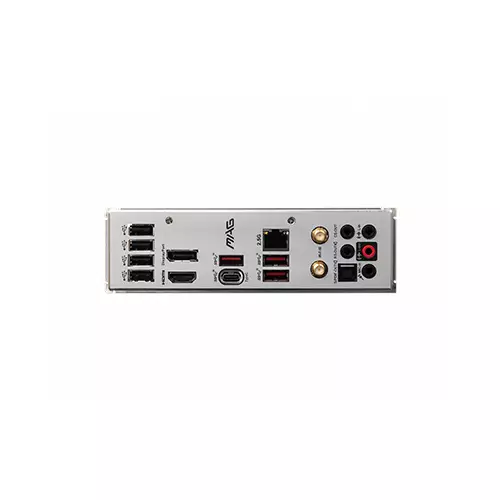

External I/O Ports USB 2.0 Port

DisplayPort 1.4

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT
USB 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel

1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector

2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

4x USB 2.0 ports on the back panel


USB Hub-GL3590

3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

Physical Specification

Form Factor Micro-ATX Form Factor
Dimension 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Warranty Information

Warranty 3 years

DESCRIPTION

MSI MAG Z690M MORTAR WIFI Motherboard in Bangladesh

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

LIGHTNING GEN 4 M.2

Utilizing 12th Gen Intel processors, MSI Z690 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Features

  • Supports 12th Gen Intel Core, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6200+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire
